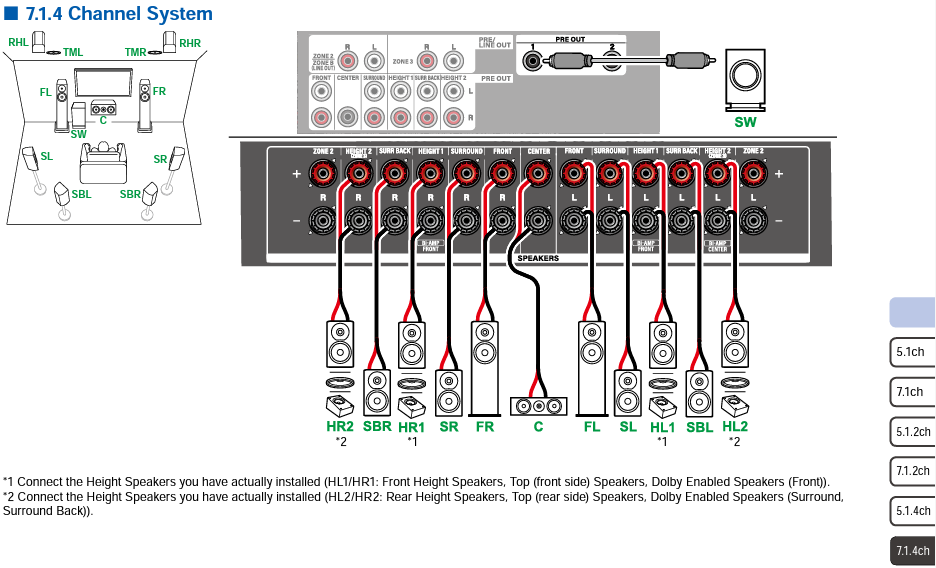

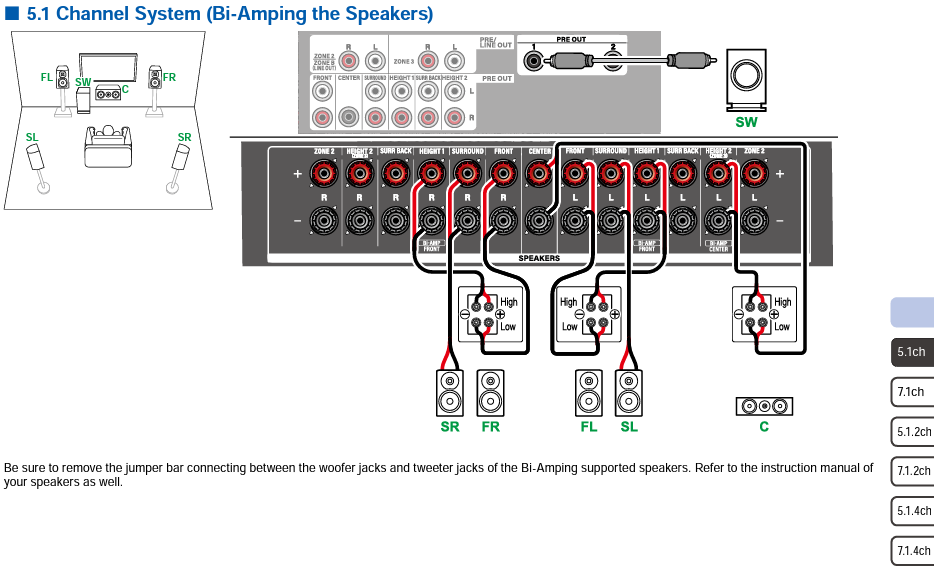

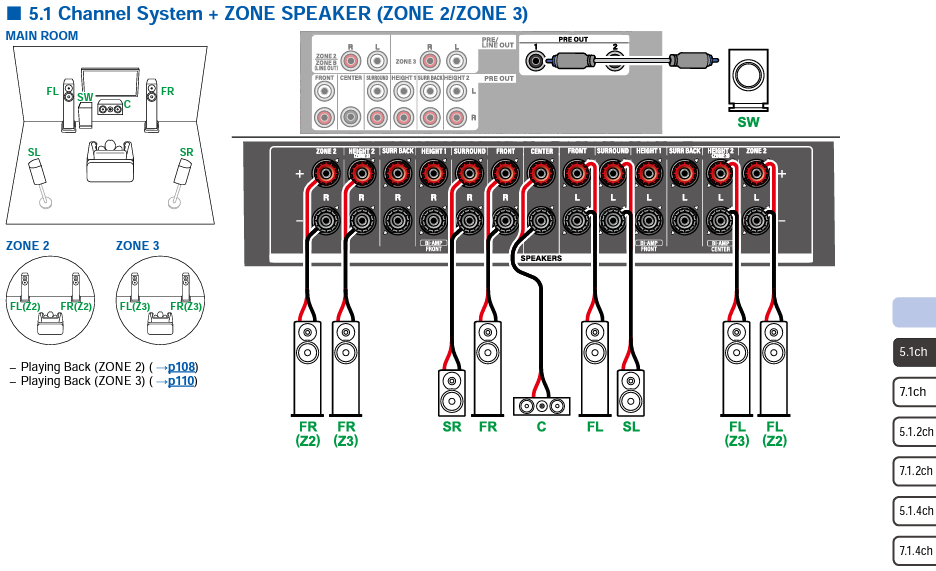

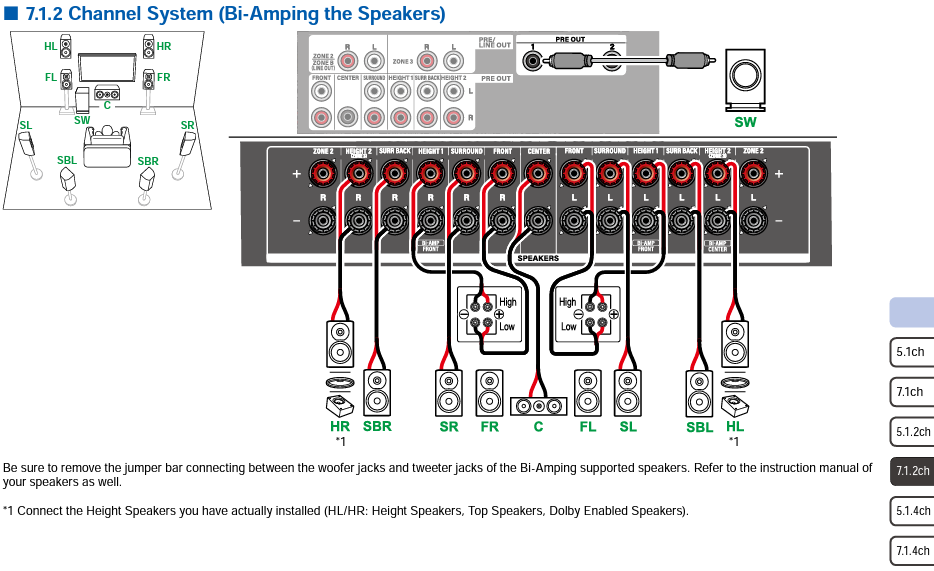

TX-RZ70 - Speaker Connections

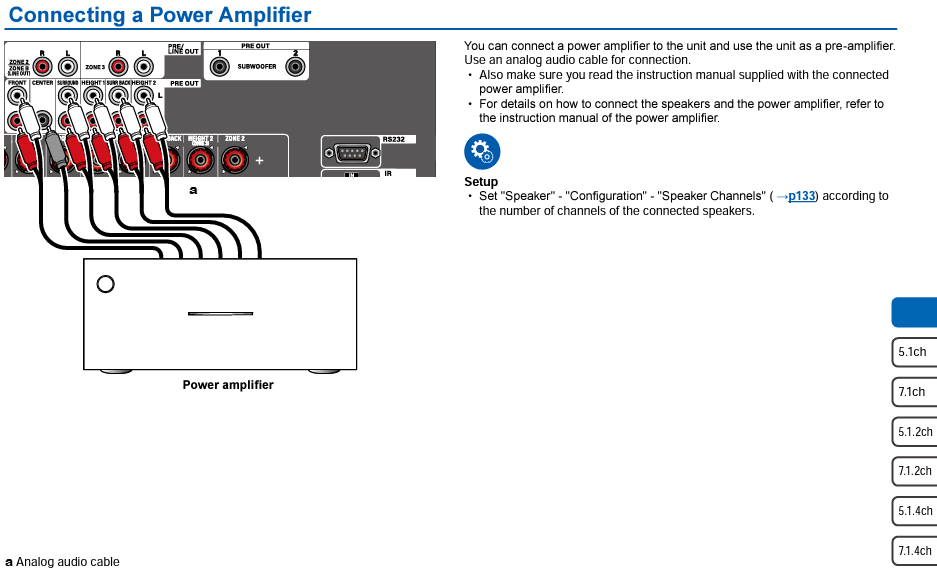

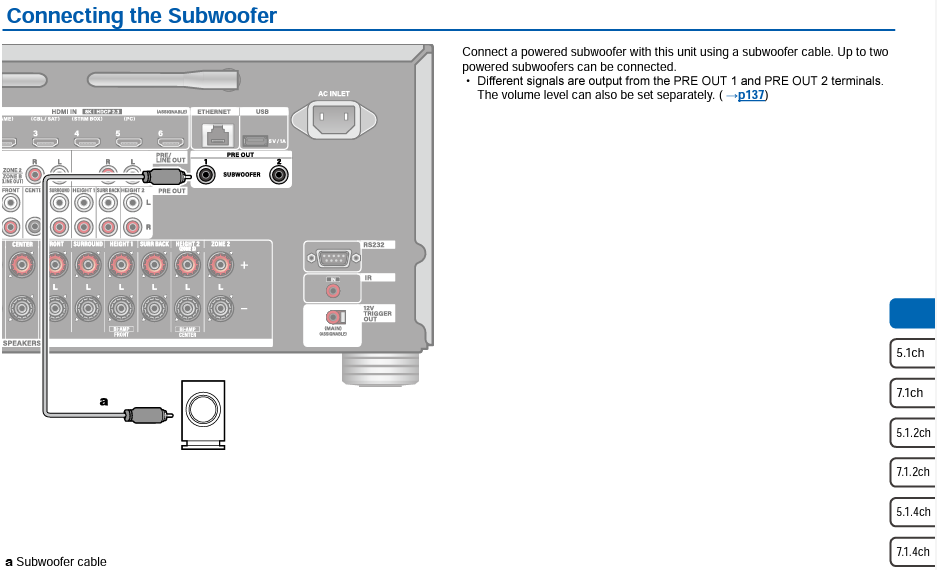

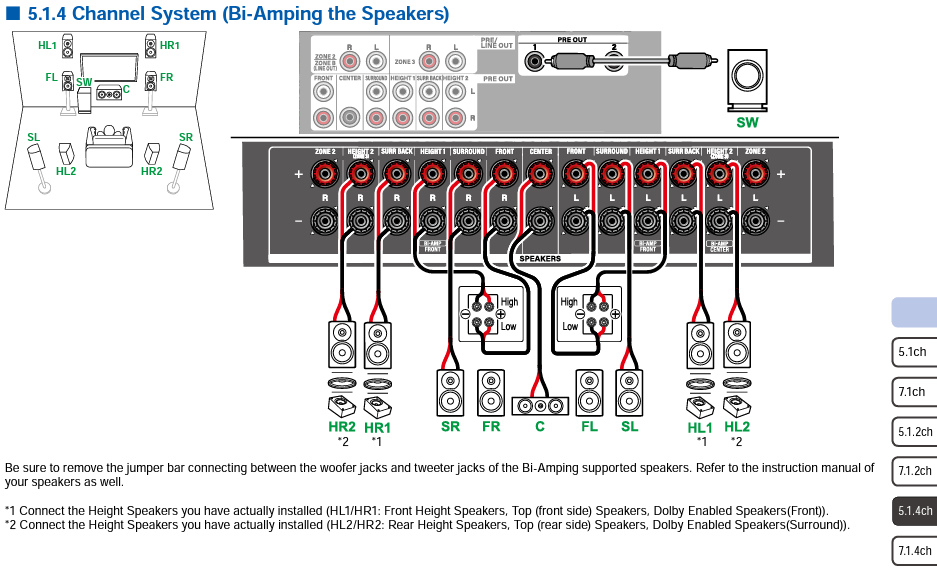

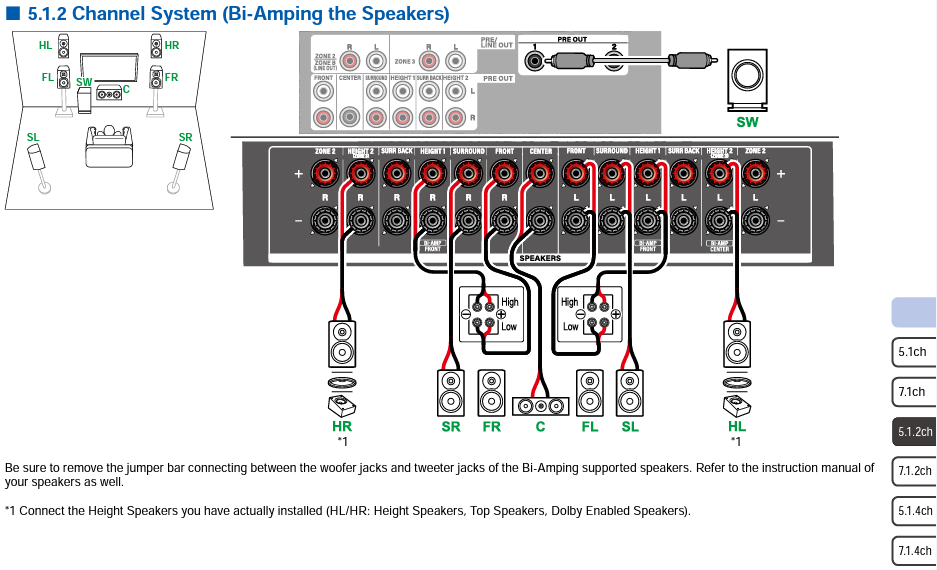

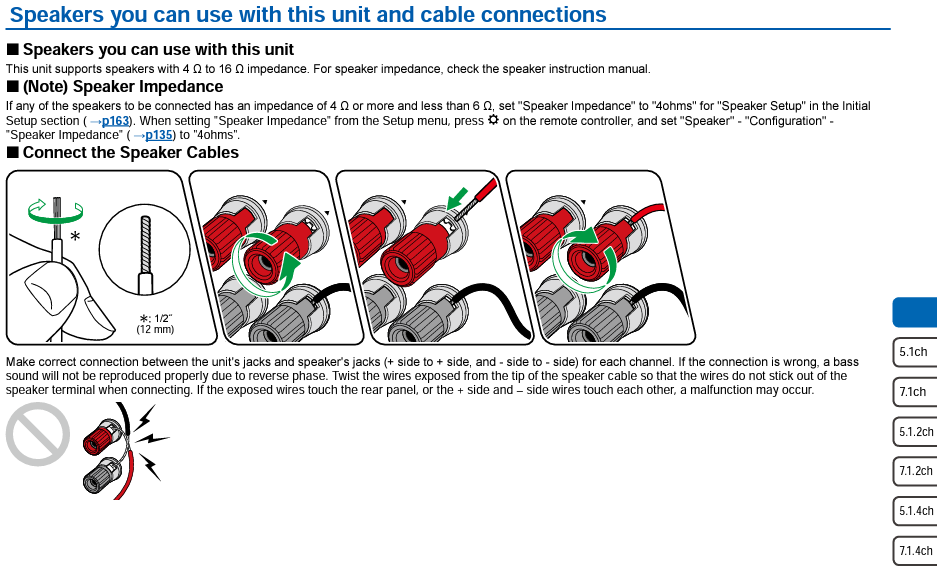

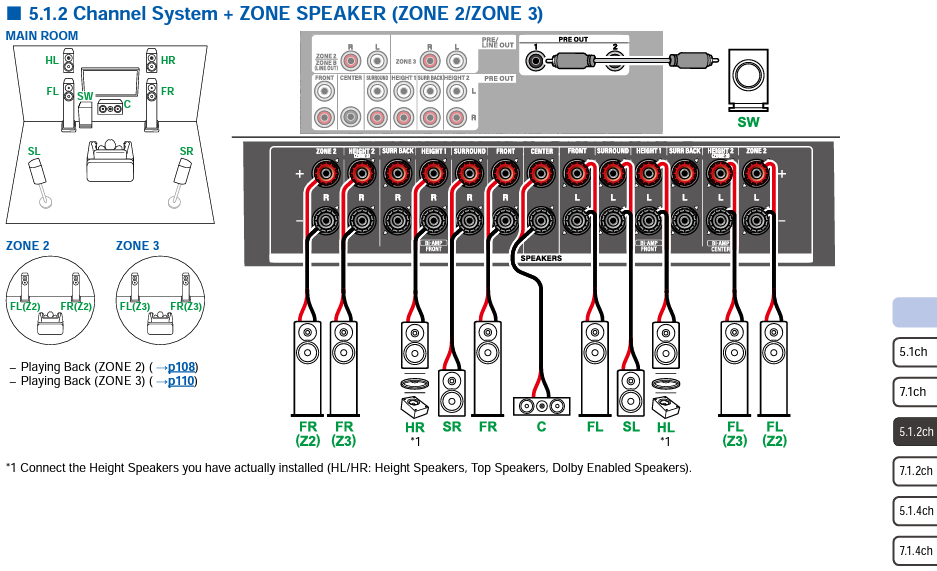

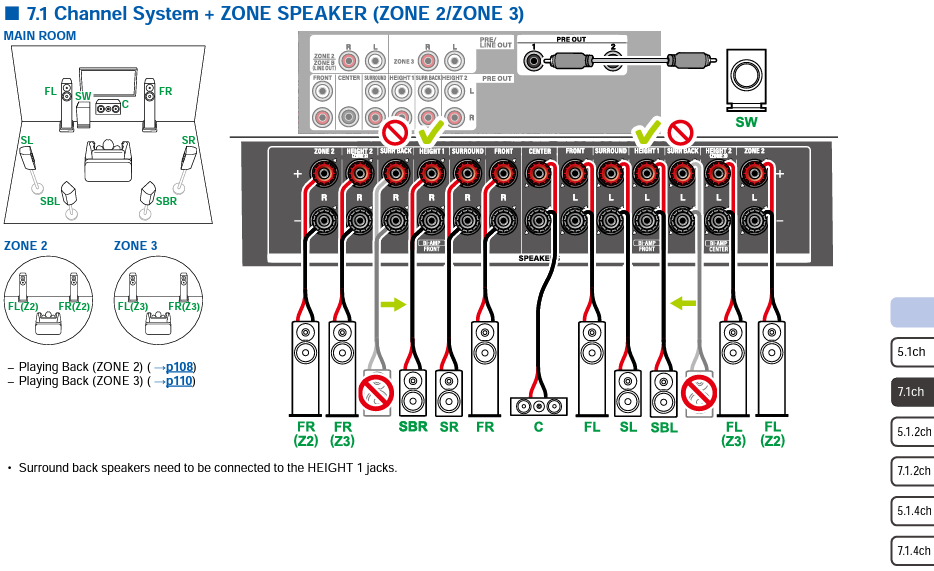

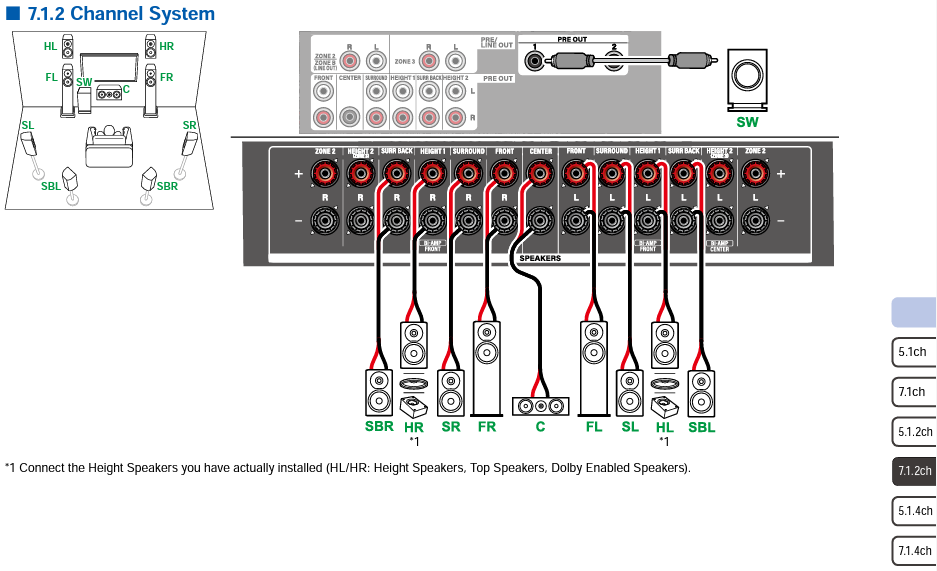

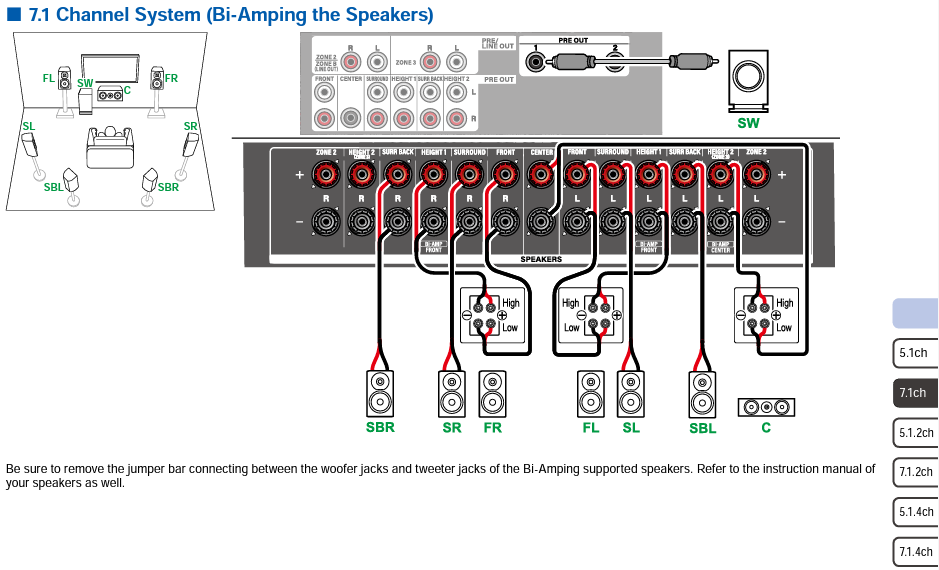

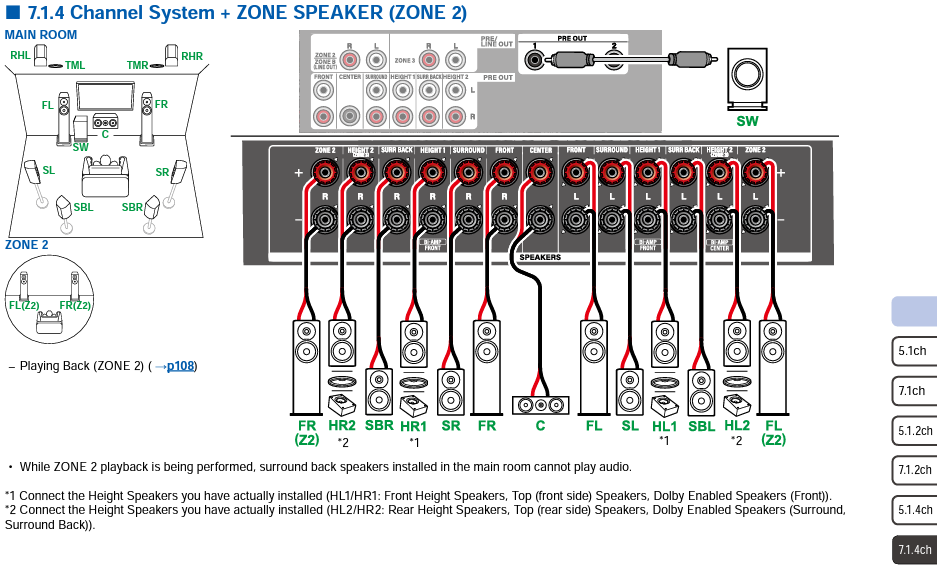

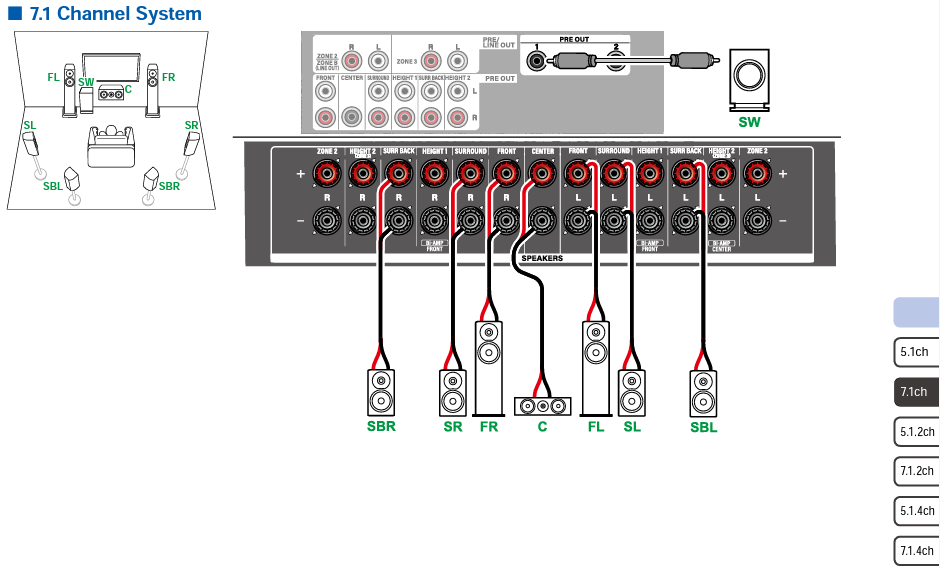

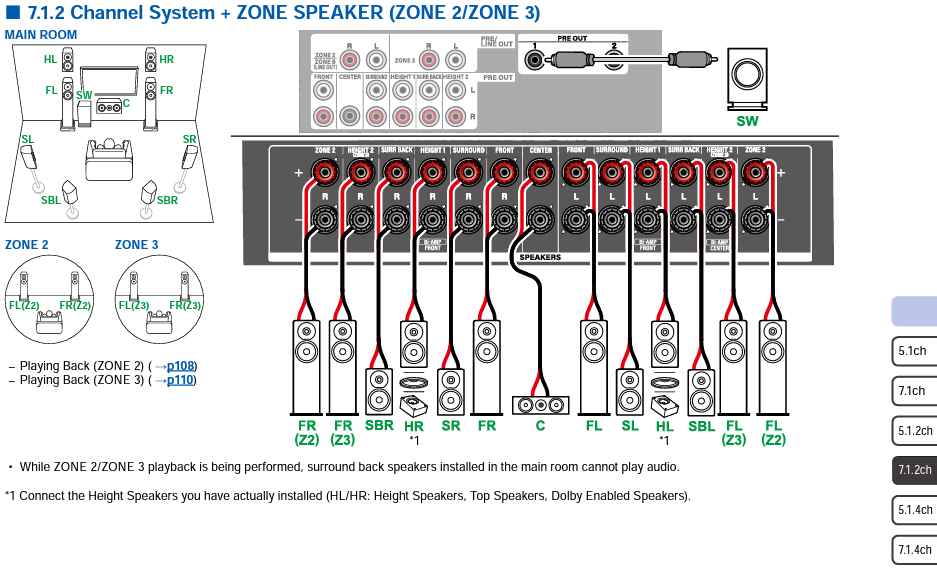

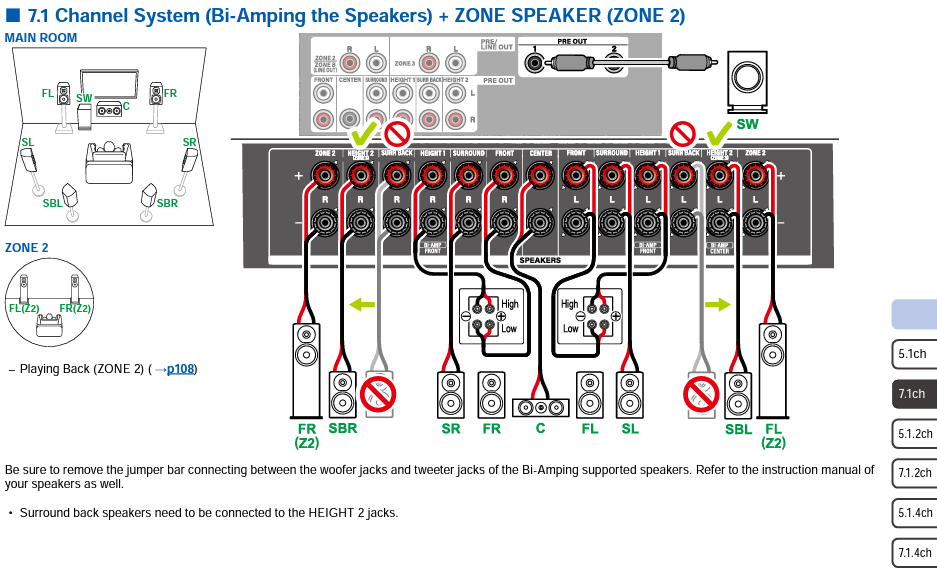

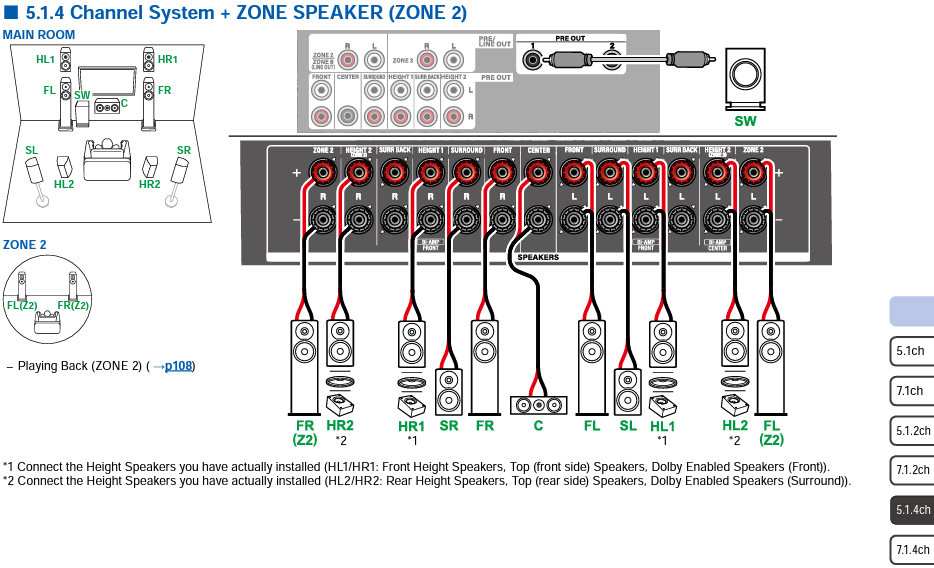

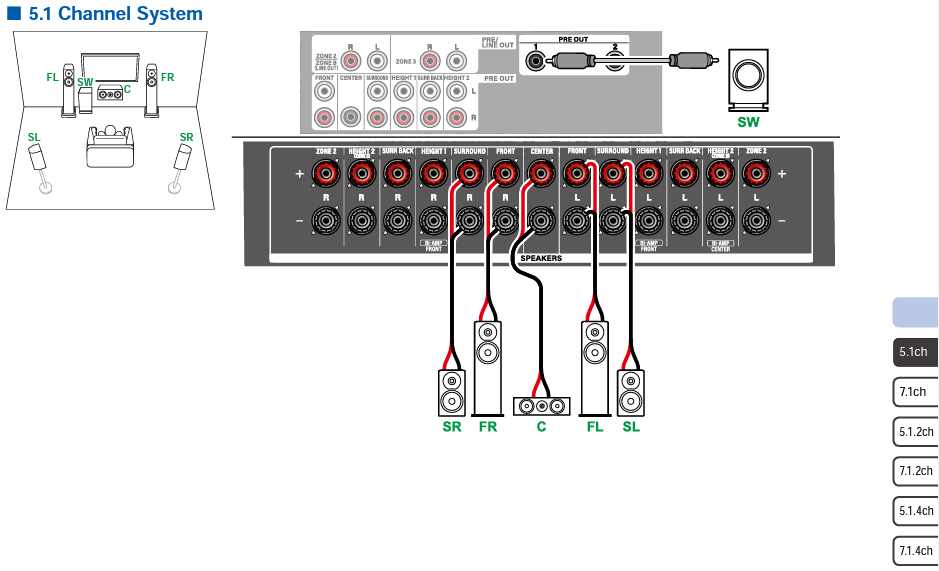

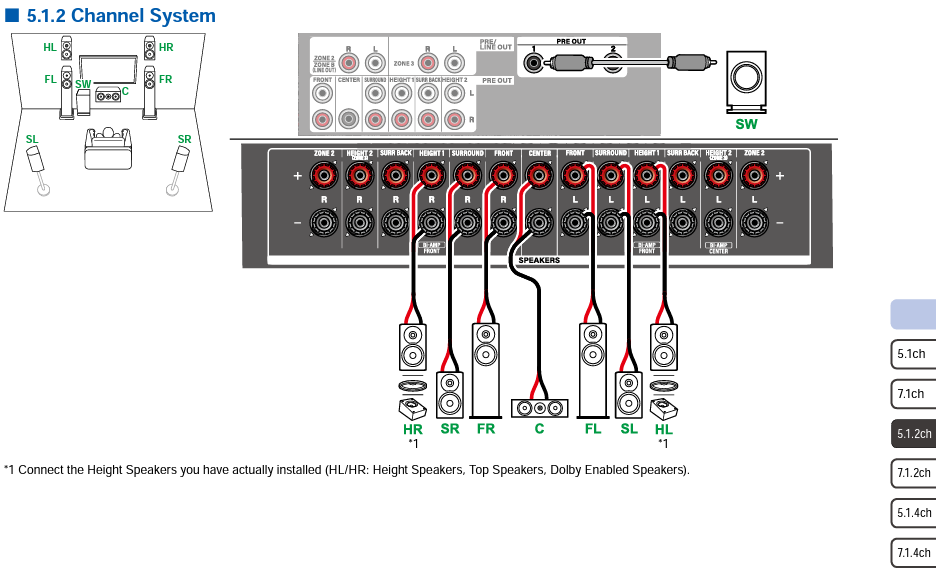

RZ70 Connections.png RZ70 Connections1.png RZ70 Connections2.png RZ70 Connections3.png RZ70 Connections4.png RZ70 Connections5.png RZ70 Connections6.png RZ70 Connections7.png RZ70 Connections8.png RZ70 Connections9.png RZ70 Connections0.png RZ70 Connections11.png RZ70 Connections12.png RZ70 Connections13.png RZ70 Connections14.png RZ70 Connections15.png RZ70 Connections17.png RZ70 Connections18.png RZ70 Connections19.png RZ70 Connections20.png RZ70 Connections21.png
