TX-RZ70 - Input/Output Assign

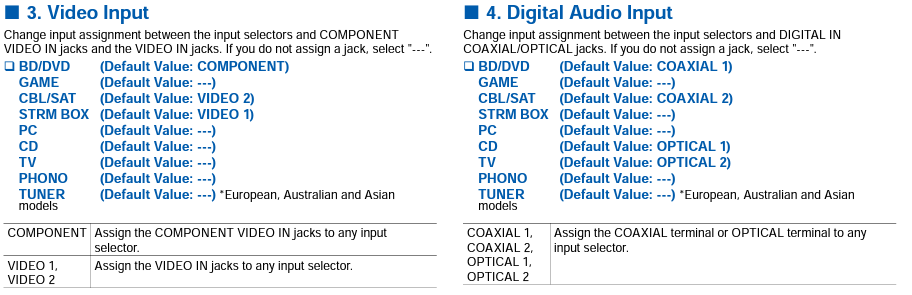

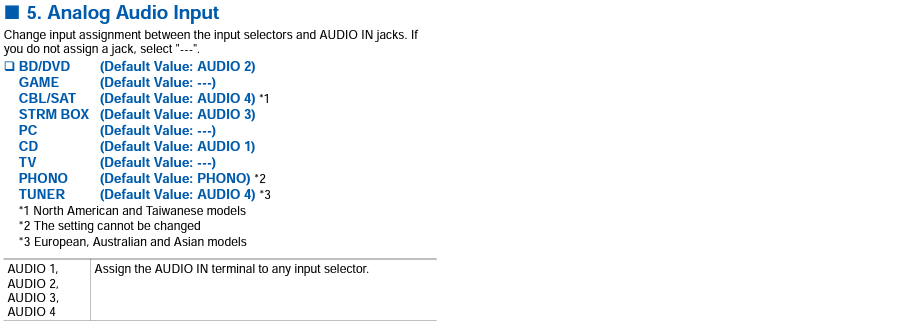

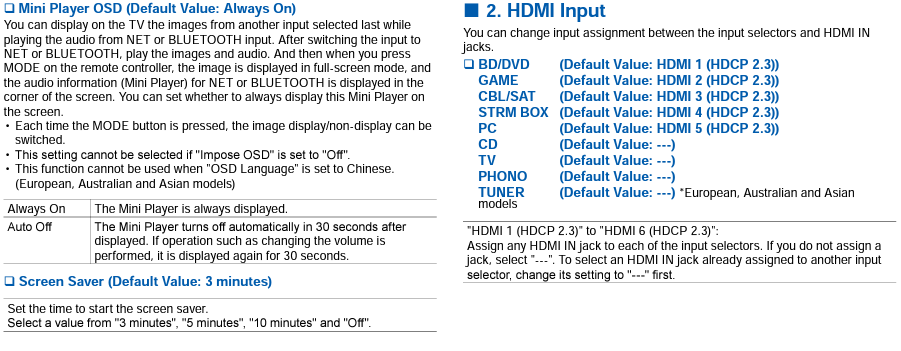

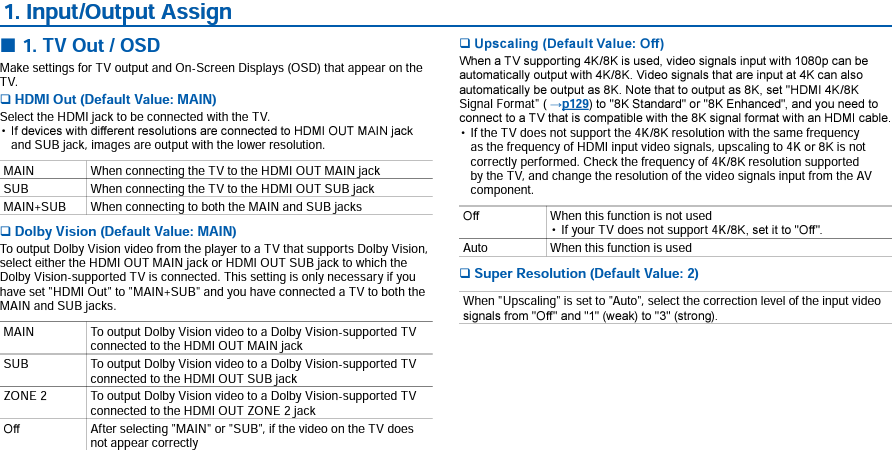

rz70 in out.png rz70 in out2.png rz70 in out3.png rz70 in out4.png rz70 in out5.png
