TX-NR6050 Front Panel

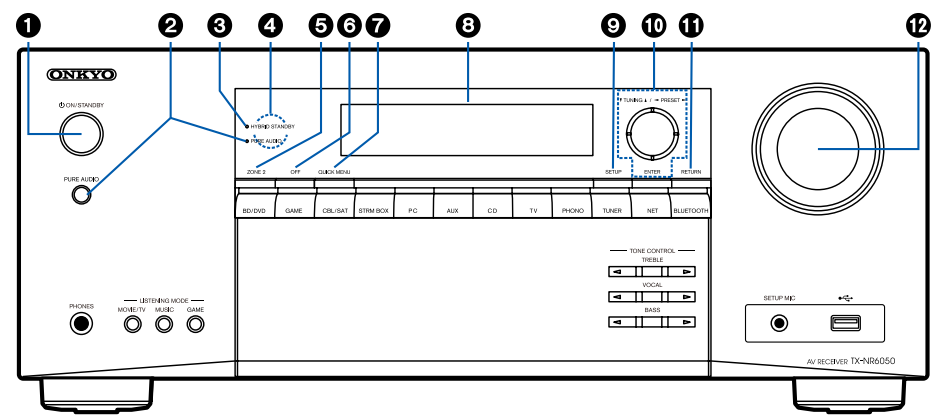

1. ON/STANDBY button
2. PURE AUDIO button/indicator: Switches to the Pure Audio mode. The indicator lights when the
mode is on. ( →p160)
3. HYBRID STANDBY indicator: Lights up when any of the following functions is working or enabled in standby state of this unit. When this indicator is lighting, the power consumption in standby state increases, however, the increase in power consumption is minimized by entering the HYBRID STANDBY mode where only the essential circuits operate.
– HDMI CEC ( →p115)
– HDMI Standby Through ( →p115)
– USB Power Out at Standby ( →p122)
– Network Standby ( →p122)
– Bluetooth Wakeup ( →p123)
4. Remote control sensor: Receives signals from the remote controller.
• The reception range of the remote controller is within a distance of approx. 16´/5 m, and an angle of 20° in vertical direction and 30° to right and left.
5. ZONE 2 button: Controls the multi-zone function. ( →p85)
6. OFF button: Switches the multi-zone function off. ( →p85)
7. QUICK MENU button: Pressing this button during playback can make settings such as "HDMI" and "Audio" quickly on the TV screen while playing. ( →p68)
8. Display ( →p12)
9. SETUP button: You can display advanced setting items on the TV and the display to have a more enjoyable experience with this unit. ( →p99)
10. Cursor buttons /
) and ENTER button: Select an item with the cursors, and press ENTER to confirm your selection. When using TUNER, use them to tune in to stations. ( →p63)
11. RETURN button: Returns the display to the previous state while setting.
12. MASTER VOLUME

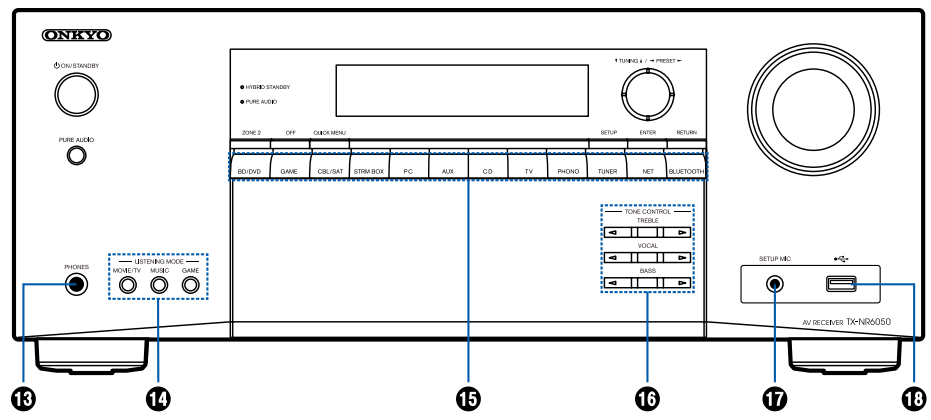

13. PHONES jack: Connect headphones with a standard plug (ø1/4″/6.3 mm).
14. LISTENING MODE buttons: Switches the listening mode ( →p66) by pressing "MOVIE/ TV", "MUSIC" and "GAME" repeatedly.
15. Input selector buttons: Switches the input to be played.
16. TONE CONTROL buttons: Adjusts the sound quality. Press of "TREBLE", "VOCAL" or "BASS" respectively.
17. SETUP MIC jack: Connect the supplied speaker setup microphone. ( →p131)
18. USB port: Connect a USB storage device to play music files. ( →p89)
