TX-NR6050 Connecting the TV
By connecting a TV to this unit, you can show the video from AV devices connected to this unit on the TV and also play the sound from the TV through this unit.
To ARC/eARC TV

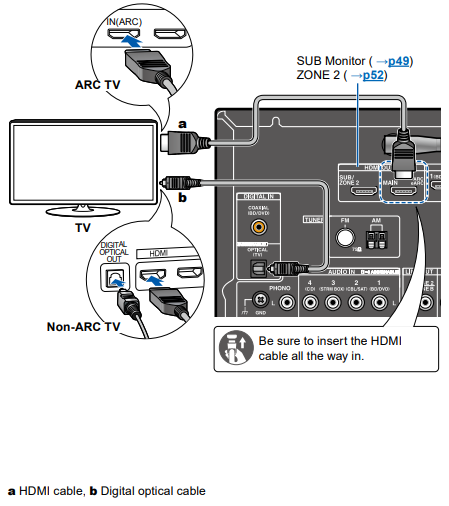

If the TV supports the ARC (Audio Return Channel) function(*), use only the HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of the TV for connection. You connect the HDMI cable to the HDMI OUT MAIN jack labeled "ARC" on the receiver side.
• When a TV compatible with the eARC function is connected, use an HDMI
cable that supports Ethernet.
To Non-ARC TV
If the TV does not support the ARC (Audio Return Channel) function(*), connect an HDMI cable and digital optical cable.
• If you use a cable set-top box, etc. connected to the input jack of this unit to watch TV (without using a TV’s built-in tuner), connection with a digital optical cable is not required.
Setup
• When not using the ARC function, press on the remote controller, then set "5.Hardware" - "HDMI" - "Audio Return Channel (eARC supported)" ( →p116) to "Off".
(*)The ARC function and eARC function transmit the audio signals of the TV via an HDMI cable, and plays the audio of the TV on this unit. To check if the TV supports the ARC function and eARC function, refer to the instruction manual of the TV, etc.
ARC/eARC compatible audio formats ( →p165)
• Settings are required when 4K or 8K high-quality video is to be played. Refer to "HDMI 4K/8K Signal Format" ( →p103) for information on the settings. Also, use an HDMI cable that supports 4K or 8K video.
Connecting the SUB Monitor
SUB Monitor
This unit has multiple HDMI OUT jacks, and another TV or projector can be connected to the HDMI OUT SUB jack.
• Switch between MAIN and SUB using the HDMI MAIN/SUB button on the remote controller ( →p15) or "Quick Menu" ( →p68). Note that this jack is not ARC-compatible.
• If devices with different resolutions are connected to HDMI OUT MAIN jack and SUB jack, images are output with the lower resolution.
