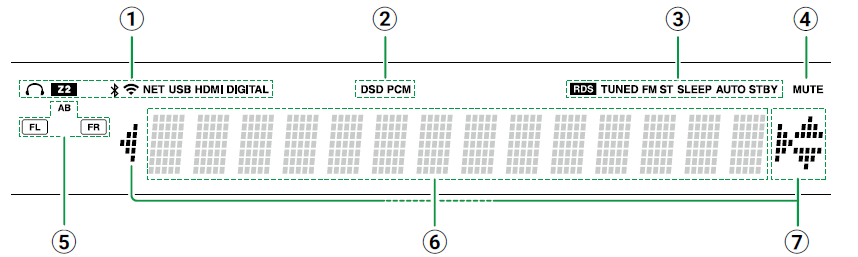

TX-8470 Display

 Lights in the following conditions.
: Headphones are connected.
Z2: ZONE 2 is on.
: Connected by Bluetooth.
: Connected by Wi-Fi.
NET: Lights when connected to the network with the "NET" input selector. It will blink if incorrectly
connected to the network.
USB: Lights when the "NET" input selector is selected, a USB device is connected and the
USB input is selected. It will blink if the USB device is not properly connected.
HDMI: HDMI signals are input and the HDMI input is selected.
DIGITAL: Digital signals are input and the digital input is selected.
Lights according to the type of input digital audio signal.
Lights in the following conditions.

        RDS (European models): Receiving RDSbroadcasting.
        TUNED: Receiving DAB (European models)/AM (North American models)/FM (North American
         and European models) radio.
        FM ST: Receiving FM stereo.
        SLEEP: Sleep timer is set.
        AUTO STBY: Auto Standby is set. ( →p80)
 MUTE: Blinks when muting is on.
Speaker/Channel display: Displays the speaker channels being output.

       A: When audio is being output from the SPEAKERS A terminals
       B: When audio is being output from the SPEAKERS B terminals
       AB: When audio is being output from both the SPEAKERS A and SPEAKERS B terminals
Displays various information of the input signals.
Cursors : These may light when performing operations while "NET" is selected
with the input selector. / light when there are multiple folders or files that are available to be
selected. / light when text information does not fit with the range provided by "".
