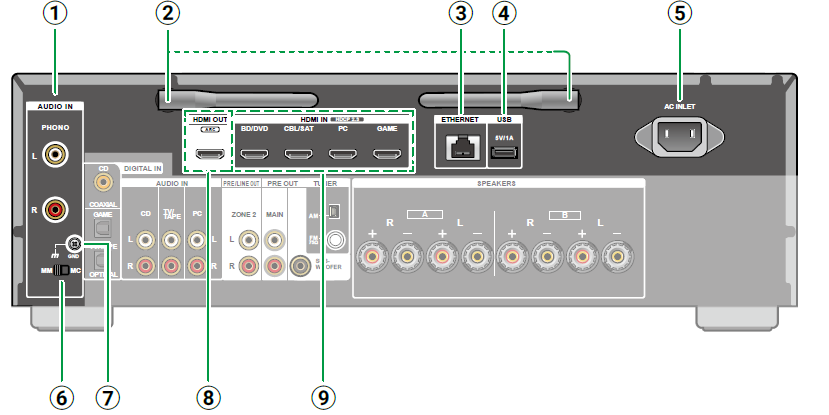

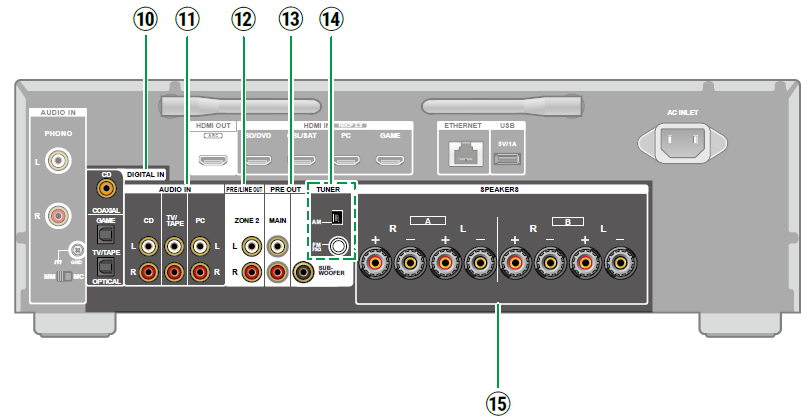

TX-8470 Rear Panel

 PHONO jack: Use an analog audio cable to connect either an MM or MC type cartridge
       turntable.
 Wireless antenna: Used for WI-Fi connection or  when using a Bluetooth enabled device. Adjust
        the angles according to the connection status.

 ETHERNET port: Connect to the network with an Ethernet cable.
 USB port: Connect a USB storage device to play music files ( →p66). You can also supply
         power (5 V/1 A) to USB devices with a USB cable.
 AC INLET: Connect the supplied power cord.
MM/MC switch: Switch to suit the turntable cartridge type (MM or MC).
 GND terminal: Connect the ground wire of the turntable.
HDMI OUT jacks: Transmit video signals and audio signals with an HDMI cable connected to a
        monitor such as a TV or projector.

HDMI IN jacks: Transmit video signals and audio signals with an HDMI cable connected to an AV
       component.

DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio signals with a
         digital optical cable or digital coaxial cable.
AUDIO IN jacks:  Input AV component audio signals with an analog audio cable.
               *For models that do not have a tuner, the “PC” jack is changed to a “TUNER” jack.
ZONE 2 PRE/LINE OUT jacks: Output audio signals with an analog audio cable connected
          to an integrated amplifier in a separate room (ZONE 2).
MAIN PRE OUT jacks: Connect a power amplifier. ( →p22)
          SUBWOOFER PRE OUT jacks: Connect a powered subwoofer with a subwoofer cable.

TUNER AM/FM terminal (North American models): Connect the supplied antennas.

TUNER DAB/FM terminal (European models): Connect the supplied antennas.

SPEAKERS terminals: Connect speakers with speaker cables. (North American and Japanese
       models are banana plug ready. Use plugs with a diameter of 4 mm.)
       *Connection with spade lugs is not supported.
