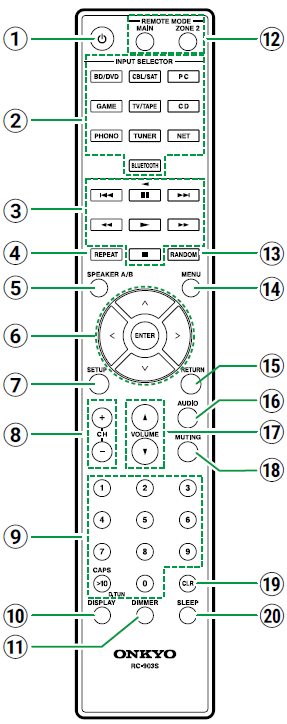

TX-8470 Remote Controller

 ON/STANDBY button

INPUT SELECTOR buttons: Switches the input to be played.
Used for playback operations for the Music Server ( →p68) or USB device ( →p66).
REPEAT button : Used for repeat play operations when playing Music Server or USB. Each time you             press the button, the mode switches from (1-track repeat) to (folder repeat).
SPEAKER A/B button: Select the terminals to output audio from between SPEAKERS A/B.
Cursor buttons and ENTER button: Select an item with the cursors, and press ENTER to
        confirm your selection. Pressing / LEFT/ RIGHT button allows you to switch the screen when a music          folder list or file list is not displayed on one screen on the TV.
SETUP button: Displays advanced setting items on the TV or the display to have a more
        enjoyable experience with this unit. ( →p74)
CH (+/-) buttons: Used to select DAB (European models)/AM (North American models)/FM (North
       American and European models) radio stations.
 Numbered buttons
DISPLAY button: Switches the information on the display. You can display information such as
       the input source, volume, and input format when pressed repeatedly during play.
DIMMER button: Switches the brightness of the display with three levels. It cannot be turned off
       completely.
REMOTE MODE MAIN/ZONE 2 buttons: Controls the multi-zone function ( →p61).
RANDOM button: Used for random play operations when playing Music Server or USB.
       Random turns on or off each time you press the button .
MENU button: Used to display the menu.
RETURN button: Returns the display to the previous state while setting.
AUDIO button: Enables you to make adjustments such as the strength of the bass and
       treble and the balance between left and right. ( →p37)
 VOLUME buttons
 MUTING button: Temporarily mutes audio.
        Press the button again to cancel muting.
CLR button: Deletes all characters you have entered when entering text on the TV screen.
       T SLEEP button: You can allow the unit to enter standby automatically when the specified time
        has elapsed. Select the time from "30 min", "60 min", "90 min" and "Off". When you do not want
        to turn the unit to standby automatically, select "Off".
