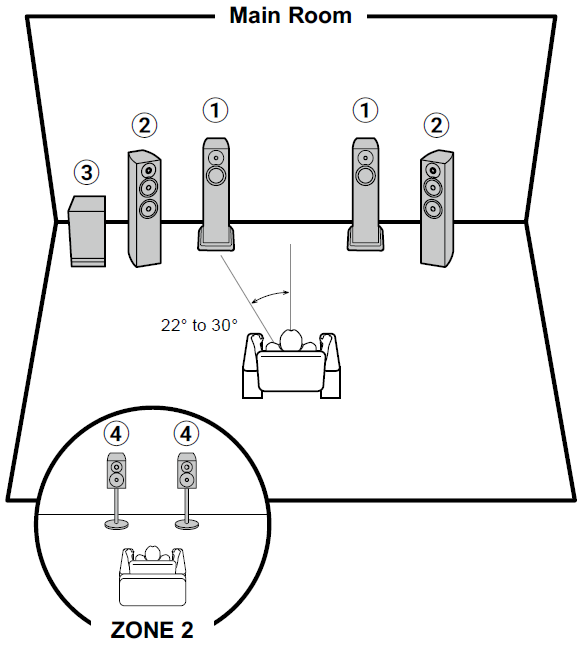

TX-8470 Speaker Layout

 SPEAKER A
Speakers to be connected to the SPEAKERS A terminals. Install in the main room (where this unit is located).
 SPEAKER B
You can connect another speaker system to this unit. Connect these speakers to the SPEAKERS B terminals.
 Powered Subwoofer
The powered subwoofer reproduces bass sounds and enriches the sound field. ( →p21) 　
 ZONE 2 Speakers
The speaker system set up in a separate room (ZONE 2). This enables you to play the same source in the main room and the separate at the same time, or to play separate sources. Note that to use ZONE 2 Speakers you will require a separately available amplifier. ( →p28)
