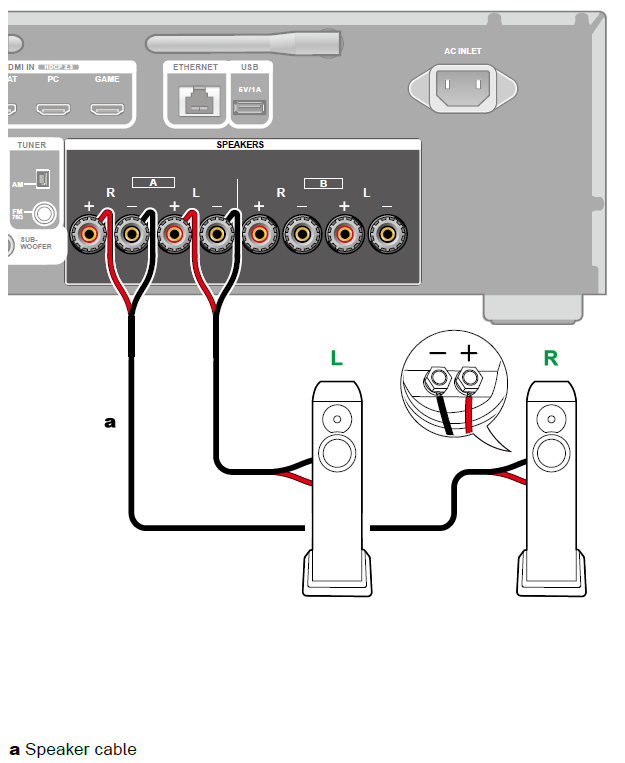

TX-8470 Connecting Speakers

Connect the speakers to the unit with speaker cable.
  • You can connect two sets of speakers to this unit. You can select which set to listen to when enjoying         music. You can also choose to listen to sounds from both sets.
Press SPEAKER A/B on the remote controller or the main unit to switch the audio output. The selection changes in the order SPEAKER A, SPEAKER B, SPEAKER A+B with each press. ( →p38)

Note
When outputting audio simultaneously from 2 speaker systems

Connect speakers with 8 Ω to 16 Ω impedance.

When switching audio output to one of either SPEAKER A or B
Connect speakers with 4 Ω to 16 Ω impedance.

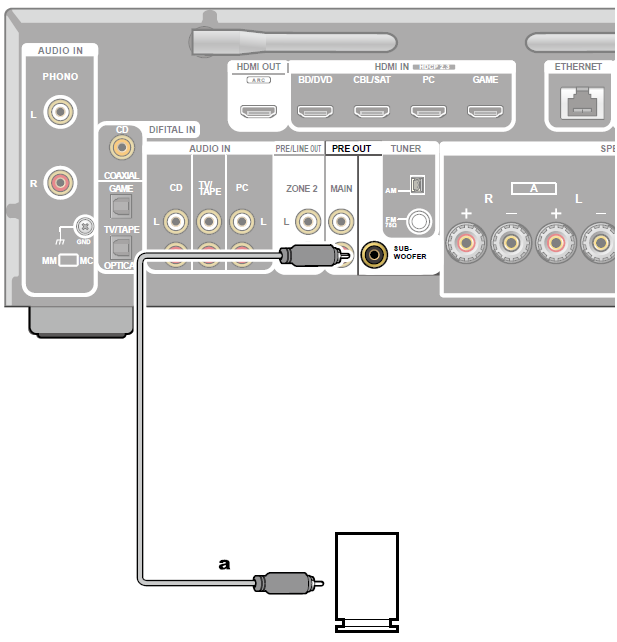

Connecting the Subwoofer

Connect a powered subwoofer with this unit using a subwoofer cable.
