TX-8470 Connecting a Power Amplifier

You can connect a power amplifier to the unit and use the unit as a pre-amplifier. This enables you to playback at high volumes that the unit by itself cannot produce. Connect the speakers to the power amplifier. For details, refer to the power amplifier's instruction manual.

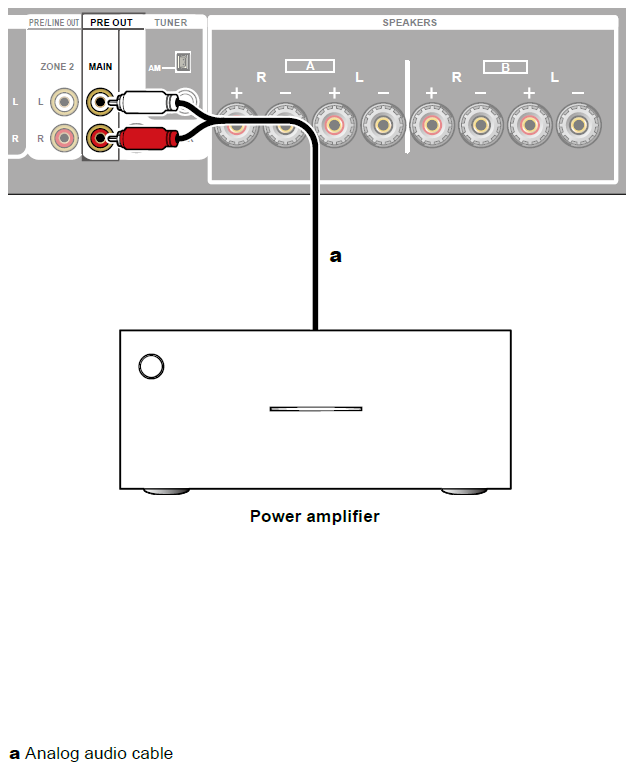

• Use the MAIN PRE OUT terminals as shown in the illustration at left.
