TX-8470 Connecting an Audio Component

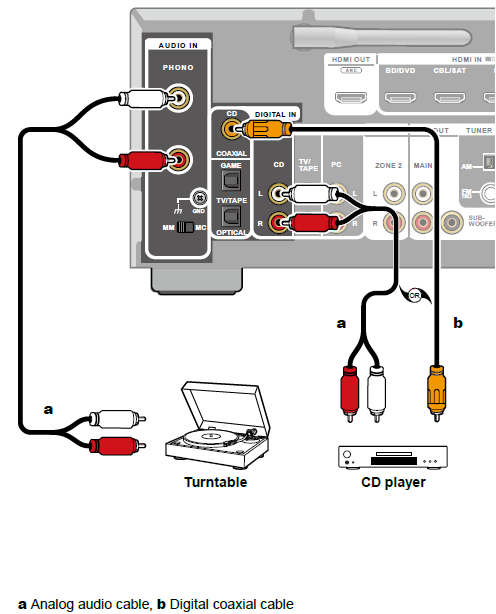

This is a connection example of an audio component. Connect a CD player using an analog audio cable. You can also connect a turntable that has an MMtype or MC type cartridge to the PHONO jack.
• If the turntable has a built-in phono equalizer, connect it to any of the AUDIO
IN jacks other than the PHONO jack.
• Switch the MM/MC switch to suit the turntable cartridge type (MM or MC).

• If the turntable has a ground wire, connect it to the GND terminal of this unit.
