TX-8470 Connecting an Integrated Amplifier in a separate room (Multi-zone)

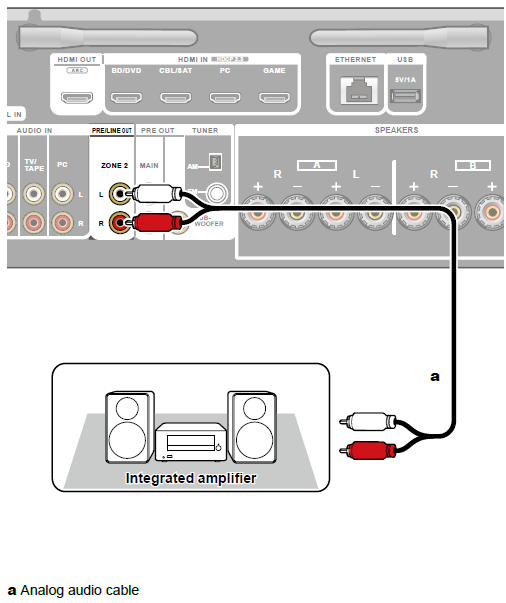

You can enjoy 2 ch audio in the separate room (ZONE 2) while performing playback in the main room (where this unit is located). Use an analog audio cable to connect the ZONE 2 PRE/LINE OUT jacks on this unit to the input jack on an integrated amplifier in the separate room.
• To output audio from an externally connected AV component to ZONE 2, use an analog audio cable for connection. Note that ZONE 2 output is not  possible with the connection using an HDMI cable, digital coaxial cable, or digital optical cable.

     • When connecting an integrated amplifier that does not have a volume control, set "1. Audio" -                    "Zone 2 Output Level" ( →p78) to "Variable" (Default  Value: Fixed) on the Setup menu. If you do                not  set this, the volume output will be very loud and there is a danger of damage to the                            integrated amplifier, speakers, etc. When connecting an integrated amplifier that has a volume                  control, leave this as "Fixed".
