TX-8470 Network Connection

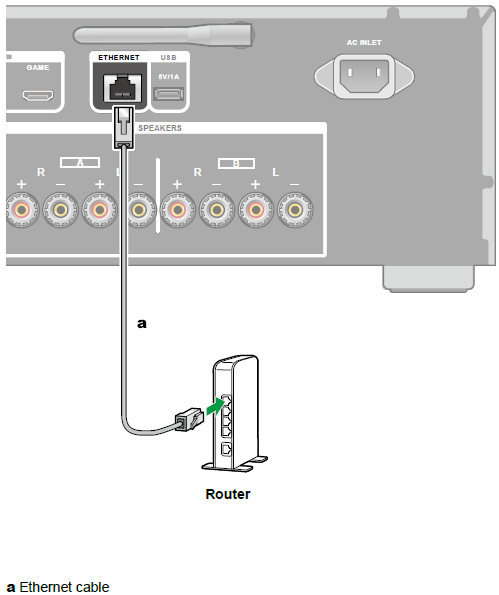

This unit can be connected to the network using a wired LAN or Wi-Fi (wireless LAN). You can enjoy network functions such as Internet radio by network connection. If connection is made by the wired LAN, connect the router and the ETHERNET jack with the Ethernet cable as shown in the illustration. To
connect by Wi-Fi, select your desired setting method in "2. Connect the unit to Wi-Fi" ( →p34) of Initial Setup, and then follow the on-screen instructions. To configure the setting on the Setup menu after the completion of Initial Setup, press the SETUP button on the remote controller, and select "3. Network"
to make the setting ( →p81). For the Wi-Fi connection, stand the wireless antenna for use.

• For security reasons, always connect via a router, etc., when connecting this unit to the Internet. Do not directly connect to the communication circuits (including public wireless LAN) of a telecommunications provider (mobile communications company, fixed-line communications company, Internet  provider, etc.).

pg 34

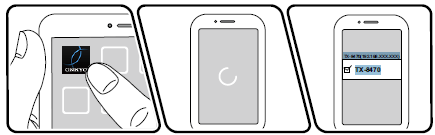

1. Turn on the power of the unit.
2. Start Onkyo Controller. The search for this unit starts automatically when you start the app.
3. When this unit appears in the list of devices, tap it to select it.
TX-8470
TX-8470(192.168.XXX.XXX)

4. Follow the guidance in the app to connect this unit via Wi-Fi.

pg81

Change the settings of the Network function.
• When LAN is configured with a DHCP, set "DHCP" to "Enable" to configure
the setting automatically. ("Enable" is set by default) To assign fixed IP
addresses to each components, you must set "DHCP" to "Disable", assign an
address to this unit in the "IP Address" setting, and set information related to
your LAN, such as Subnet Mask and Gateway.
Wi-Fi (Default Value: Off(Wired))
Connect the unit to the network via a wireless LAN router.
• When switching between "On" and "Off(Wired)", stop the Network service.
Also, when group playback is in process, cancel the group playback once, and
then switch the setting.

Wi-Fi Setup (Default Value: -)
Configure wireless LAN settings by pressing ENTER with "Start" displayed.
Wi-Fi Status (Default Value: -)
The information of the connected access point is displayed.

MAC Address (Default Value: -)
Check the MAC address of this unit.
This value is specific to the component and cannot be changed.

DHCP (Default Value: Enable)

IP Address (Default Value: 0.0.0.0)
Displays/Sets the IP address.
Subnet Mask (Default Value: 0.0.0.0)
Displays/Sets the subnet mask.
Gateway (Default Value: 0.0.0.0)
Displays/Sets the gateway.
DNS Server (Default Value: 0.0.0.0)
Displays/Sets the primary DNS server.
Proxy URL (Default Value: -)
Displays/Sets the proxy server URL.
Proxy Port (Default Value: 8080)
Displays/Sets the proxy server port number when you input "Proxy URL".
