TX-8470 Audio

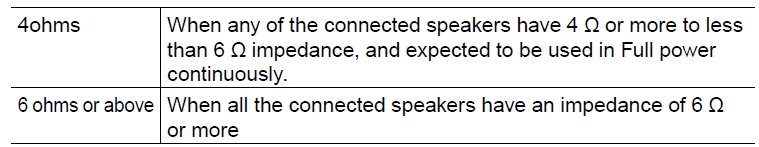

Speaker Impedance (Default Value: 6 ohms or above)
Set the impedance (Ω) of the connected speakers.
       • For impedance, check the indications on the back of the speakers or their instruction manual.

Maximum Volume (Default Value: Off)

Power On Volume (Default Value: Last)

Zone 2 Output Level (Default Value: Fixed)
Select whether to adjust the volume on the integrated amplifier in the separate
room or on this unit when outputting to the separate room (Zone 2).

AM/FM Frequency Step (North American models) (Default Value: 10 kHz / 0.2 MHz)

FM Search Level (European models) (Default Value: Normal)

DAB Auto Scan (European models) (Default Value: -)

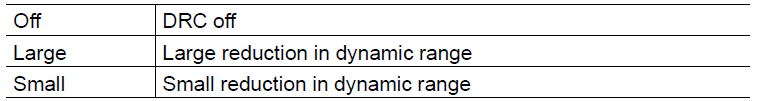

DAB DRC (European models) (Default Value: Off)

With the DRC (Dynamic Range Control) setting, you can reduce the dynamic range of DAB digital radio so that you can still hear quiet parts even when listening at low volume levels - ideal for listening to the radio late at night when you don't want to disturb anyone.
