TX-8470 Control

OSD Language (Default Value: English/Japanese)

Select the on-screen display language from the following.
(North American models)
English, German, French, Spanish, Italian, Dutch, Swedish
(European, Middle East, Australian and Asian models)
English, German, French, Spanish, Italian, Dutch, Swedish, Russian, Chinese
(Japan models)
English, German, French, Spanish, Italian, Dutch, Swedish, Japanese
       • Default values vary depending on the regions.

HDMI CEC (Default Value: On)

Setting this to "On" enables the input selection link and other link functions with HDMI-connected CEC-compatible device.
When this setting is changed, turn off and then on again the power of all connected devices.
        • Depending on the TV to use, a link setting may be required on the TV.
        • Setting this to "On" and closing the operation screen will display the name of the connected CEC-              compatible device and "CEC On" on the main unit’s display.
        • When this function is set to "On", the power consumption in standby state increases, however, the            increase in power consumption is minimized by automatically entering the HYBRID STANDBY                      mode where only the essential circuits operate.
        • If you operate the VOLUME dial on the main unit when this setting is "On" and audio is output                  from the TV speakers, audio will be output also from the speakers connected to this unit. To output            audio from only either of them, change the setting of this unit or TV, or reduce the volume of this              unit.
       • If abnormal behavior is observed when this is set to "On", set it to "Off".
       • If a connected device is not CEC-compatible, or if you are not sure whether it is compatible, set it               to "Off".

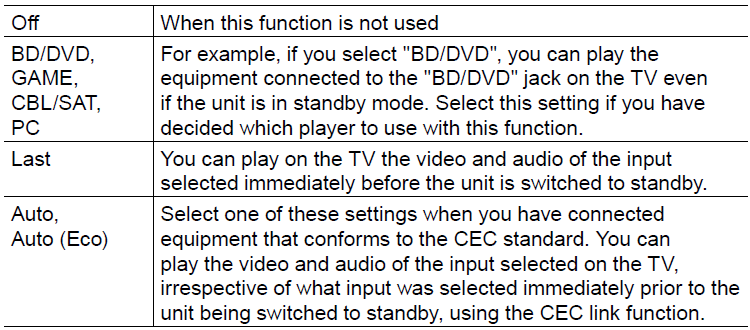

HDMI Standby Through (Default Value: Auto (Eco))

When this is set to anything other than "Off", you can play the video and audio of an HDMI-connected player on the TV even if the unit is in standby mode. Also, only "Auto" and "Auto (Eco)" can be selected if "HDMI CEC" is set to "On". If you select anything else, set "HDMI CEC" to "Off".
      • When this function is set to a value other than "Off", the power consumption in standby state                     increases, however, the increase in power consumption is minimized by automatically entering the             HYBRID STANDBY mode where only the essential circuits operate.
      • To play a non-CEC compliant player on the TV, turn the unit on and switch the input.
      • When using a CEC-compliant TV, you can reduce the power consumption in standby mode by                   selecting "Auto (Eco)".

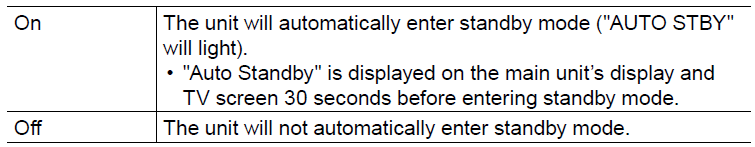

Auto Standby (Default Value: On/Off)
This setting allows the unit to enter standby mode automatically after 20 minutes of inactivity without any video or audio input.
        • Default values vary depending on the regions.

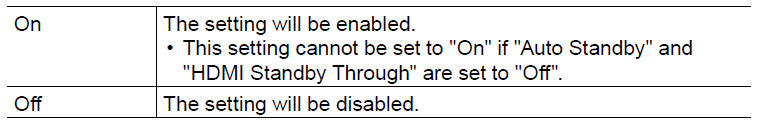

Auto Standby in HDMI Standby Through (Default Value: On/Off)
Enable or disable "Auto Standby" while "HDMI Standby Through" is on.
        • Default values vary depending on the regions.

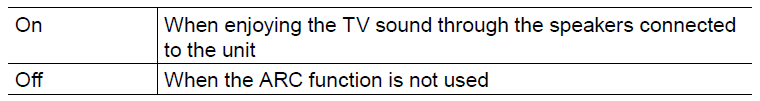

Audio Return Channel (Default Value: On)
You can enjoy the sound of an HDMI-connected ARC-compatible TV through
the speakers connected to the unit.

Network Standby (Default Value: On)
When this function is set to "On", the network function works even in standby state, and you can turn on the power of the unit via network using an application such as Onkyo Controller that can control this unit.
       • When this function is set to "On", the power consumption in standby state increases, however, the increase in power consumption is minimized by automatically entering the HYBRID STANDBY mode where only the essential circuits operate. Note that even if this function is set to "Off", when any of the HDMI CEC ( →p79), HDMI Standby Through ( →p79) and Bluetooth Wakeup ( →p80) functions is enabled, this function will be in
"On" state regardless of the setting.
• When connection to the network is lost, "Network Standby" may be disabled
to reduce power consumption. In such a case, turn the unit on by using the
power button on the remote controller or main unit.

Bluetooth Wakeup (Default Value: Off)
This function wakes up the unit on standby by connecting a Bluetooth enabled
device. This is effective when "4. Bluetooth" - "Bluetooth Receiver" is set to "On".
