TX-8470 Network

Change the settings of the Network function.
   • When LAN is configured with a DHCP, set "DHCP" to "Enable" to configure the setting automatically.          ("Enable" is set by default) To assign fixed IP addresses to each components, you must set "DHCP" to        "Disable", assign an address to this unit in the "IP Address" setting, and set information related to
       your LAN, such as Subnet Mask and Gateway.
Wi-Fi (Default Value: Off(Wired))
Connect the unit to the network via a wireless LAN router.
     • When switching between "On" and "Off(Wired)", stop the Network service. Also, when group                      playback is in process, cancel the group playback once, and then switch the setting.

Wi-Fi Setup (Default Value: -)
Configure wireless LAN settings by pressing ENTER with "Start" displayed.

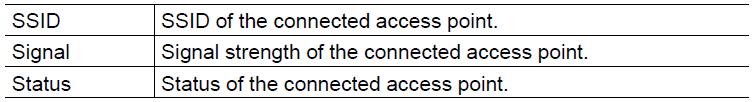

Wi-Fi Status (Default Value: -)
The information of the connected access point is displayed.

MAC Address (Default Value: -)

Check the MAC address of this unit.
This value is specific to the component and cannot be changed.

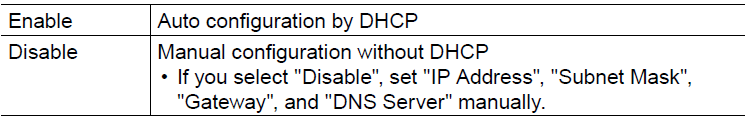

DHCP (Default Value: Enable)

IP Address (Default Value: 0.0.0.0)
Displays/Sets the IP address.
Subnet Mask (Default Value: 0.0.0.0)
Displays/Sets the subnet mask.
Gateway (Default Value: 0.0.0.0)
Displays/Sets the gateway.
DNS Server (Default Value: 0.0.0.0)
Displays/Sets the primary DNS server.
Proxy URL (Default Value: -)
Displays/Sets the proxy server URL.

Proxy Port (Default Value: 8080)
Displays/Sets the proxy server port number when you input "Proxy URL".
