TX-RZ 30 Front Panel

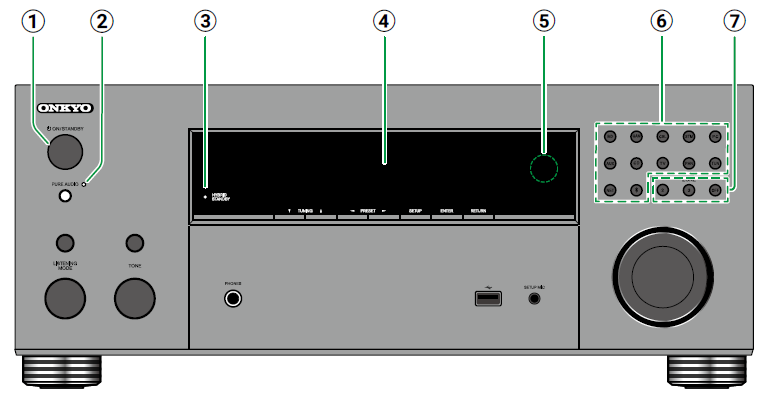

ON/STANDBY button
PURE AUDIO button/indicator: Switches to the Pure Audio mode. The indicator lights when the
mode is on. ( →p170)
• The Pure Audio mode cannot be selected  when the Multi-zone feature is on. ( →p86)
HYBRID STANDBY indicator: Lights up when any of the following functions is working or
enabled in standby state of this unit. When this indicator is lighting, the power consumption in standby state increases, however, the increase in power consumption is minimized by entering the HYBRID STANDBY mode where only the essential circuits operate.
– HDMI CEC ( →p121)

Display ( →p13)
• When the Dimmer function is working, the display may go dim. ( →p17)
• When you press the 2 PURE AUDIO button, the Pure Audio mode turns on and the display panel turns off.
Remote control sensor: Receives signals from the remote controller.
• The reception range of the remote controller is within a distance of approx. 16´/5 m, and an angle of 20° in vertical direction and 30° to right and left.
Input selector buttons: Switches the input to be played.
 ZONE 2/ZONE 3 buttons: Controls the multizone function. ( →p86)
     OFF button: Switches the multi-zone function off.

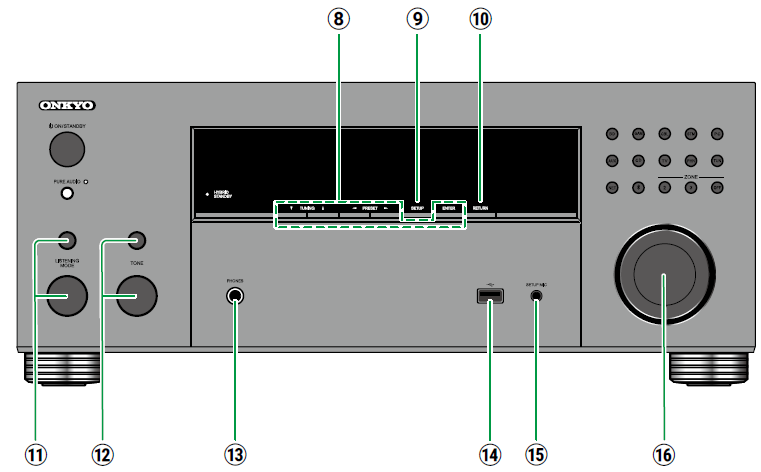

Cursor buttons and ENTER button: Select an item with the cursors, and press ENTER to confirm your selection. Use them to tune to stations when using TUNER ( →p71)
TUNING/PRESET button (North American and Taiwanese models): Used to select AM/FM radio

stations. ( →p71)
SETUP button: You can display advanced setting items on the TV and the display to have
a more enjoyable experience with this unit. ( →p101)
RETURN button: Returns the display to the previous state while setting.

LISTENING MODE button/dial: Press the LISTENING MODE button (above) to select a category from “Movie/TV”, “Music” and “Game”, and then turn the LISTENING MODE dial (below) to change the listening mode ( →p67).

TONE button: Adjusts the sound quality. Press the TONE button (above) to select an item to adjust from “Bass”, “Vocal” and “Treble”, and turn the TONE dial (below) to adjust. ( →p65)
PHONES jack: Connect headphones with a standard plug (ø1/4″/6.3 mm).
• While headphones are connected to the PHONES jack, no sound is output from the
speakers.
USB port: Connect a USB storage device to play music files. You can also supply power (5 V/1 A)
to USB devices with a USB cable.
SETUP MIC jack: Connect the supplied speaker setup microphone. ( →p140, p142)
MASTER VOLUME dial
