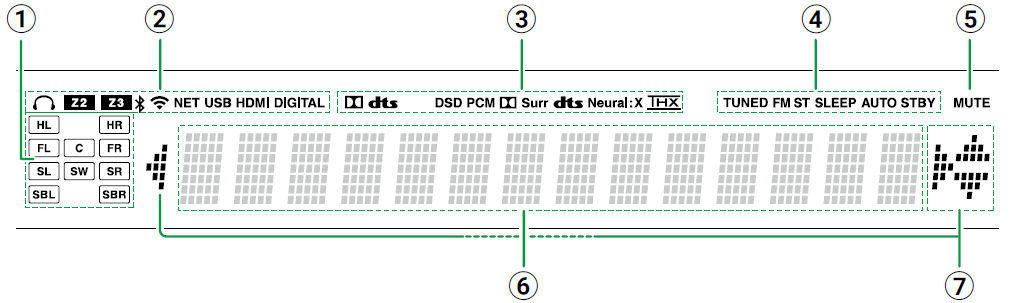

TX-RZ30 Display

A Speaker/Channel display: Displays the output channel that corresponds to the selected
listening mode.
B Lights in the following conditions.
Headphones are connected.
ZONE 2/ZONE 3 is on.
Connected by BLUETOOTH.
Connected by Wi-Fi.
NET: Lights when connected to the network with the "NET" input selector. It will blink if incorrectly
connected to the network.
USB: Lights when the "NET" input selector is selected, a USB device is connected and the
USB input is selected. It will blink if the USB device is not properly connected.
HDMI: HDMI signals are input and the HDMI input is selected.
DIGITAL: Digital signals are input and the digital input is selected.
Lights according to the type of input digital audio signal and the listening mode.

Lights in the following conditions.
TUNED: Receiving AM/FM radio. *
FM ST: Receiving FM stereo. *
SLEEP: Sleep timer is set.
AUTO STBY: Auto Standby is set. ( →p128)
   * North American and Taiwanese models
Blinks when muting is on.
Displays various information of the input signals.
     • "DialogNorm: X dB" ("X" is a numerical value) may be displayed when software recorded in
         Dolby lineage or DTS lineage audio formats is played. For example, if "DialogNorm: +4 dB" is                     displayed, the source being played is recorded with 4 dB plus the THX standard level. If you play it             with the THX standard level, lower the volume by 4 dB.
Cursors : These may light when performing operations while "NET" is selected
with the input selector. light when there are multiple folders or files that are
available to be selected. light when text information does not fit with the range
provided by
