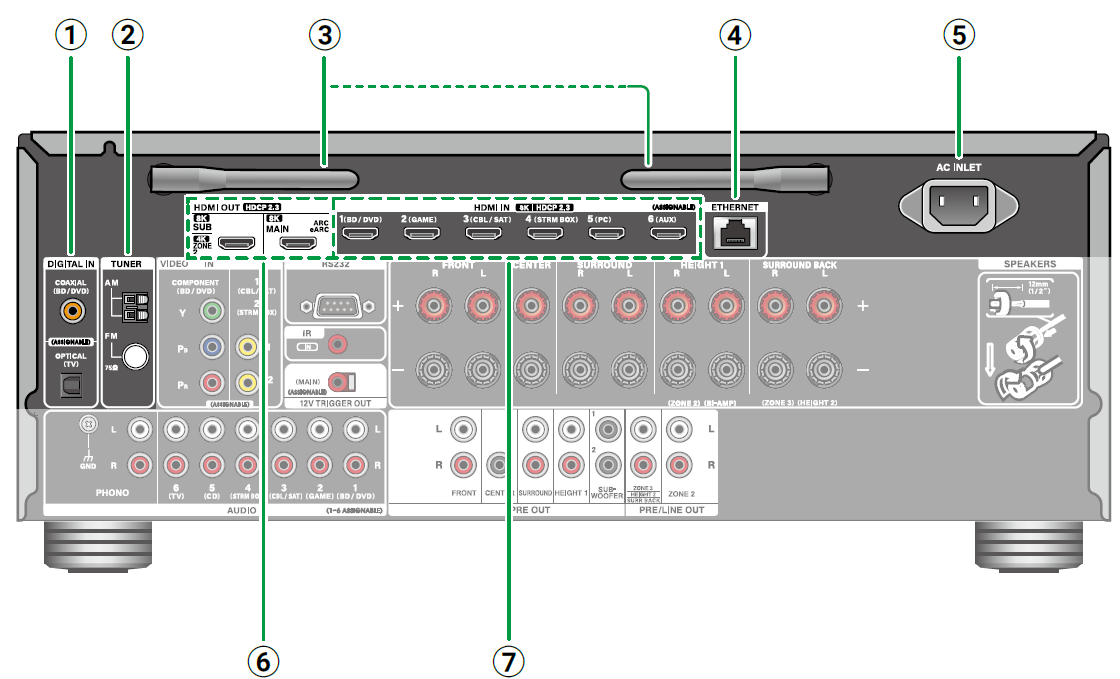

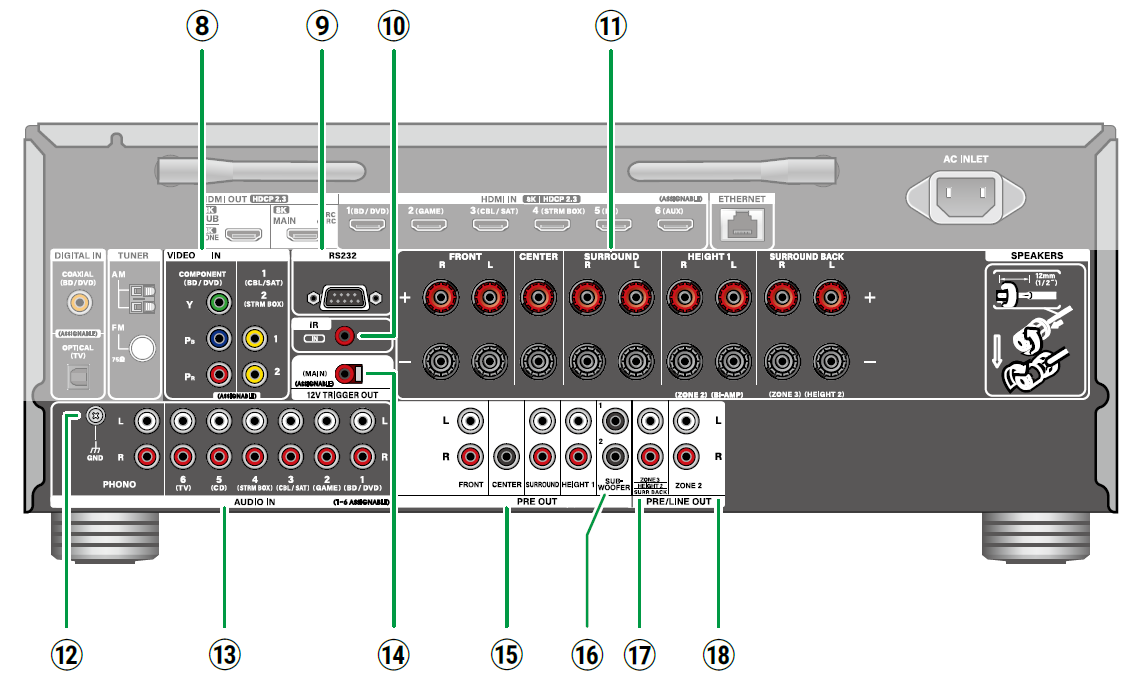

TX-RZ30 Rear Panel

DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio signals with a
digital optical cable or digital coaxial cable.
TUNER AM/FM terminal (North American and Taiwanese models): Connect the supplied
antennas.
Wireless antenna: Used for WI-Fi connection or when using a BLUETOOTH enabled device. Adjust the angles according to the connection status.

ETHERNET port: Connect to the network with an Ethernet cable.
AC INLET: Connect the supplied power cord.
HDMI OUT jacks: Transmit video signals and audio signals with an HDMI cable connected to a
monitor such as a TV or projector.
HDMI IN jacks: Transmit video signals and audio signals with an HDMI cable connected to an AV
component.

COMPONENT VIDEO IN jacks: Input AV component video signals with a component
video cable. (Compatible only with 480i or 576i resolution.)
VIDEO IN jacks: Input AV component video signals with an analog video cable.
RS232 port: Connect a home control system equipped with an RS-232C port. For installing
a home control system, contact the specialized stores.
IR IN port: Connect a remote control receiver unit. ( →p60)
SPEAKERS terminals: Connect speakers with speaker cables. (North American models support

banana plugs. Use a plug 4 mm in diameter.) Spade lug connection is not supported.
GND terminal: Connect the ground wire of the turntable.
AUDIO IN jacks: Input AV component audio signals with an analog audio cable.

12V TRIGGER OUT jack: Connect a device  equipped with a 12V trigger input jack to enable
power link operation between the device and this unit. ( →p61)
PRE OUT jacks: Connect to a power amplifier. ( →p46)
SUBWOOFER PRE OUT jacks: Connect a powered subwoofer with a subwoofer cable. Up
to two powered subwoofers can be connected.
ZONE 3 PRE/LINE OUT jacks: Output audio signals with an analog audio cable connected
to an integrated amplifier in a separate room (ZONE 3).

  HEIGHT 2/SURR BACK PRE OUT jacks: Connect to a power amplifier. ( →p46)
ZONE 2 PRE/LINE OUT jacks: Output audio signals with an analog audio cable connected
to an integrated amplifier in a separate room (ZONE 2).
