TX-RZ30 Remote Controller

ON/STANDBY button
 Input selector buttons: Switches the input to be played.
Play buttons: Used for playback operations for the Music Server ( →p95) or USB device ( →p93). Also, switching to “CEC MODE” withS MODE button allows you to operate an HDMI CEC function-enabled AV component. (Some devices may not be operated.)
Q (QUICK MENU) button: Pressing this button during playback allows you to make settings
such as “HDMI” and “Audio” quickly on the TV screen while playing. ( →p73)
Cursor buttons and ENTER button: Select an item with the cursors, and press ENTER to confirm your selection. Pressing LEFT/RIGHT button allows you to switch the screen when a music folder list or file list is not displayed on one screen on the TV.
SETUP button: Displays advanced setting items on the TV or the display to have a more enjoyable experience with this unit. ( →p101)
SLEEP button: You can allow the unit to enter standby automatically when the specified time has elapsed. Select the time from “30 min”, “60 min”, “90 min” and “Off”. When you do not want to turn the unit to standby automatically, select “Off”. You can also set this by pressing  SETUP button and selecting “Hardware” - “Power Management” - “Sleep Timer” ( →p128) on the Setup menu.
HDMI MAIN/SUB button: Select the HDMI OUT jack to output video signals from “MAIN”, “SUB”, and “MAIN+SUB”.
BLUETOOTH PAIRING button: Switches the information on the display. Also, when the “BLUETOOTH” input selector is selected, pressing and holding this button for 5 seconds or more will switch to the pairing mode.
RETURN button: Returns the display to the previous state while setting.
MUTE button: Temporarily mutes audio. Press the button again to cancel muting.

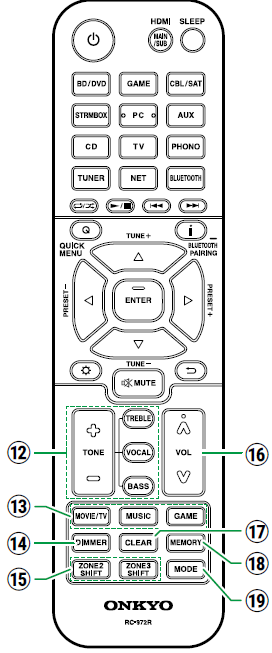

TONE buttons: Adjusts the sound quality. ( →p65)
LISTENING MODE buttons: Selects a listening mode ( →p67, p160).
DIMMER button: Switches the brightness of the display with three levels. It cannot be turned off completely.
ZONE 2/ZONE 3 SHIFT button: Used to control the multi-zone function ( →p86).
VOLUME buttons
CLEAR button: Deletes all characters you have entered when entering text on the TV screen.
MEMORY button: Used to register AM/FM radio stations. ( →p71) (North American and
Taiwanese models)
 MODE button: Switches between automatic tuning ( →p71) and manual tuning for AM/ FM stations(→p71) (North American and Taiwanese models). Also, when an HDMI CEC function-enabled AV component is connected to this unit, you can switch Play buttons between “CEC MODE” and “RCV MODE” (normal mode).
