TX-RZ30 Connecting a Blu-ray/DVD Disc player without HDMI Jack Mounted

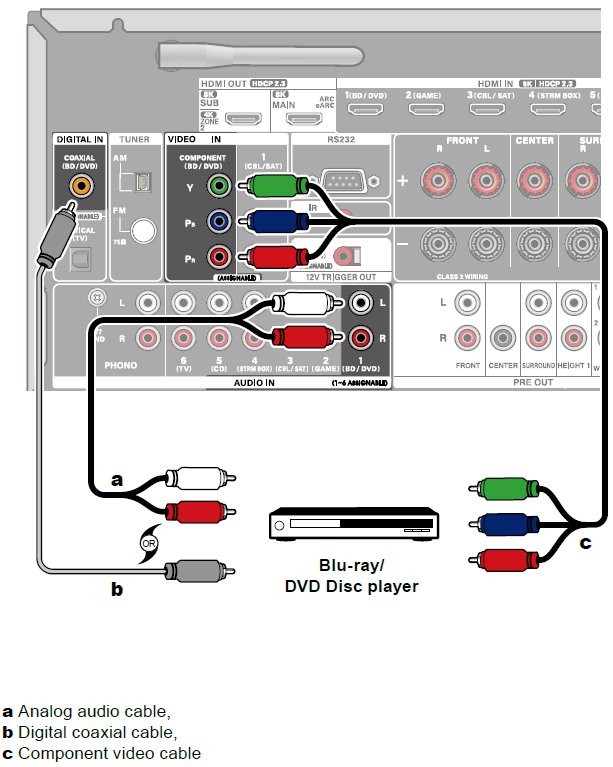

This is a connection example of an AV component unequipped with an HDMI jack. Select cables that match the jacks of the AV component for connection. For example, when video input is connected to the  D/DVD jack, connect the audio input to BD/DVD jack, too. Thus, video input jacks and audio input jacks should  have the same name for connection. Note that video signals input to the VIDEO IN jack or the COMPONENT VIDEO IN jack are converted to HDMI video signals, and then output from the HDMI OUT jack.
• To enjoy digital surround playback in formats such as Dolby Digital, you need to make a connection for audio signals with a digital coaxial cable or a digital optical cable.
• In the diagram example, when you change the allocation ( →p107) of the AUDIO IN terminals, you can also connect to any terminal other than BD/DVD.

• The COMPONENT VIDEO IN jacks are compatible only with 480i or 576i  resolution. When connecting to the COMPONENT VIDEO IN jacks, set the output resolution of the player to 480i or 576i. If there is no option such as 480i, select interlace. If your player does not support 480i or 576i output, use
the VIDEO IN jack.
• To enjoy digital surround sound including Dolby Digital, set the audio output of
the connected Blu-ray Disc player etc. to the Bitstream output.
