TX-RZ30 Trigger OUT Jack

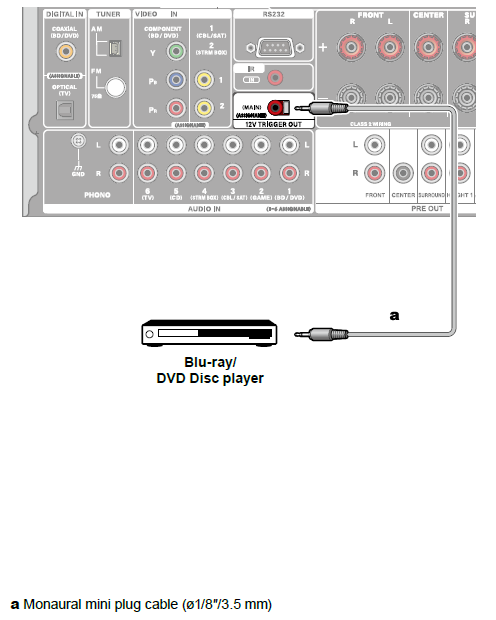

When connecting a device equipped with a 12V TRIGGER IN jack such as a  BD/DVD player to this unit, the device can be turned on or set to standby by interlocking the operation on this unit. When the desired input is selected on the unit, power link operation will be activated with a control signal of maximum 12 V/100 mA from the 12V TRIGGER OUT jack.
• For connection, use a monaural mini plug cable (ø1/8″/3.5 mm) without resistance. Do not use a stereo mini plug cable.

• Settings are required to output control signals from the 12 V TRIGGER OUT jack. Press the SETUP button on the remote controller, select the input desired for "Hardware" - "12V Trigger" ( →p130), and set the output destination for the control signal.
