TX-RZ30 Basic Operations: Video and Sound Quality

Adjusting the volume

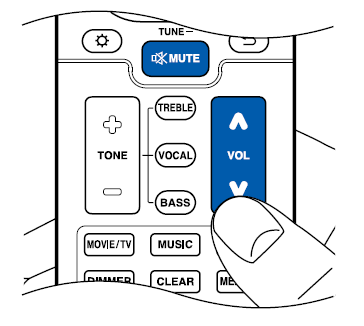

1. Press the VOLUME buttons on the remote controller to adjust the volume.
To temporarily turn off the sound, press the MUTE button. Press again to cancel.

• When Dolby Vision images are received, the volume bar on the TV screen changes from blue to magenta.
• When using the unit for extended periods with the temperature inside the unit exceeding a certain temperature, the volume may be reduced automatically to protect the circuits.
You can also adjust the volume with the following operations:
– Using the MASTER VOLUME dial on the main unit
– Using the Onkyo Controller ( →p143) app
– Using the linking function (HDMI CEC) ( →p66)

Adjusting the sound quality

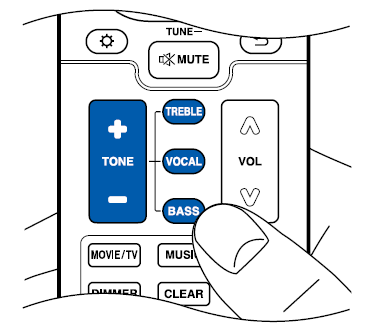

1. Press "TREBLE", "BASS", or "VOCAL" on the remote controller to select what you want to adjust, then adjust with + and -.
Treble: Enhance or moderate the high pitched range of the speakers.
Bass: Enhance or moderate the low pitched range of the speakers.
Vocal: You can make it easier to hear dialog in movies or give more prominence to the vocals in music. This is especially effective with the dialog in movies. This effect can still be achieved even if you aren't using a center speaker. Select the level you like from "1" (low) to "5" (high).

    • This may not be available or the result may not be as expected depending on the input source and listening mode setting.
You can also adjust the sound quality with the following operations:
– Press TONE button and turn the dial on the main unit
– Using the Onkyo Controller ( →p143) app
