TX-RZ30 Basic Operations: HDMI CEC and Display

Using the linking function (HDMI CEC)

By using a HDMI cable and connecting to a TV that is compatible with the HDMI CEC (Consumer Electronics Control) function, you are able to perform operations such as adjusting the volume of this unit with the TV's remote controller and link power On/Off. Furthermore, if you have connected a Blu-ray
Disc player, Game consoler, etc. that is compatible with the HDMI CEC function, input switching is performed automatically.
• HDMI CEC settings ( →p121) (the default value is On)
• For information about the HDMI CEC functions of the TV, refer to the operating instructions, etc., for the TV.
• The unit is designed to link with products that comply with the CEC standard, and that linked operation is not always guaranteed with all CEC devices.
• For linked functions to work properly, do not connect CEC-compliant devices exceeding the connectable number to the HDMI jack as shown below.
– Blu-ray Disc/DVD players: up to 3 units
– Blu-ray Disc/DVD recorders: up to 3 units
– Cable TV tuner, terrestrial digital tuner, and satellite broadcasting tuner: up to 4 units

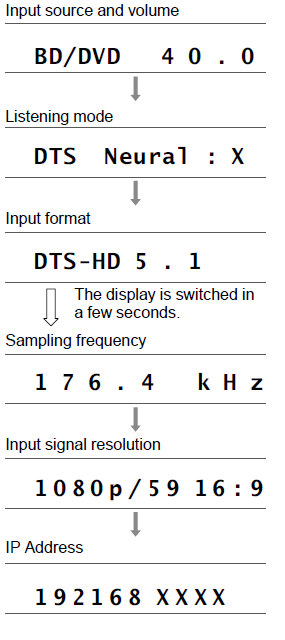

Switching the display                                                                    Repeatedly pressing the button on the remote controller switches the display of the main unit in the following order.
• The content displayed depends on the source, BLUETOOTH, etc., being played.
• Not all the information is necessarily displayed.
