TX-RZ30 Playing Back (ZONE 3)

• Analog play of the audio from externally connected AV components is possible.
• To use Zone 3 speakers, in the Setup menu, set "Speaker" - "Configuration" - "Zone Speaker" ( →p109) to "Zone 2/Zone 3".
• To use an integrated amplifier, in the Setup menu, set "Speaker" - "Configuration" ( →p108) to one of the following:
– Set "Speaker Channels" to "2.1 ch", "3.1 ch", "4.1 ch", or "5.1 ch"
– Set "Speaker Channels" to "2.1.2 ch", "3.1.2 ch", "4.1.2 ch", or "5.1.2 ch",
and set "Bi-Amp" and "Zone Speaker" to "No"
• You can only select the same source for the main room and separate room with the "NET", "BLUETOOTH" and "USB" input selectors. Furthermore,  if you have "NET" selected in the main room and you then select "BLUETOOTH" in the separate room, the main room will also switch to
"BLUETOOTH".
• If the audio signal is from the NET input selector, zone output is not possible for DSD and Dolby Atmos audio signals.
• It is not possible to select different stations in the main room and separate room with AM/FM broadcasts. (North American and Taiwanese models)
• DSD audio signals cannot be output to ZONE 3 with the "NET" input selector.
• If ZONE 3 is on, power consumption during standby will increase.
• This function turns off if you use "Transmitting audio from this unit to
BLUETOOTH wireless technology enabled devices" ( →p69).
Turning ZONE 3 On/Off

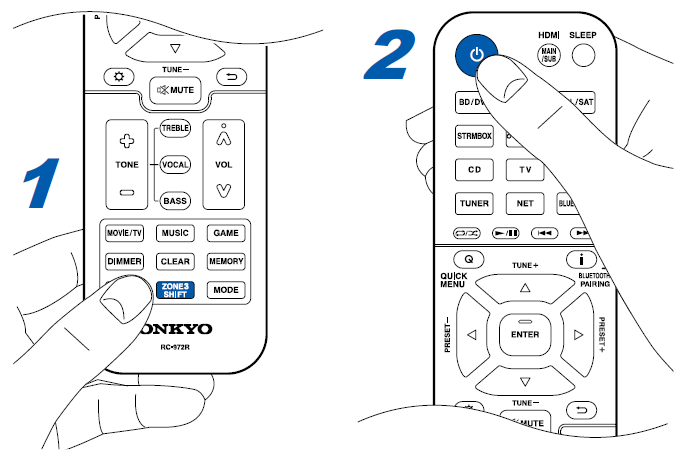

1. Face the remote controller at the unit, and while pressing and holding the ZONE 3 SHIFT button, press ON/STANDBY.
To control on the main unit, press the ZONE 3 button on the main unit. When turning off, within 8 seconds of pressing the ZONE 3 button, press the OFF button.

"Z3" lights in the main unit display when ZONE 3 turns on. To turn ZONE 3 off, repeat the same procedure.

• When the power of this unit is switched to standby while using ZONE 3, the Z3 indicator lights dimly, and the mode switches to play only in the separate room. Furthermore, the mode switches to play only in the separate room when this unit is in standby mode and ZONE 3 is turned on.

Selecting a source to play in ZONE 3

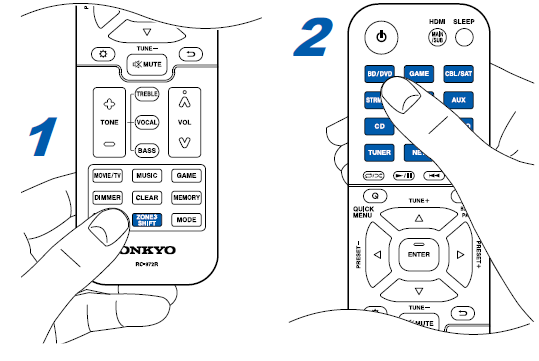

1. While pressing the ZONE 3 SHIFT button on the remote controller, press the input selector of the input you want to play in the separate room. To control on the main unit, press the ZONE 3 button on the main unit and then within 8 seconds press the input selector button of the input you want to play in the separate room.

Adjusting the volume in ZONE 3
When ZONE 3 speakers are used

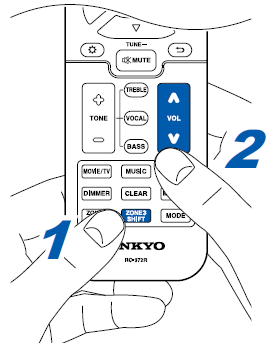

1. While pressing the ZONE 3 SHIFT button on the remote controller, adjust with the volume buttons. To control on the main unit, press the ZONE 3 button on the main unit and then within 8 seconds adjust with the MASTER VOLUME dial.

When using an Integrated amplifier in the separate room
1. Use the volume dial on the integrated amplifier to adjust the volume. When using an integrated amplifier that does not have a volume control, adjust using the same procedure described in "When ZONE 3 speakers are used".
• When connecting an integrated amplifier that does not have a volume control, in the Setup menu, set "Multi Zone" - "Zone 3" - "Output Level" ( →p132) to "Variable". If you do not set this, the volume output will be very loud and there is a danger of damage to the integrated amplifier, speakers, etc.
