TX-8270-Connecting Audio Components

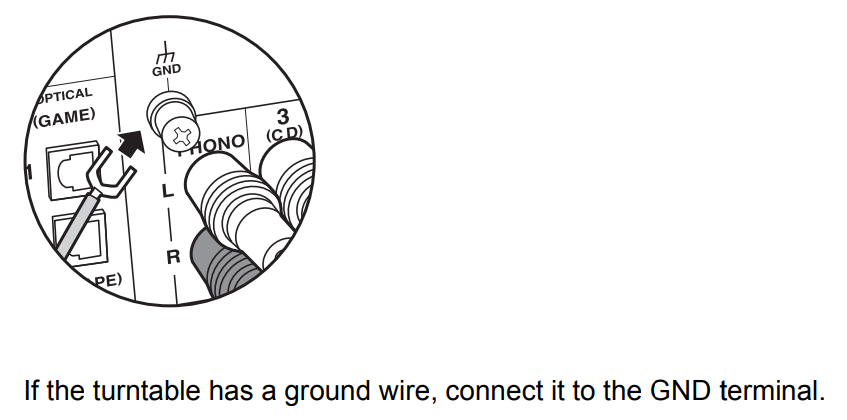

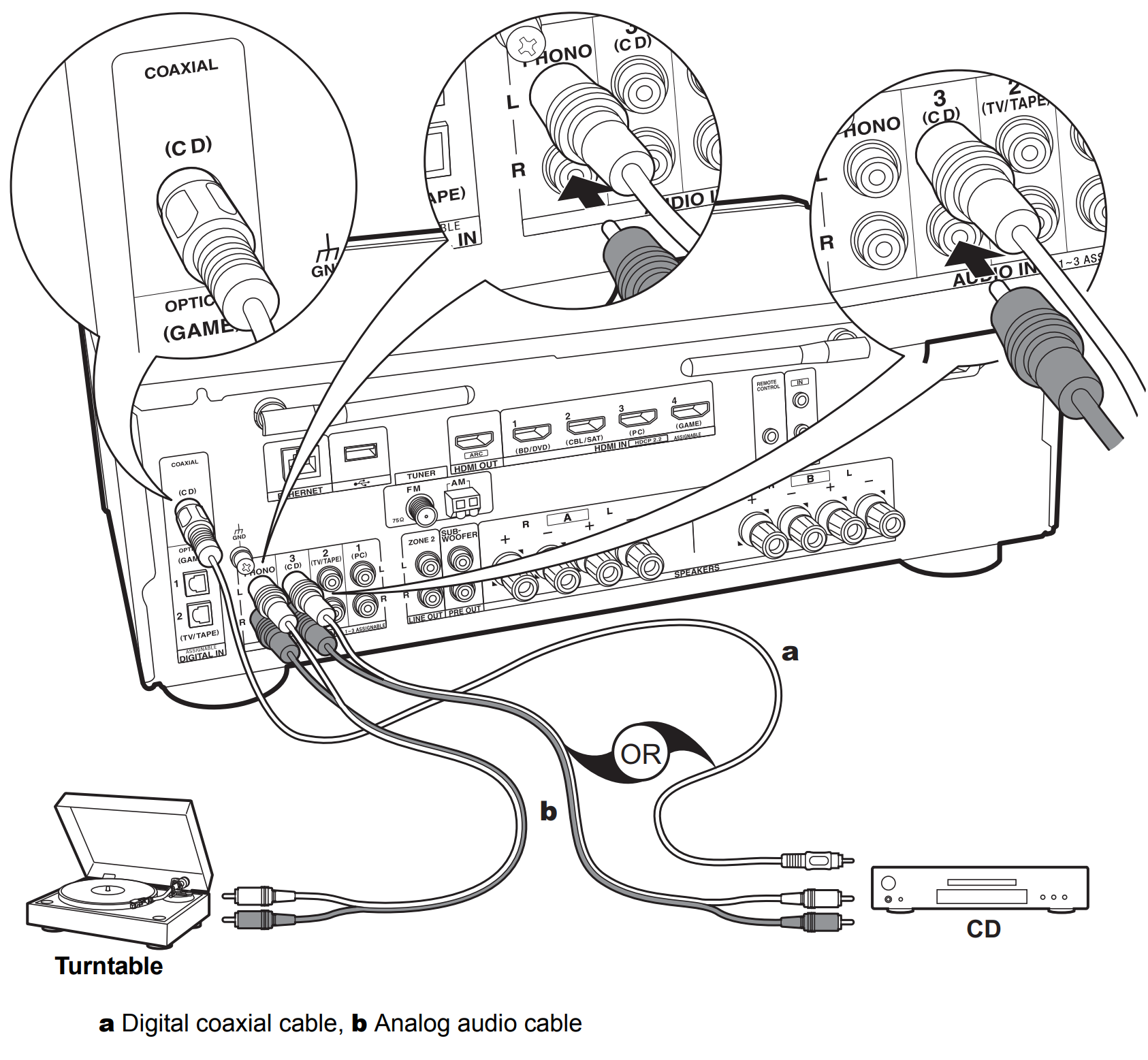

Example of a connection with an audio component. Connect a CD player using a digital coaxial cable or analog audio cable. You can connect a turntable that has an MM-type cartridge to the PHONO jack.

• If the turntable has a built-in audio equalizer, connect it to an AUDIO IN jack other than the PHONO jack. Also, if the turntable uses an MC type cartridge, install an audio equalizer compatible with the MC type cartridge between the unit and the turntable, then connect to any AUDIO IN jack other than the PHONO jack.

• By connecting an Onkyo component with RI jack to the unit by using an RI cable and an analog audio cable, you can link the unit’s power and input selection and enable operation with this unit’s remote controller. For details, refer to the instruction manual of the component with the
  RI jack.
  • Part of the function may not operate even if it is connected via RI depending on the equipment.
  • The RI dock function does not work if ZONE 2 is on.
  • When connecting an RI dock, you must rename the input selectors on the unit to make the system link work. Select the GAME input selector to display "GAME" on the main unit display. Then press and hold RETURN on the main unit for 3 seconds to switch the display to "DOCK".
