For European Models Only

Basic Operations

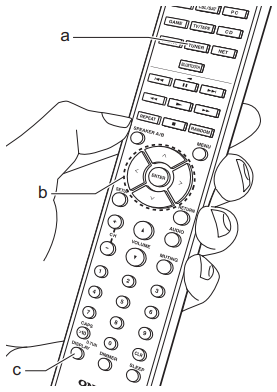

1. Repeatedly press TUNER (a) on the remote controller and select "DAB".

   The very first time you select DAB, the Auto Tuning function automatically scans the DAB Band 3 for the multiplexes (i.e., stations) available in your area. Once the scanning process is complete, the first station that was detected is selected.


2. Select the desired radio station with ^/v (b) on the remote controller

   If a new DAB station is introduced, or you move to a new area, press SETUP on the remote controller, then use the cursors and ENTER button to run the "DAB Auto Scan" in "7. Miscellaneous"-"Tuner".

Changing the Order Stations are Displayed

You can sort the available stations alphabetically or by multiplex.

1. Press TUNING MODE on the main unit repeatedly to set the method for sorting the display order from the following.

   Alphabet (default setting): Sort stations alphabetically
   Multiplex: Sort stations by multiplex

Displaying DAB Radio Information

Press the DISPLAY button (c) repeatedly to display more information about the selected DAB station.

DLS (Dynamic Label Segment): When tuned to a station that's broadcasting DLS text data, the text will scroll across the display
Program Type: Displays the type of program
Bit Rate and Audio Mode: Displays the station's bit rate and audio mode (Stereo, Mono)
Quality: Displays the signal quality

0 - 59: Poor reception
60 - 79: Good reception
80 - 100: Excellent reception
Multiplex Name: Displays the name of the current multiplex
Multiplex Number and Frequency: Displays the number and frequency of the current multiplex

Registering a Station

You can register up to 40 of your favorite radio stations.3

Registering

After tuning into the radio station you want to register, perform the following procedure.

1. Press MEMORY on the main unit so that the preset number on the display flashes

2. While the preset number is flashing (about 8 seconds), repeatedly press the cursor </> buttons (b) on the remote controller to select a number between 1 and 40.
3. Press MEMORY again on the main unit to register the station

   When the station is registered, the preset number stops flashing. Repeat
   this procedure for all of your favorite radio stations.

Selecting a Preset Radio Station

1. Press TUNER (a) on the remote controller
2. Press the cursor </> buttons (b) on the remote controller to select a preset number

Deleting a Preset Radio Station

1. Press TUNER (a) on the remote controller
2. Press the cursor </> buttons (b) on the remote controller to select the preset number to delete
3. While pressing MEMORY on the main unit, press TUNING MODE to delete the preset number.

   When deleted, the number on the display goes off.

Registering stations in the BGM Buttons

You can register up to 4 of your favorite radio stations to the BGM buttons on the main unit. By registering to BGM buttons, you can start reception with one press of a button.

After tuning into the radio station you want to register, perform the following procedure.

1. Press and hold one of the BGM buttons 1 to 4 on the main unit.

   "Preset Written" is displayed on the display and the station being received is registered. If there is already a radio station registered, it is replaced.

• Press the BGM buttons 1 to 4 to listen to the stations you have preset. If you press these buttons when the unit is in standby mode, it comes on and starts receiving the station.
