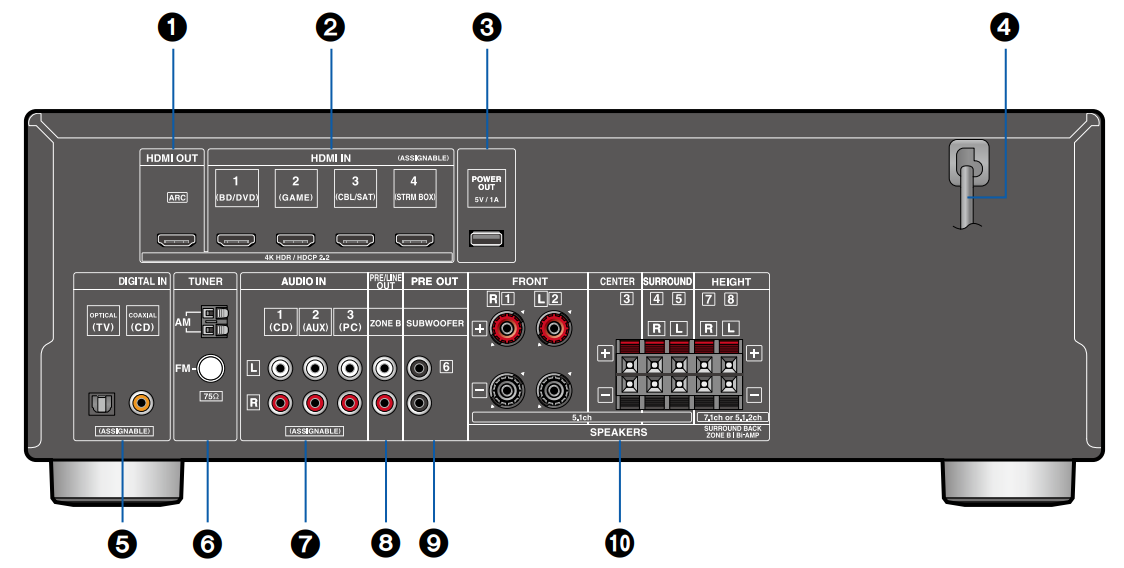

HDMI OUT Jacks: Transmit video signals and audio signals with an HDMI cable connected to a TV.
HDMI IN Jacks: Transmit video signals and audio signals with an HDMI cable connected to an AV component.
POWER OUT Port: You can also supply power (5 V/1 A) to the Streaming media player connected to the HDMI IN terminal of this unit with a USB cable. The playback function of music files and power supply to smart phones/tablets, or other devices are not supported.
Power cord
DIGITAL IN OPTICAL/COAXIAL Jacks: Input TV or AV component digital audio signals with a digital optical cable or digital coaxial cable.
TUNER AM/FM Terminal: Connect the supplied antennas.
AUDIO IN Jacks: Input TV or AV component audio signals with an analog audio cable.
ZONE B PRE/LINE OUT Jacks: Output audio signals with an analog audio cable connected to a pre-main amplifier or a power amplifier in a separate room (ZONE B).
SUBWOOFER PRE OUT Jacks: Use the subwoofer cable to connect the supplied powered subwoofer. A maximum of two powered subwoofers can be connected. (Purchase a second powered subwoofer separately.) The same signal is output from each SUBWOOFER PRE OUT jack.
SPEAKERS Terminals: Connect the supplied speakers with speaker cables. (FRONT L/R terminals support banana plugs.)
