HT-S5910 - Front and Height Speakers

The supplied Front & Height Speakers are designed as a system with Dolby enabled speakers, a type of height speaker, added to their top panels.

Dolby enabled speakers are special speakers designed to face the ceiling, so that the sound is heard from overhead by bouncing the sound off the ceiling. The Front
& Height Speakers have left and right designations. Place the speaker labeled “LEFT” on its back on the left side as you face the front of your listening area, and place the speaker labeled “RIGHT” on its back on the right side of the listening area.

The grille net cannot be removed.

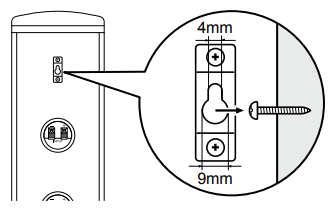

• Wall mount hole: the speaker system may be mounted to a wall by suspending speakers on wooden screw using the wall mount hole.

  Wooden wall mount screw is not included. Please consult with a construction service personnel and prepare screw considering its type, material, and length so it provides sufficient support. Moreover, please also install a reinforcement panel, anchor, etc. if necessary.

  Our company bears no responsibility in the case of accident or injury sustained due to improper installation, insufficiently mounting, misuse, natural disaster, etc.




• Speaker jack (for Height Speaker): Use the included speaker cable to connect to the main unit.


• . Speaker jack (for Front Speaker): Use the included speaker cable to connect to the main unit.


• Do not place objects on the speaker system. The speaker system may drops or fall over by losing balance and may cause an injury.
