Speaker Impedance

When using all supplied speakers, setup explained in this section is not required. When using speakers sold separately, use speakers with impedance of 4 Ω to 16 Ω.

If any of the speakers to be connected has an impedance of 4 Ω or more and less than 6 Ω, set "Speaker Impedance" to "4 ohms" for "Speaker Setup" in the Initial Setup section.  When setting "Speaker Impedance" from the Setup menu, press on the remote controller, and set "2. Speaker" - "Configuration" - "Speaker Impedance" to "4 ohms".

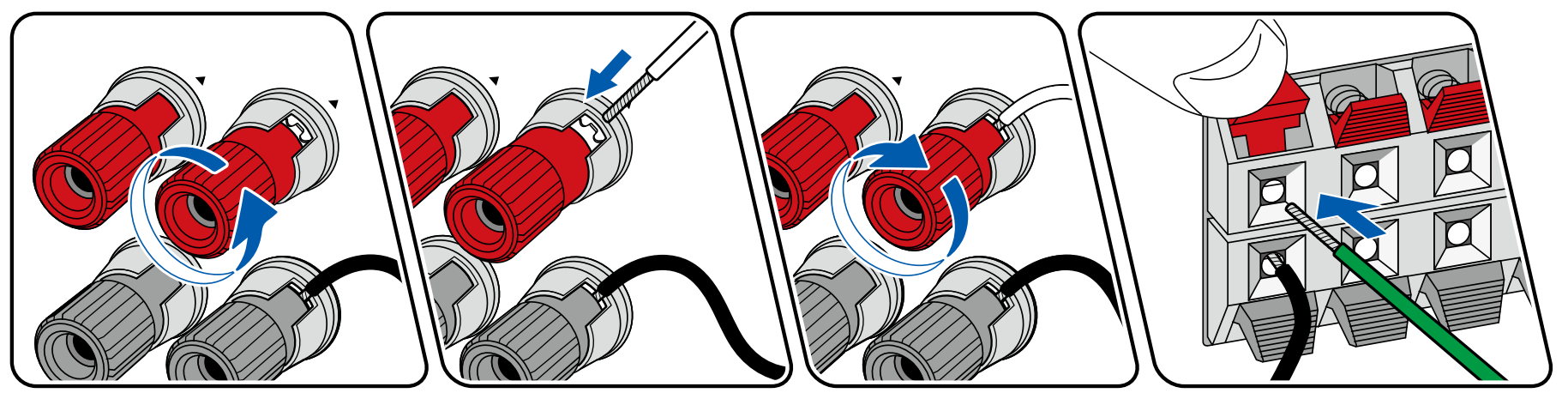

Connecting the Speaker Cables

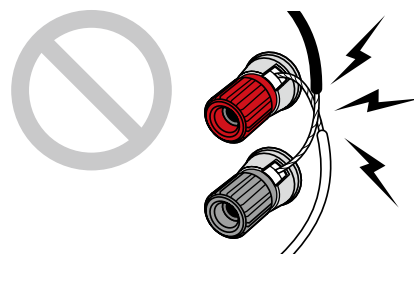

Make correct connection between the unit's jacks and speaker's jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass sound will not be reproduced properly due to reverse phase. The wires exposed from the tip of the speaker cable do not stick out of the speaker terminal when connecting. If the exposed wires touch the rear panel, or the + side and - side wires touch each other, a malfunction may occur.

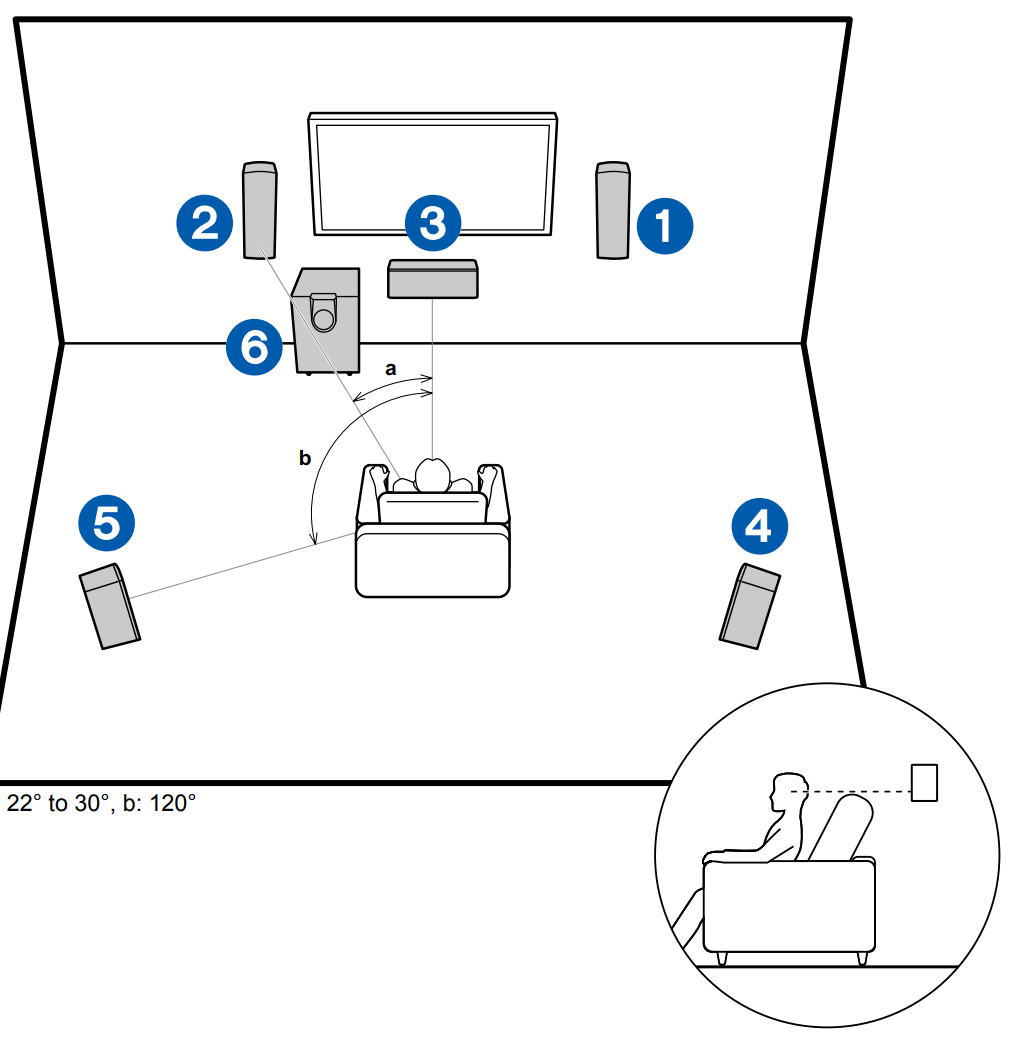

5.1 Channel System

Front speakers output the front stereo sound, and a center speaker outputs the sound of the center of the screen, such as dialogs and vocals. Surround speakers create the back sound field. Powered subwoofer reproduces the bass sound, and creates the rich sound field.

The front speakers should be positioned at ear height while the surround speakers should be positioned just above ear height. The center speaker should be set up facing the listening position at an angle. Placing the powered subwoofer between the center speaker and the front speaker gives you a natural
sound even when playing music sources.

1,2 Front Speakers*
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer

* The terminals for the height speakers are not used when the supplied Front & Height Speakers are to be used as front speakers to build a 5.1 Channel System.

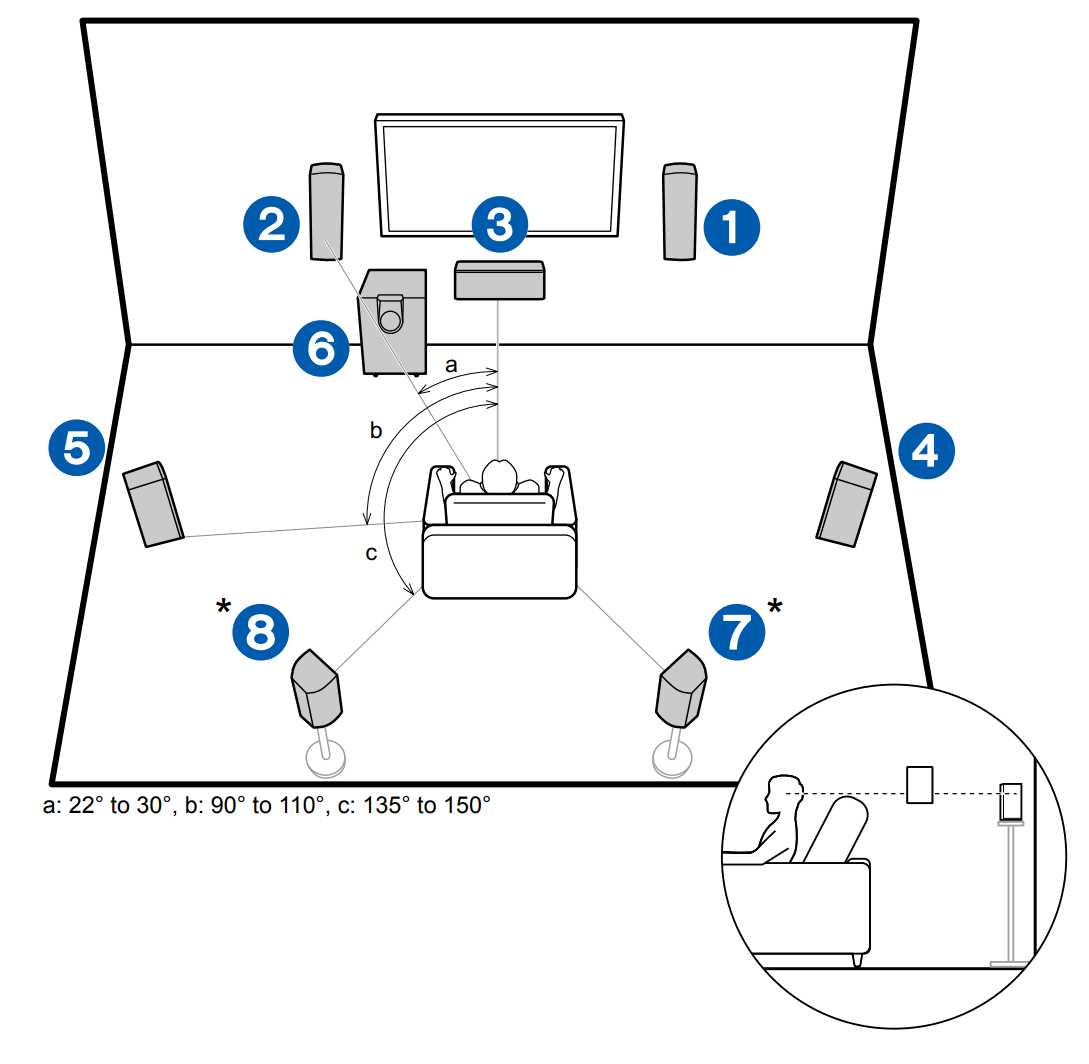

7.1 Channel System

Front speakers output the front stereo sound, and a center speaker outputs the sound of the center of the screen, such as dialogs and vocals. Surround speakers create the back sound field. Powered subwoofer reproduces the bass sound, and creates the rich sound field. Surround back speakers improves the sense of envelopment and connectivity of sound in the back sound field, and provides a more real sound field.

The front speakers should be positioned at ear height while the surround speakers should be positioned just above ear height. The center speaker should be set up facing the listening position at an angle. Placing the powered subwoofer between the center speaker and the front speaker gives you a natural
sound even when playing music sources. The surround back speakers should be positioned at ear height.

• If surround back speakers are installed, be sure to install surround speakers as well.

1,2 Front Speakers*1
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer
7,8 Surround Back Speakers*2
*1 The terminals for the height speakers are not used when the supplied Front
& Height Speakers are to be used as front speakers to build a 7.1 Channel
System.
*2
Optional items

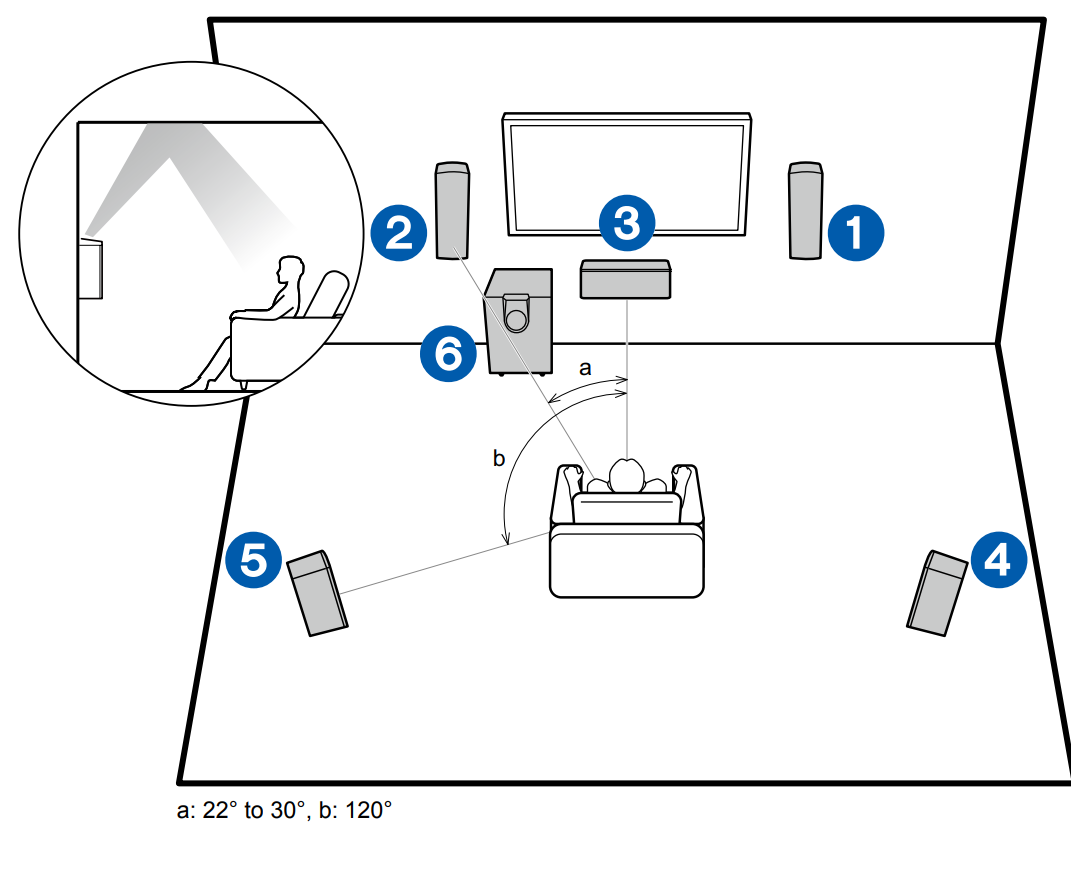

5.1.2 Channel System

This is a 5.1.2 channel system where the entire supplied speaker system is connected.  The Front & Height Speakers have Dolby enabled speakers, which are types of height speakers, built into the top part of them, and they face the ceiling so that sound is heard after bouncing off the ceiling so that sound appears to be coming from overhead.

The front & height speakers should be positioned at ear height while the surround speakers should be positioned just above ear height. The center speaker should be set up facing the listening position at an angle. Placing the powered subwoofer between the center speaker and the front & height speaker gives you a natural sound even when playing music sources.

1,2 Front & Height Speakers
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer

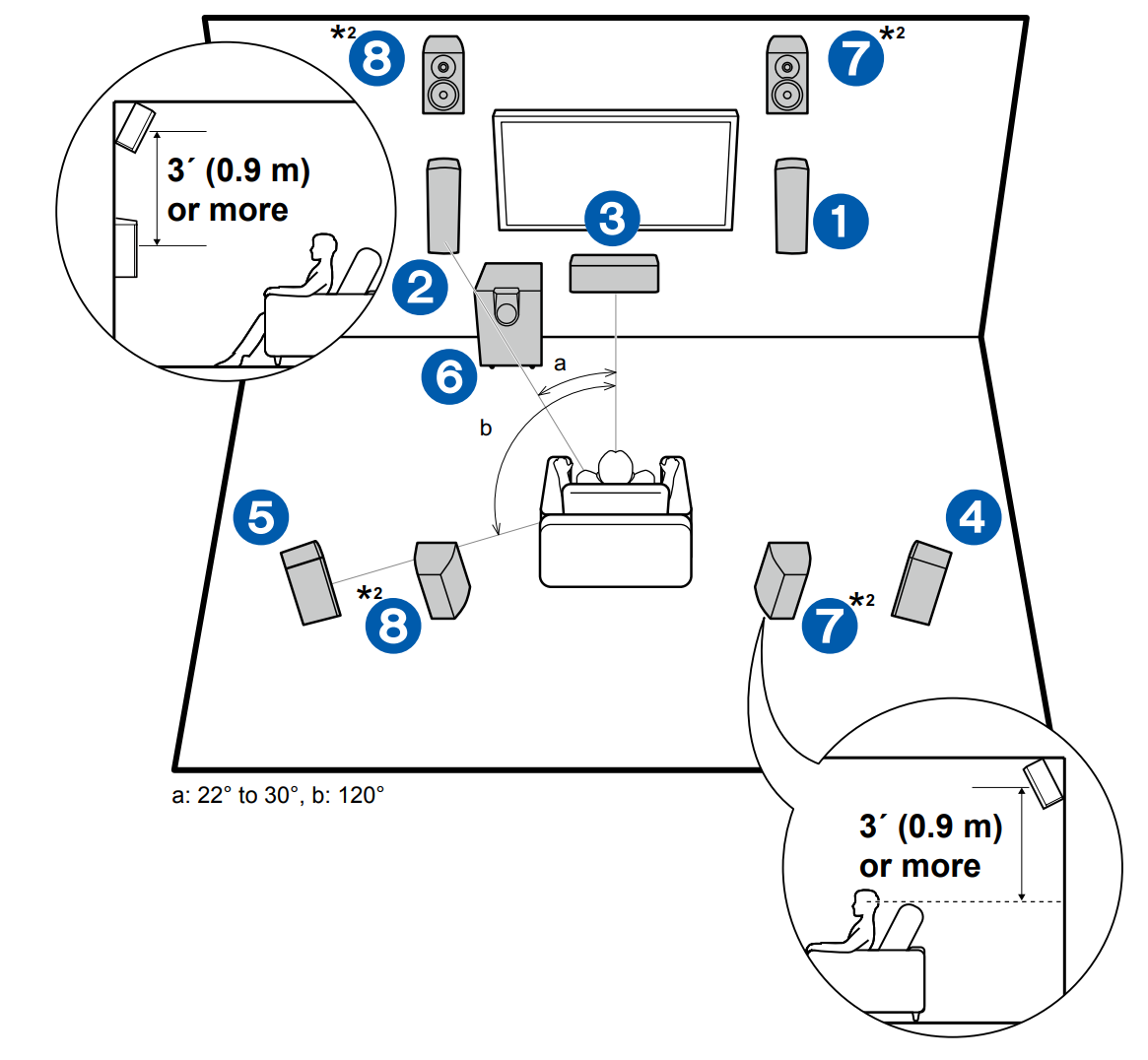

This is a 5.1.2 Channel System that combines the supplied speaker system with separately available front high speakers or rear high speakers.  The front speakers should be positioned at ear height while the surround speakers should be positioned just above ear height. The center speaker should be set up facing the listening position at an angle. Placing the powered subwoofer between the center speaker and the front speaker gives you a natural sound even when playing music sources. Front high speakers should be installed directly above the front speakers, and the distance between the rear high speakers should match the distance between the front speakers. In both cases, the speakers should be set up facing the listening position at an angle.

1,2 Front Speakers*1
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer
7,8 Height Speakers*2
Choose one of the following:
• Front High Speakers
• Rear High Speakers
*1
The terminals for the height speakers are not used when the supplied Front
& Height Speakers are to be used as front speakers to build a 5.1.2 Channel
System.
*2
Optional items

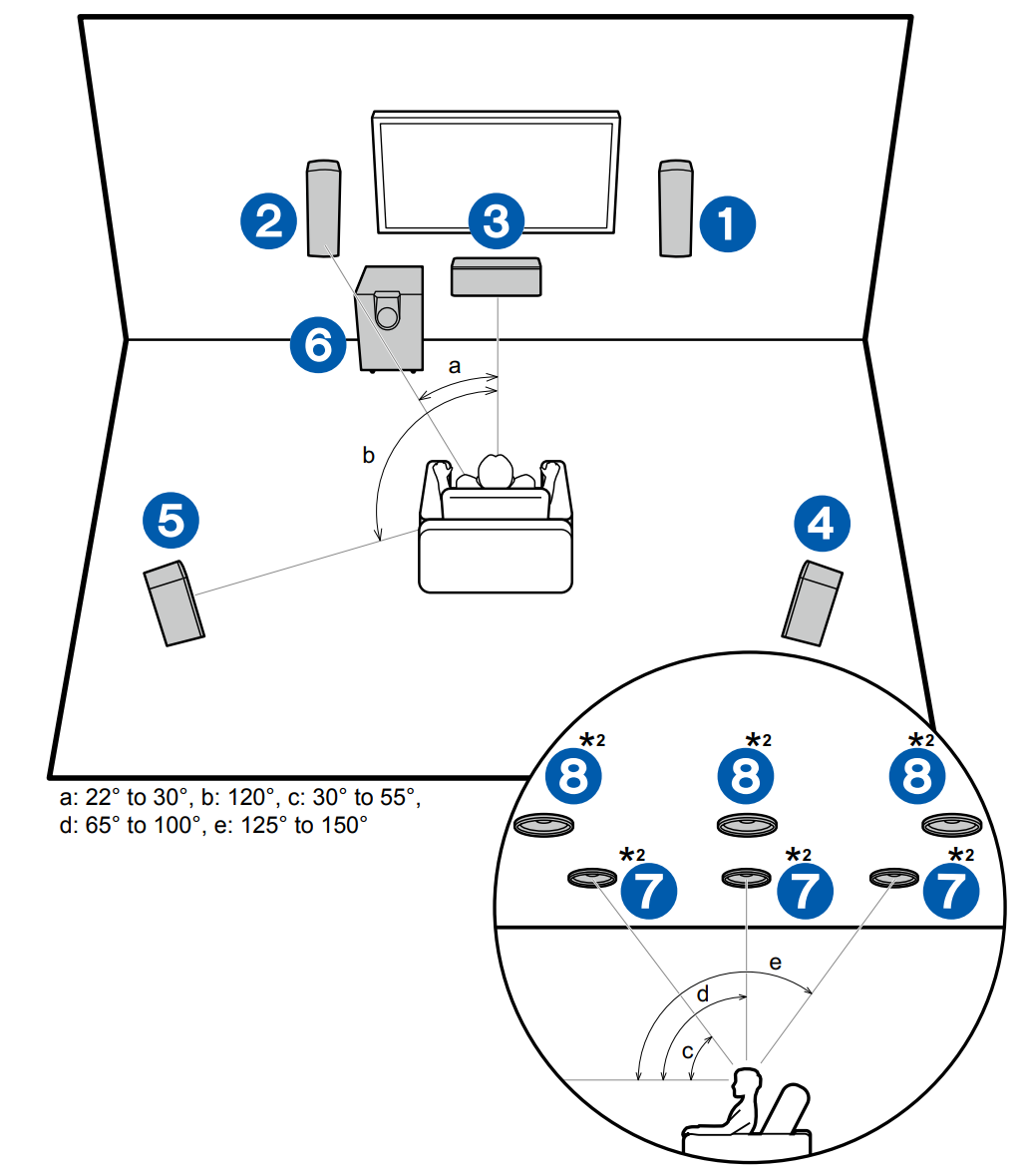

This is a 5.1.2 Channel System that combines the supplied speaker system with separately available top front speakers, top middle speakers, or top rear speakers.  The front speakers should be positioned at ear height while the surround speakers should be positioned just above ear height. The center speaker
should be set up facing the listening position at an angle. Placing the powered subwoofer between the center speaker and the front speaker gives you a natural sound even when playing music sources. Install the top front speakers on the ceiling anterior to the seating position, top middle speakers on the ceiling directly above the seating position, and top rear speakers on the ceiling posterior to the seating position. The distance between each pair should match the distance between the front speakers.

• Dolby Laboratories recommends the setups of these types of height speakers to obtain the best Dolby Atmos effect.

1,2 Front Speakers*1
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer
7,8 Height Speakers*2
Choose one of the following:
• Top Front Speakers
• Top Middle Speakers
• Top Rear Speakers
*1
The terminals for the height speakers are not used when the supplied Front
& Height Speakers are to be used as front speakers to build a 5.1.2 Channel
System.
*2
Optional items

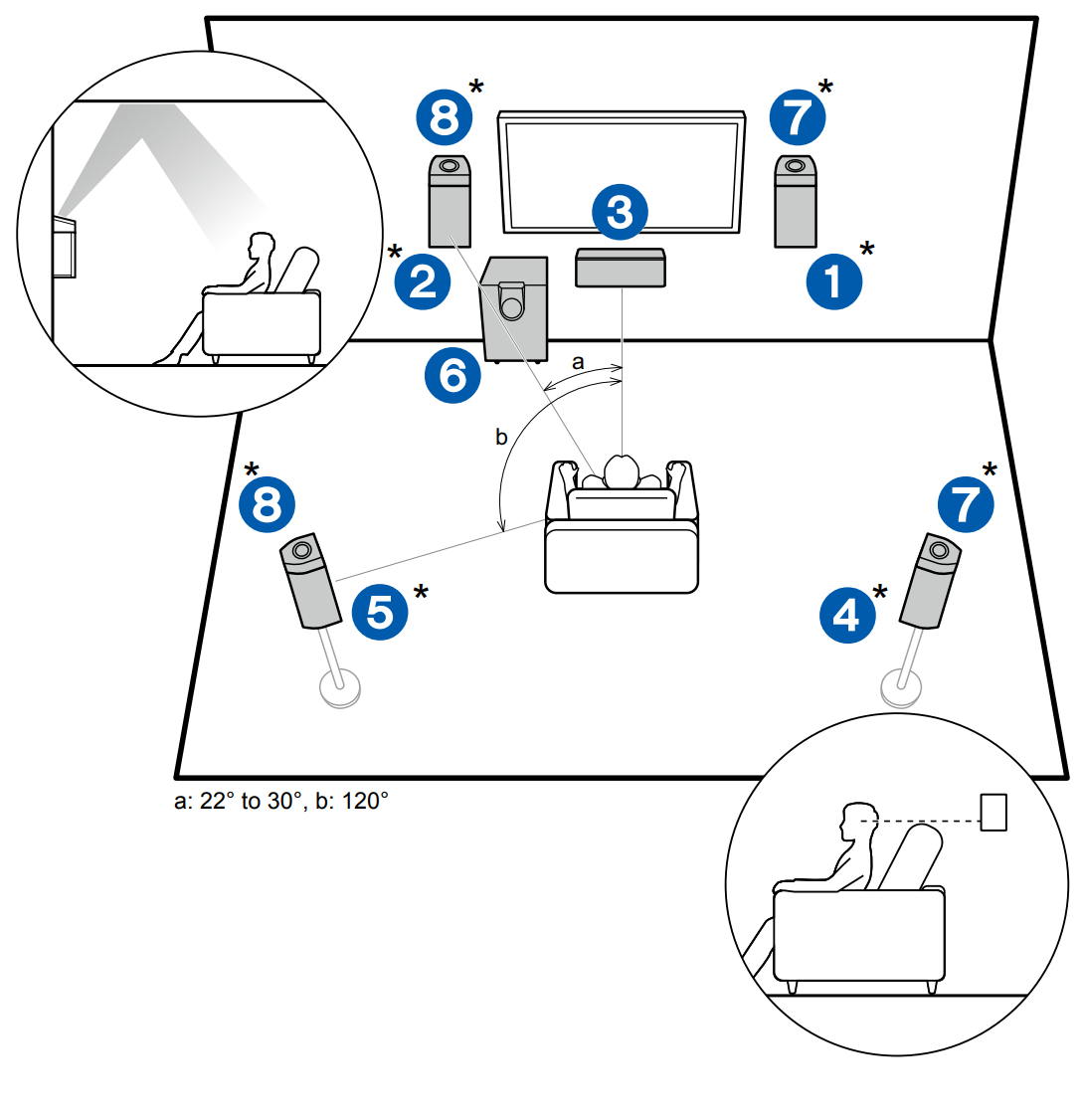

This is a 5.1.2 Channel System that uses the supplied center speaker and powered subwoofer in combination with a separately available speaker system.  Dolby enabled speakers, which are types of height speaker, are special speakers designed to face the ceiling so that sound is heard after bouncing off the ceiling so that sound appears to be coming from overhead.

The front speakers should be positioned at ear height while the surround speakers should be positioned just above ear height. The center speaker should be set up facing the listening position at an angle. Placing the powered subwoofer between the center speaker and the front speaker gives you a natural sound even when playing music sources.  Place the Dolby enabled speakers (front) or Dolby enabled speakers (surround) on top of the separately available front speakers or surround speakers.

1,2 Front Speakers*
3 Center Speaker
4,5 Surround Speakers*
6 Powered Subwoofer
7,8 Height Speakers*
Choose one of the following:
• Dolby Enabled Speakers (Front)
• Dolby Enabled Speakers (Surround)
* Optional items
