HT-S5910 - Input Formats and Selectable Listening Modes

You can select a variety of listening modes according to the audio format of the signal to be input.

  • Selectable listening modes with the STEREO button are Stereo and AllCh Stereo only.

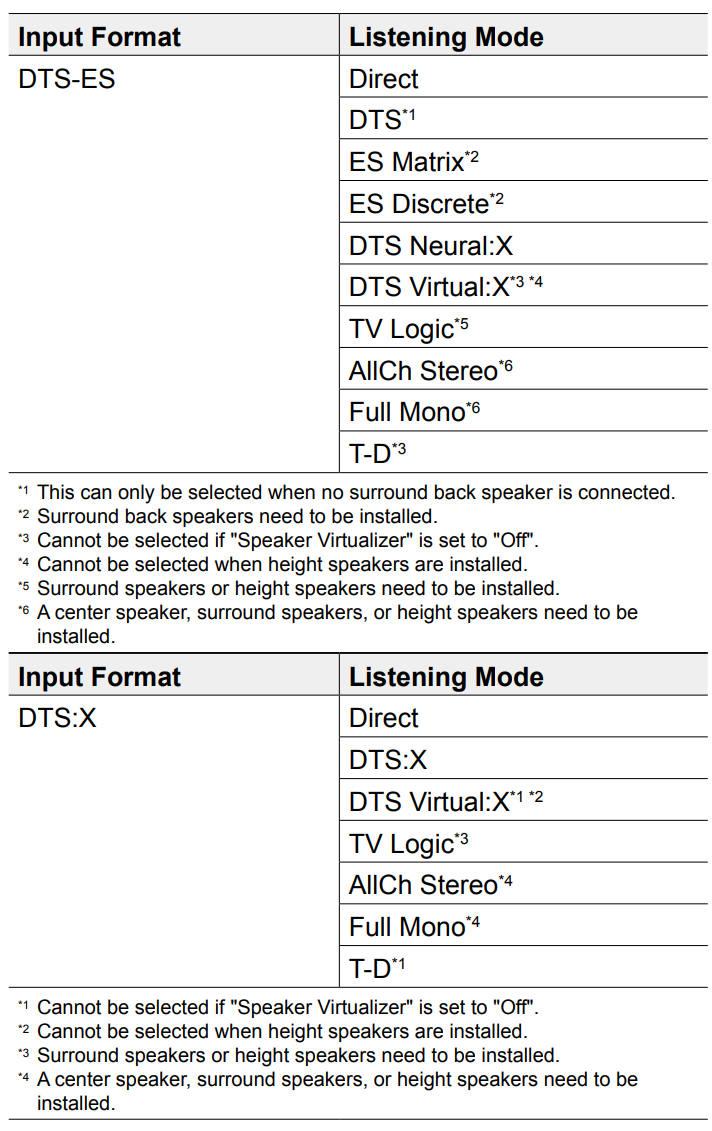

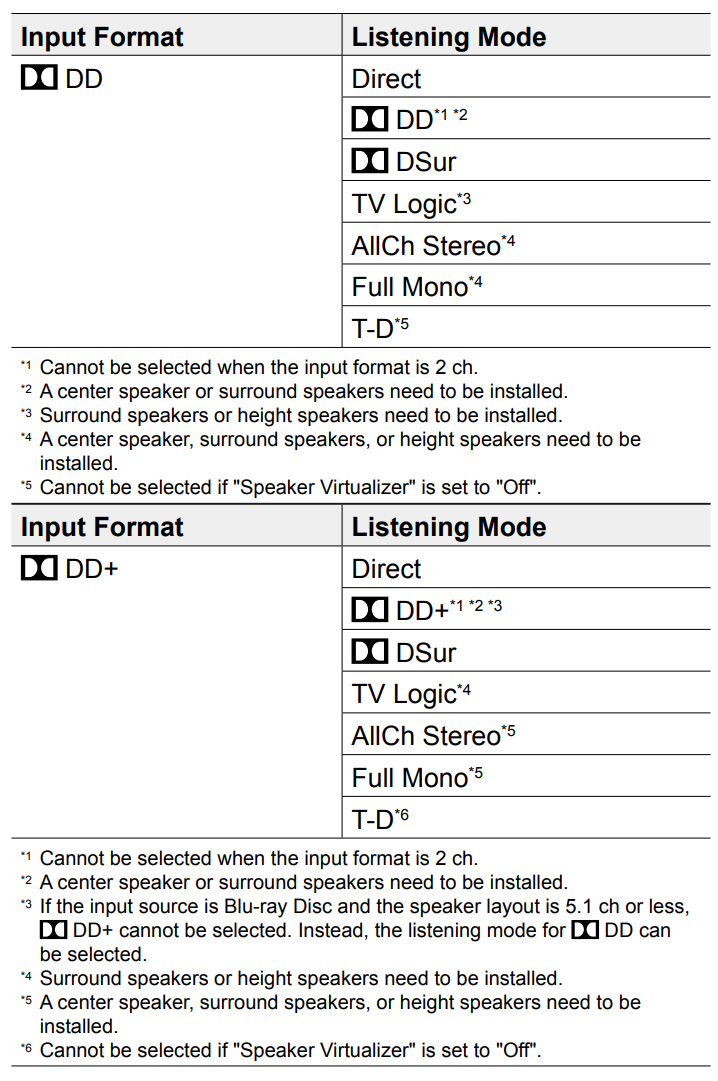

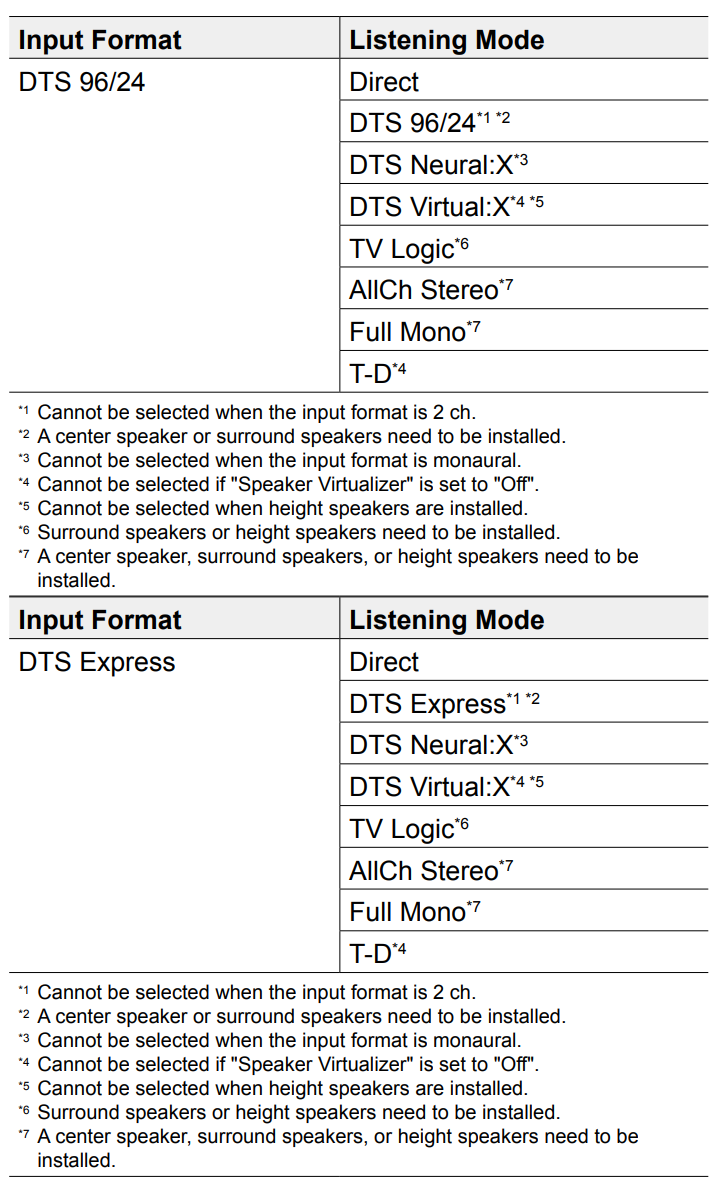

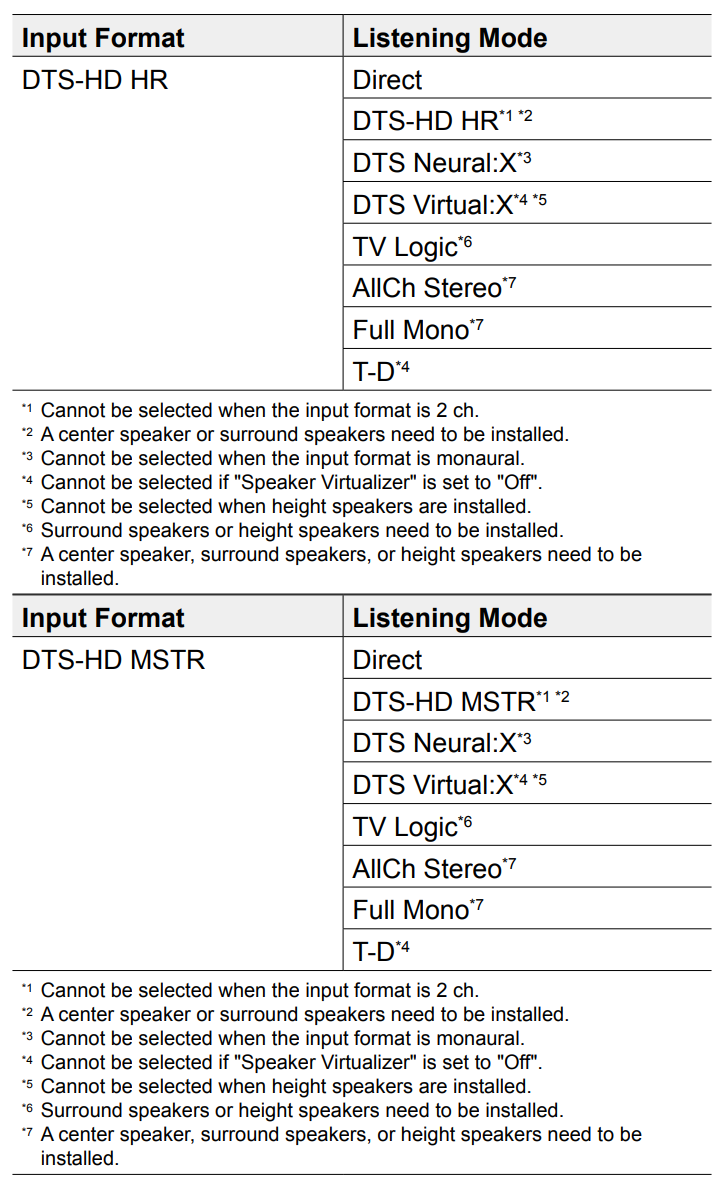

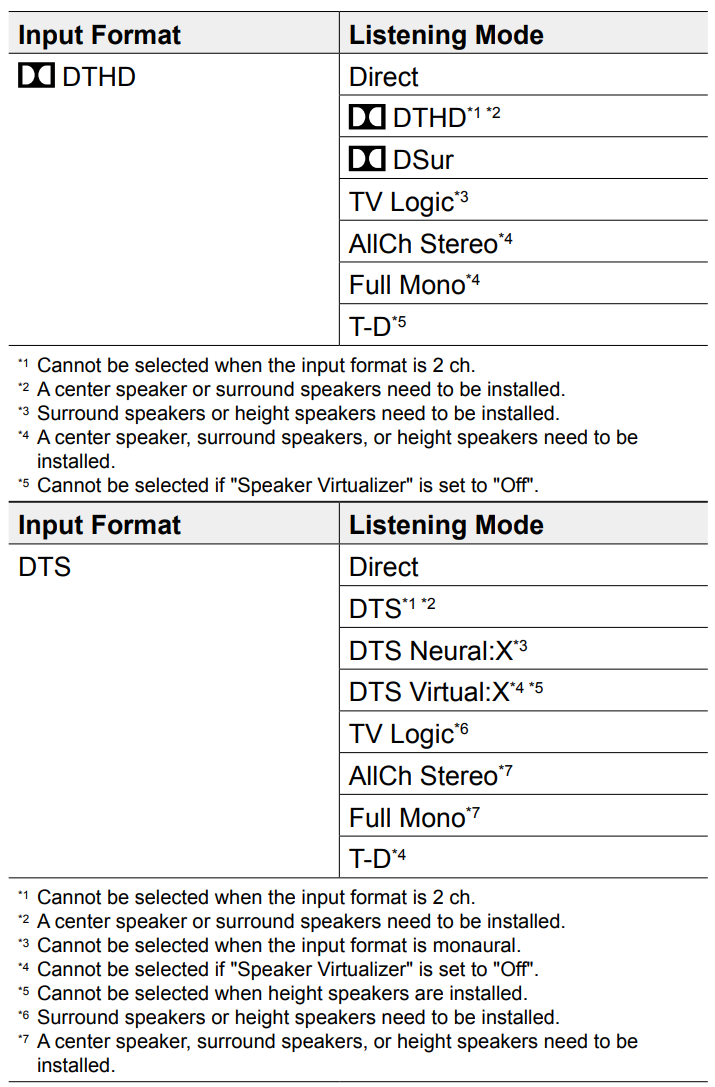

  • List of listening modes selectable with the MOVIE/TV button.

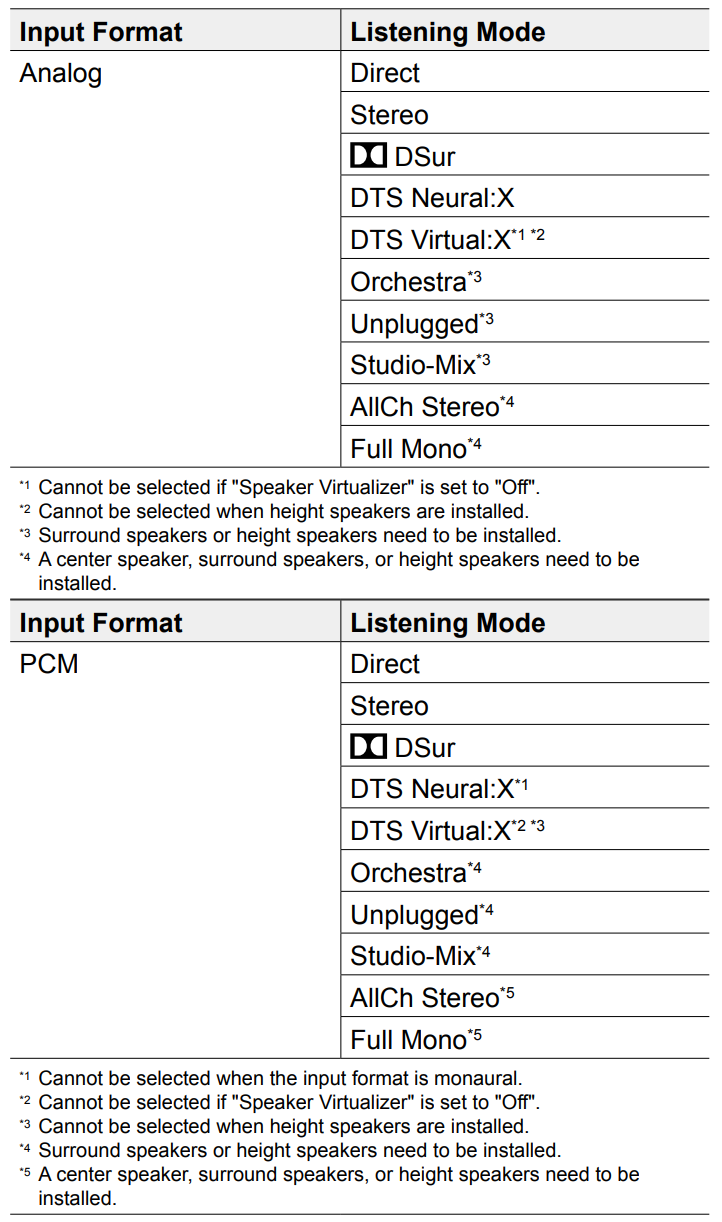

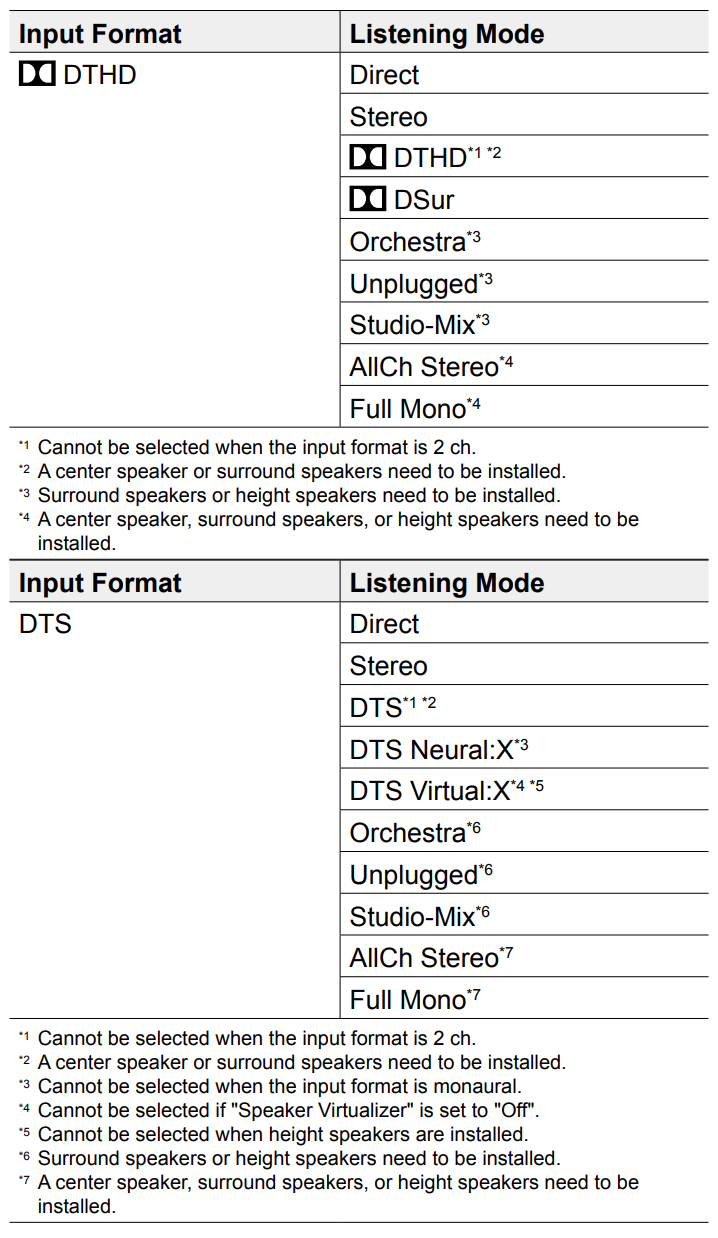

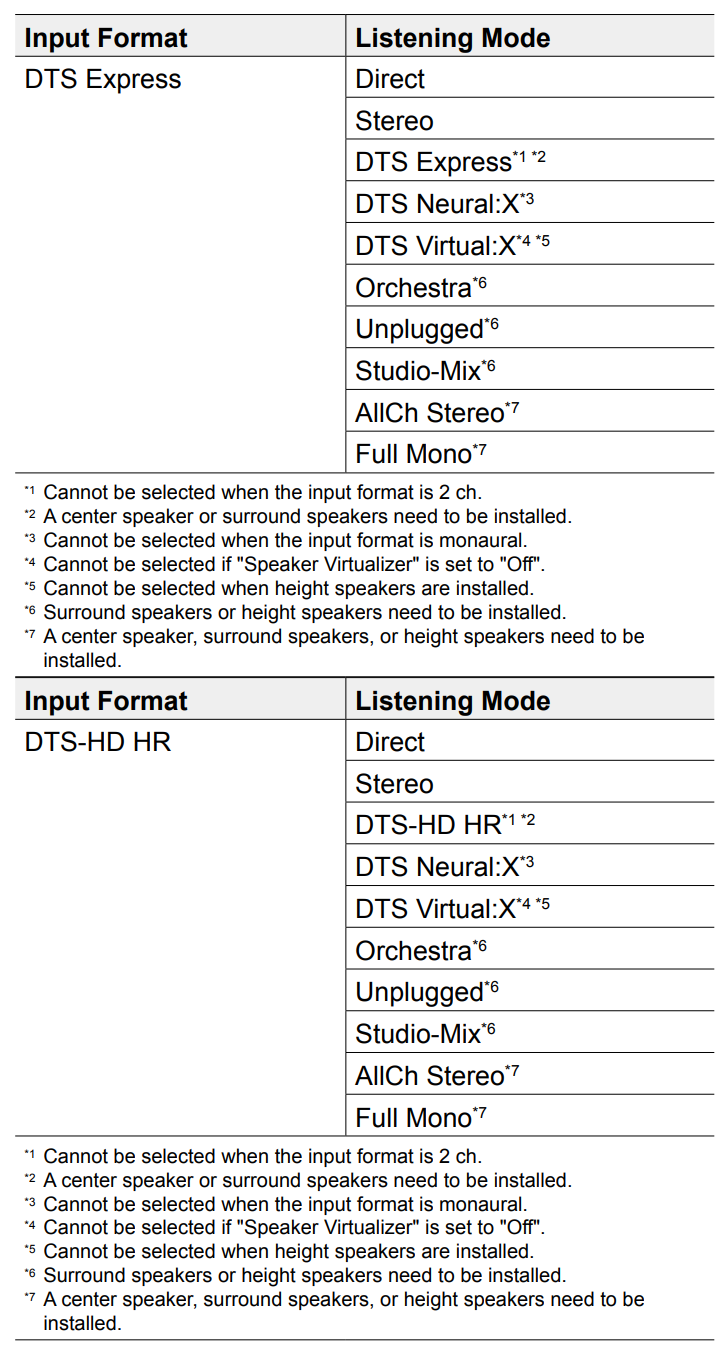

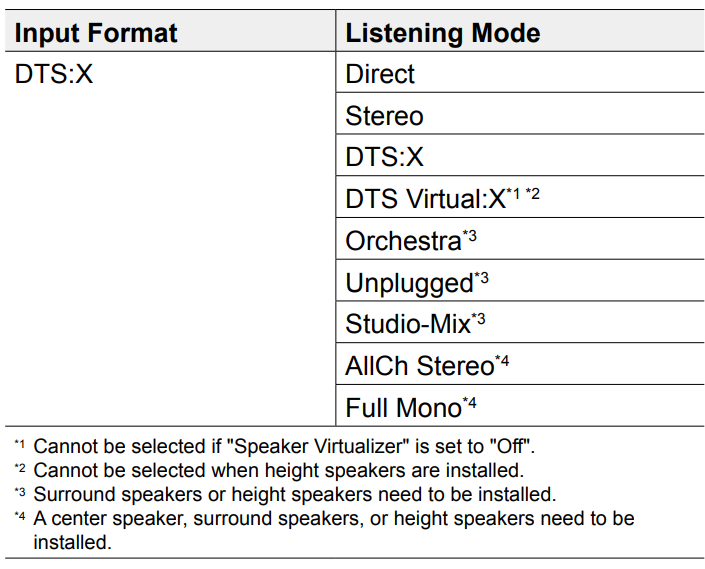

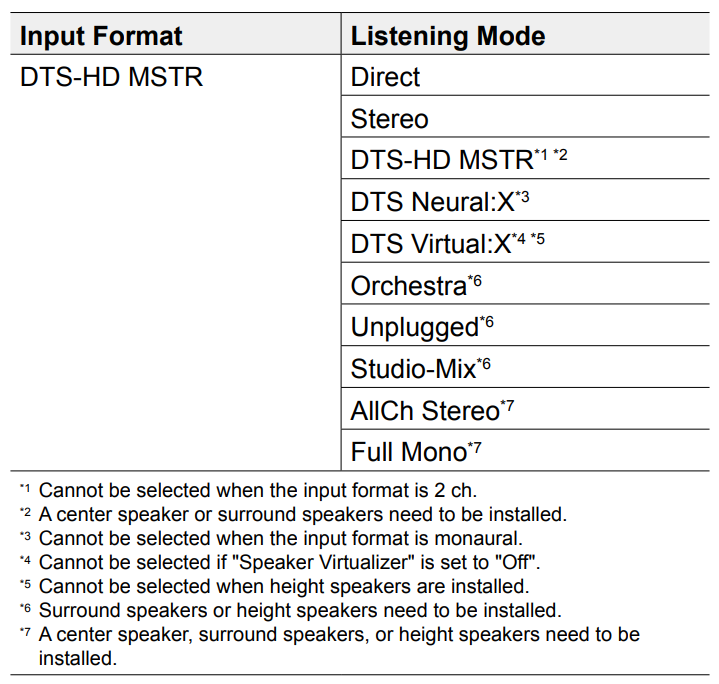

  • List of listening modes selectable with the MUSIC button.
  • Selectable listening modes when headphones are connected are Mono, Direct, and Stereo only.

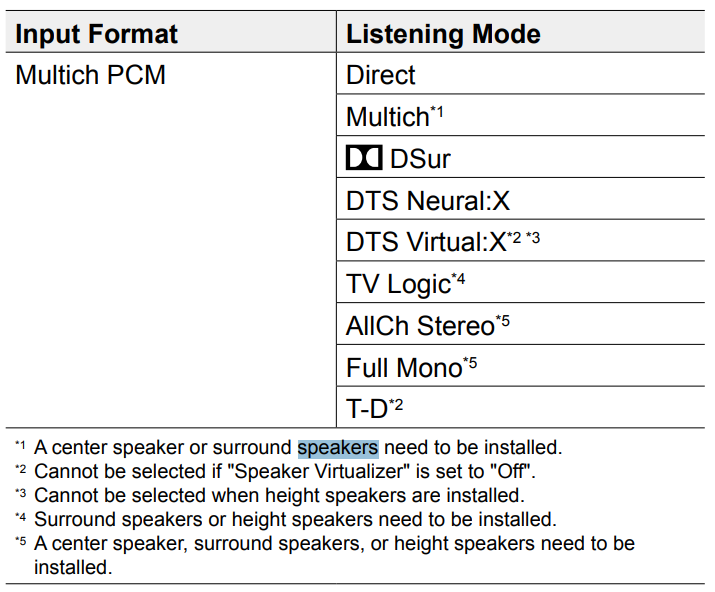

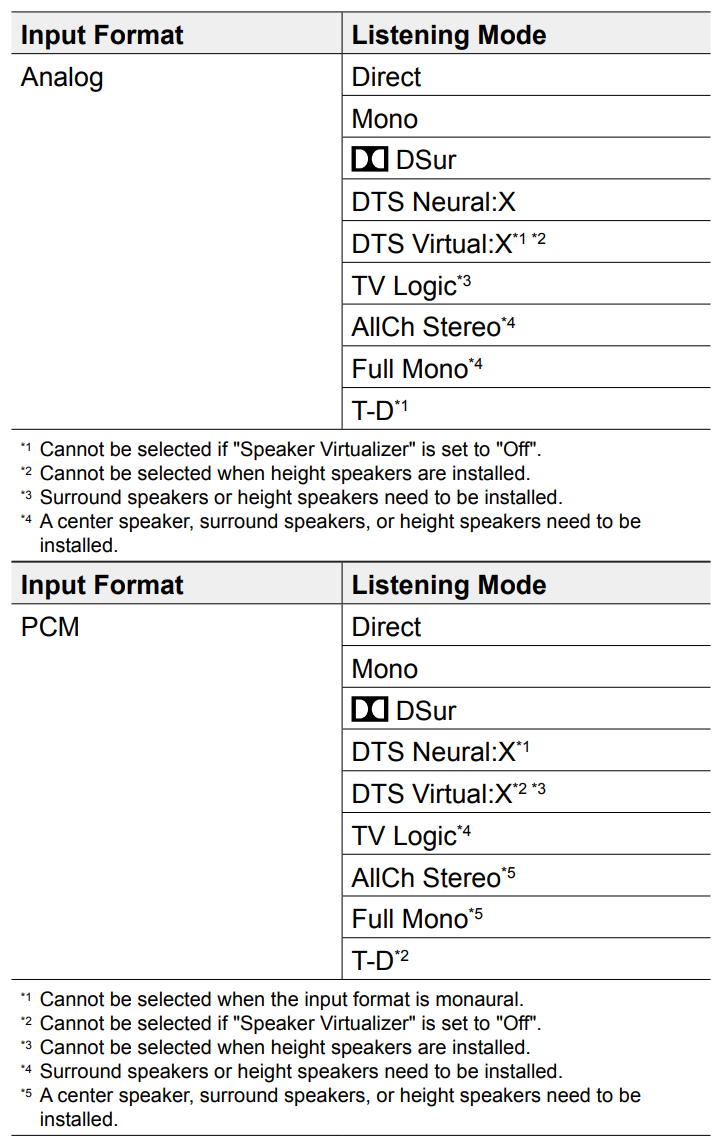

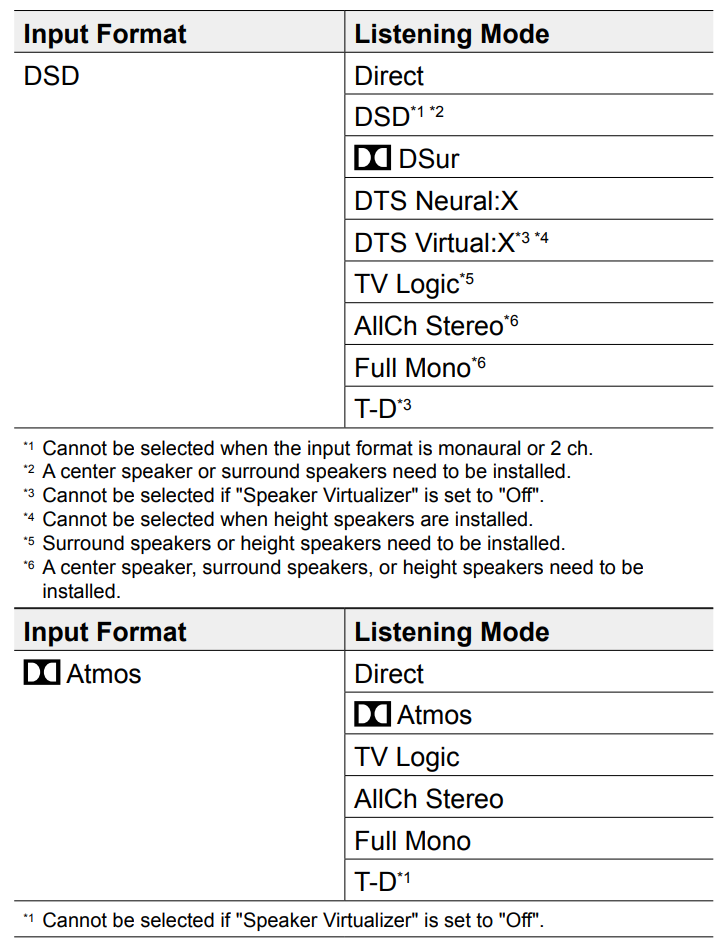

Movie/TV Button

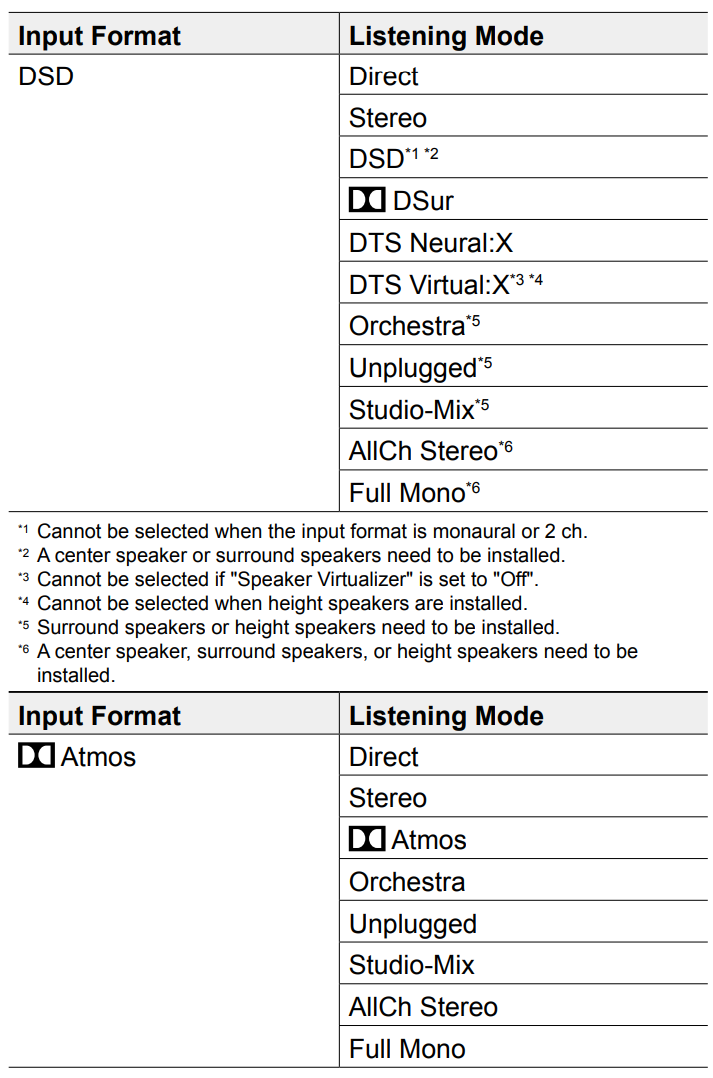

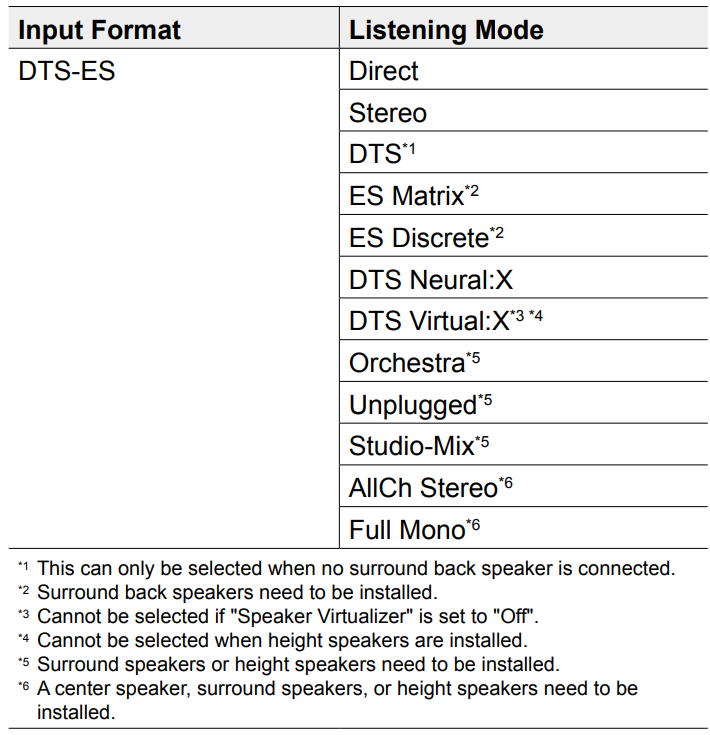

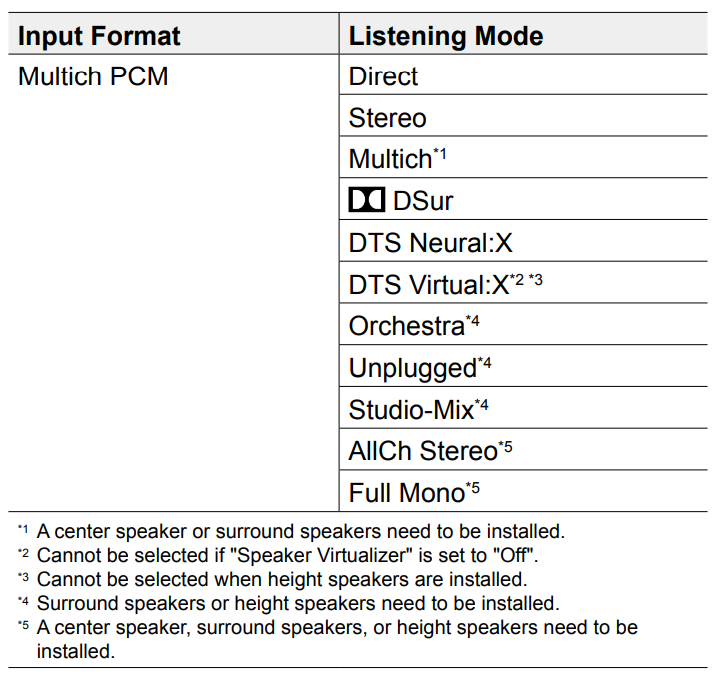

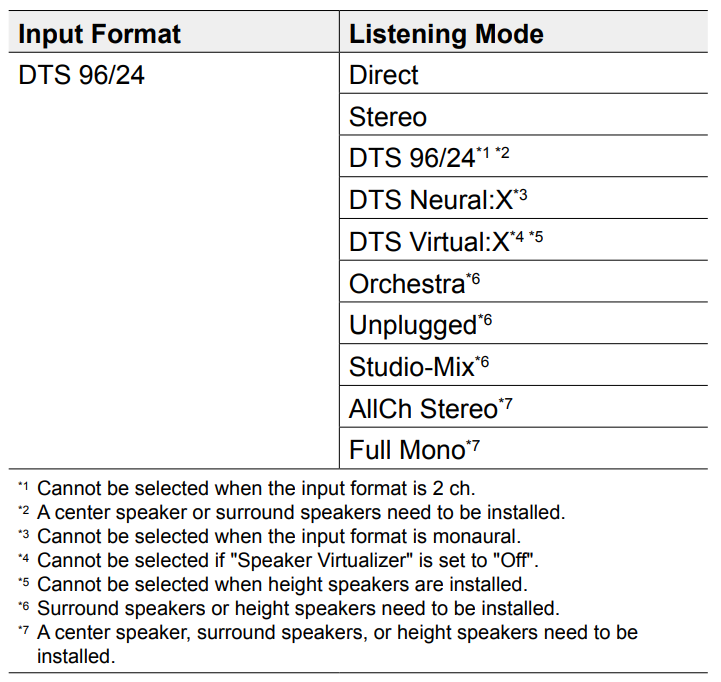

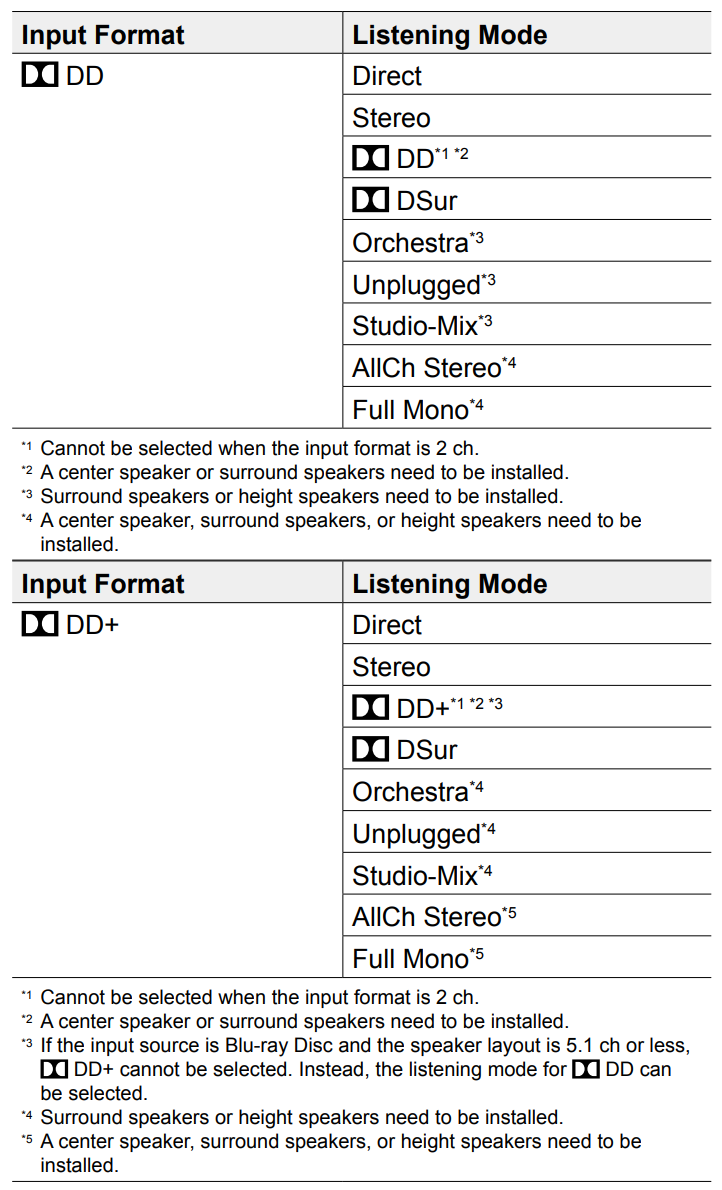

Music Button
