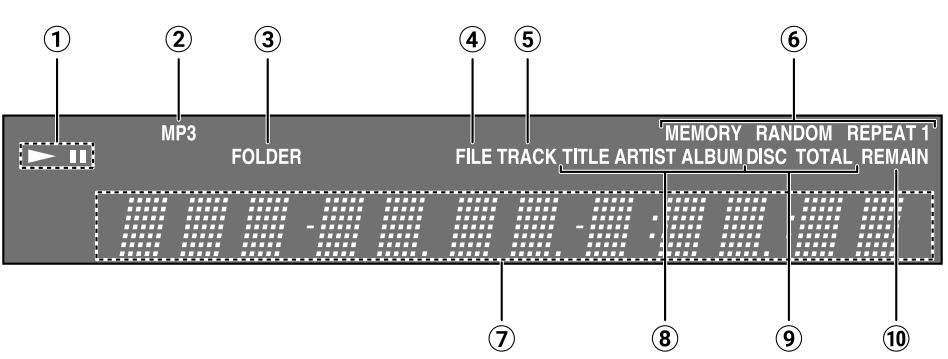

C-30 Display

indicators

The indicator lights up for playback.

The indicator lights up while playback is paused.

MP3 indicator Lights up when an MP3 CD is loaded.

FOLDER indicator Lights up when folder playback is selected.

FILE indicator Lights up when an MP3 file number is being displayed.

TRACK indicator Lights up when a CD track number is being displayed.

Playback mode indicators

"MEMORY" lights up when memory playback is selected.

"RANDOM" lights up when random playback is selected.

"REPEAT" lights up when repeat playback is selected for all tracks.

"REPEAT 1" lights up when repeat playback is selected for one track.

Message area Various information is displayed here.

TITLE, ARTIST, and ALBUM indicators

"TITLE" lights up when the title (ID3 tag) of an MP3 track is being displayed.

"ARTIST" lights up when the artist name from an MP3 track (ID3 tag) is being displayed. "ALBUM" lights up when the album name from an MP3 track (ID3 tag) is being displayed.

DISC, TOTAL indicators  This indicator lights up when the remaining disc time or track time is being displayed.

REMAIN indicator Lights up when folder playback is selected.
