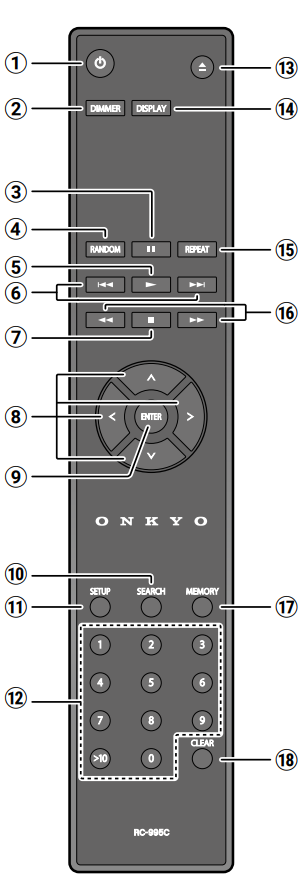

C-30 Remote Controller

button Press to turn on or standby the C-30.

DIMMER button ( →p16) Press to adjust the display brightness.

Pause button Lights up when an MP3 CD is loaded.

RANDOM button ( →p25) Select the Random playback mode.

Playbutton Press to start playback.

buttons Press to select the previous or next track.

Stop button Press to stop playback.

buttons Press the Arrow buttons to configure various settings, and then press the ENTER button to set them.

ENTER button Press to set a selected preference.

SEARCH button For MP3 CDs, this button is used to search and select a file number or a folder number.

SETUP button ( →p30) Press to access various settings.

Number buttons Use to enter track numbers.

Open/Close button Press to open and close the disc tray.

DISPLAY button ( →p19) Press to change the displayed information.

REPEAT button ( →p29) Select the repeat playback or 1-repeat playback mode.

buttons Hold down to fast-reverse or fast-forward during playback.

MEMORY button ( →p26) ( →p28) Select the Memory playback mode.

CLEAR button Use to clear any numbers that have been entered during numeric input. When making a memory setting, the selected track is erased.
