A-9030/9050-Cables and Jacks

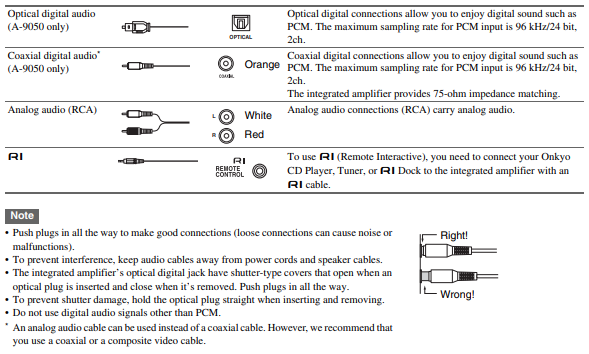

Please review the following for cables and jacks that can be used with the Onkyo A-9030/A-9050 Integrated Amplifier.

NOTE

• The integrated amplifier does not support digital formats other than PCM. Inputting a digital format other than PCM will cause loud noise.
• Using cable ties to bundle audio cables with speaker or power cables may degrade the sound quality, so refrain from doing it.
• Make sure the correct input source is selected.
• Make sure that the RI cable is connected to the integrated amplifier correctly.
  Check that each device is connected correctly and that the RI MODE switch is set correctly.
• The connecting method may vary depending on the device that will be connected. Please refer to the RI connection section in the owner’s manual of the connected device.
