A-9030/9050-Connecting the Power Cord

1. Connect all of your speakers and components

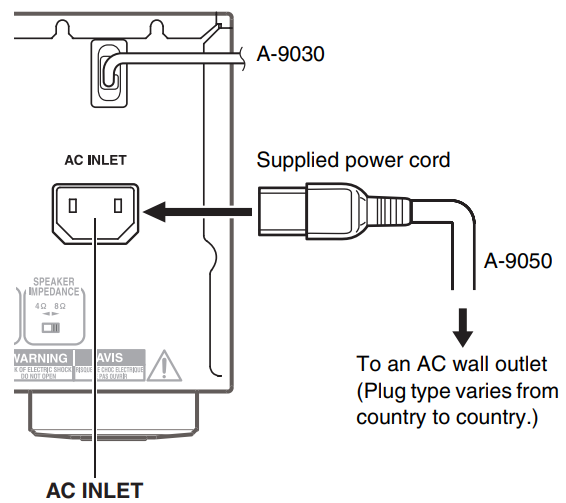

2. Connect the supplied power cord to the integrated amplifier’s AC INLET. (A-9050 only)
3. Plug the power cord into an AC wall outlet

Tip

• To reduce noise, do not tie signal cables together with the power cable
  • Wire them so that they are away from each other
• Depending on the country, the integrated amplifier may be polarity-sensitive. In this case, plug the power cord in a way that provides the best sound quality

Note

• Never disconnect the power cord from the integrated amplifier while the other end is still plugged into a wall outlet as doing so may cause an electric shock
  • Always disconnect the power cord from the wall outlet first, and then the integrated
    amplifier
• Turning on the integrated amplifier may cause a momentary power surge that might interfere with other electrical equipment on the same circuit
  • If this is a problem, plug the integrated amplifier into a different branch circuit
• Do not use a power cord other than the one supplied with the integrated amplifier
  • The supplied power cord is designed exclusively for use with the integrated amplifier and should not be used with any other equipment

If the unit will not turn on:

• Make sure that the power cord is properly plugged into the wall outlet
• Unplug the power cord from the wall outlet, wait 5 seconds or more, then plug it in again
