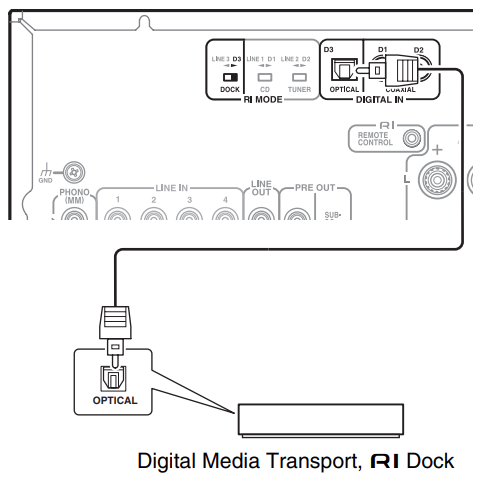

Digital Connection (A-9050 Only)

1. Connect the optical digital cable to the OPTICAL D3 jack
2. Set the RI MODE switch to DOCK D3

TIP

An Onkyo Dock can be connected to the COAXIAL D1 or D2 jack or the OPTICAL D3 jack. However, when using the RI interlock function, be sure to connect the Onkyo Dock to the OPTICAL D3 jack.

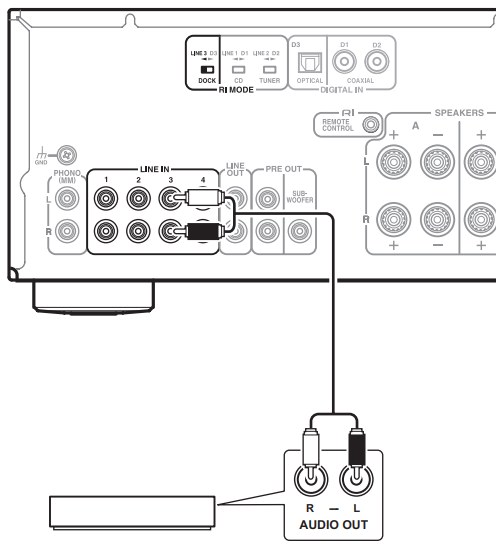

Analog Connection

1. Connect the audio pin cable to the LINE IN 3 jack
2. Set the RI MODE switch to DOCK LINE 3 (A-9050 only)

TIP

An Onkyo Dock can be connected to the LINE IN 1/2/3/4 jack. However, when using the RI interlock function, be sure to connect the Onkyo Dock to the LINE IN 3 jack.
