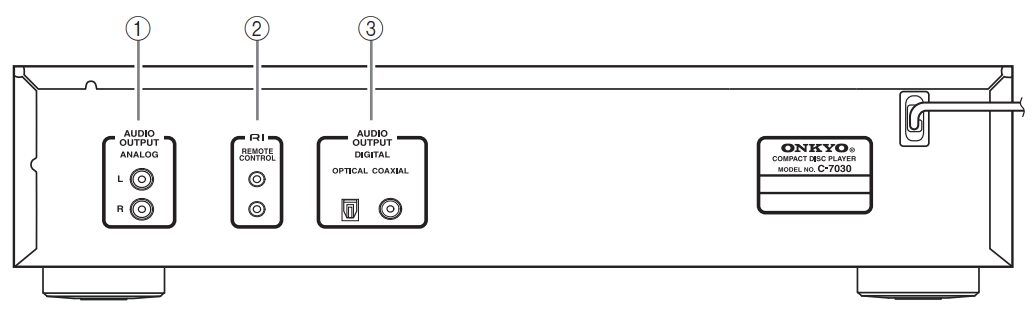

ANALOG AUDIO OUTPUT jacks-These analog audio outputs can be connected to an amplifier’s analog inputs by using the supplied audio cable.
RI REMOTE CONTROL jacks-These two identical RI(Remote Interactive) jacks can be connected to the RI jacks on your other Onkyo components for interactive control. To use RI, the C-7030 must be connected with an RI cable and an audio cable.
DIGITAL AUDIO OUTPUT OPTICAL/COAXIAL jacks-These two digital audio outputs can be connected to a digital audio input on an amplifier or recorder.
