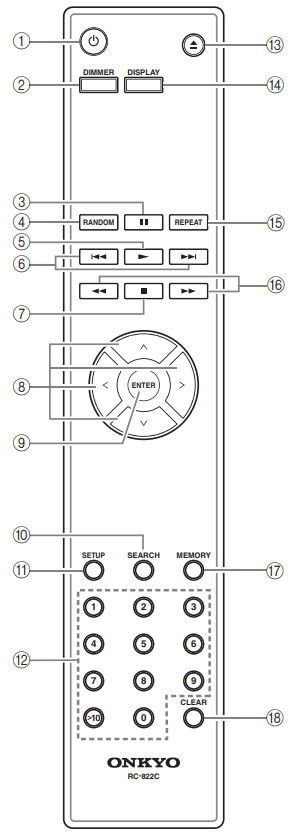

Remote Control Layout

1. Power button-Press to turn on or standby the C-7030.
2. DIMMER button-Press to adjust the display brightness.
3. Pause button-Press to pause playback.
4. RANDOM button-Select the Random playback mode.
5. Play button-Press to start playback.
6. buttons-Press to select the previous or next track.
7. Stop button-Press to stop playback.
8. buttons-Press the Arrow buttons to configure various settings, and then press the ENTER button to set them.  These buttons can be also used to select a track.
9. ENTER button-Press to set a selected preference.
10. SEARCH button-For MP3, WMA CDs, this button is used to search and select a file number or a folder number.
11. SETUP button-Press to access various settings.
12. Number buttons-Use to enter track numbers.
13. Open/Close button-Press to open and close the disc tray.
14. DISPLAY button-Press to change the displayed information.
15. REPEAT button-Select the repeat playback or 1-repeat playback mode.
16. buttons-Hold down to fast-reverse or fast-forward during playback.
17. MEMORY button-Select the Memory playback mode.
18. CLEAR button-Use to clear any numbers that have been entered during numeric input. When making a memory setting, the selected track is erased.

Installing the Batteries

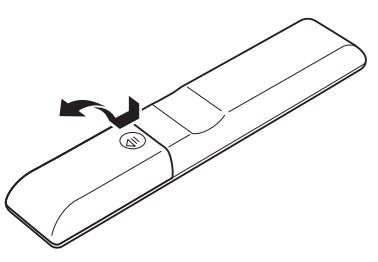

1. To open the battery compartment, press the small hollow and slide open the cover.

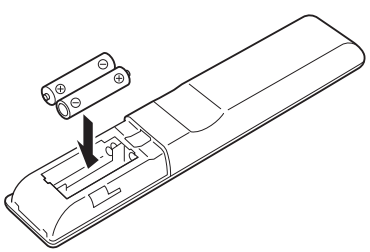

2. Insert two batteries (R03/AAA) into the compartment.  Carefully follow the polarity diagram (positive (+) and negative (–) symbols) inside the battery compartment.  Batteries are not supplied with products for China.

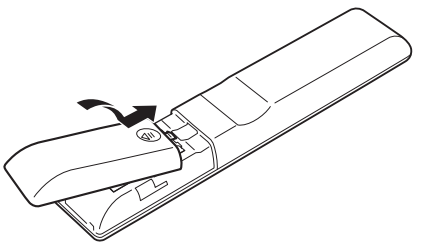

3. Replace the cover and slide it shut.


Note

• If the remote controller doesn’t work reliably, try replacing the batteries.
• Don’t mix new and old batteries or different types of batteries.
• If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.
• Expired batteries should be removed as soon as possible to prevent damage from leakage or corrosion.

Aiming the Controller

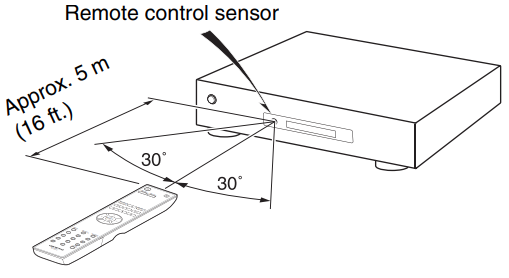

When you operate the remote controller, point it at the CD Player’s remote control sensor, as shown below.

Note

• The remote controller may not work reliably if the CD Player is subjected to bright light, such as direct sunlight or inverter-type fluorescent lights. Keep this in mind when installing.
• If another remote controller of the same type is used in the same room, or the CD Player is installed close to equipment that uses infrared rays, the remote controller may not work reliably.
• Don’t put anything, such as a book, on the remote controller because the buttons may be pressed inadvertently, thereby draining the batteries.
• The remote controller may not work reliably if the CD Player is installed in a rack behind colored glass doors.  Keep this in mind when installing.
• The remote controller will not work if there’s an obstacle between it and CD Player’s remote control sensor.
