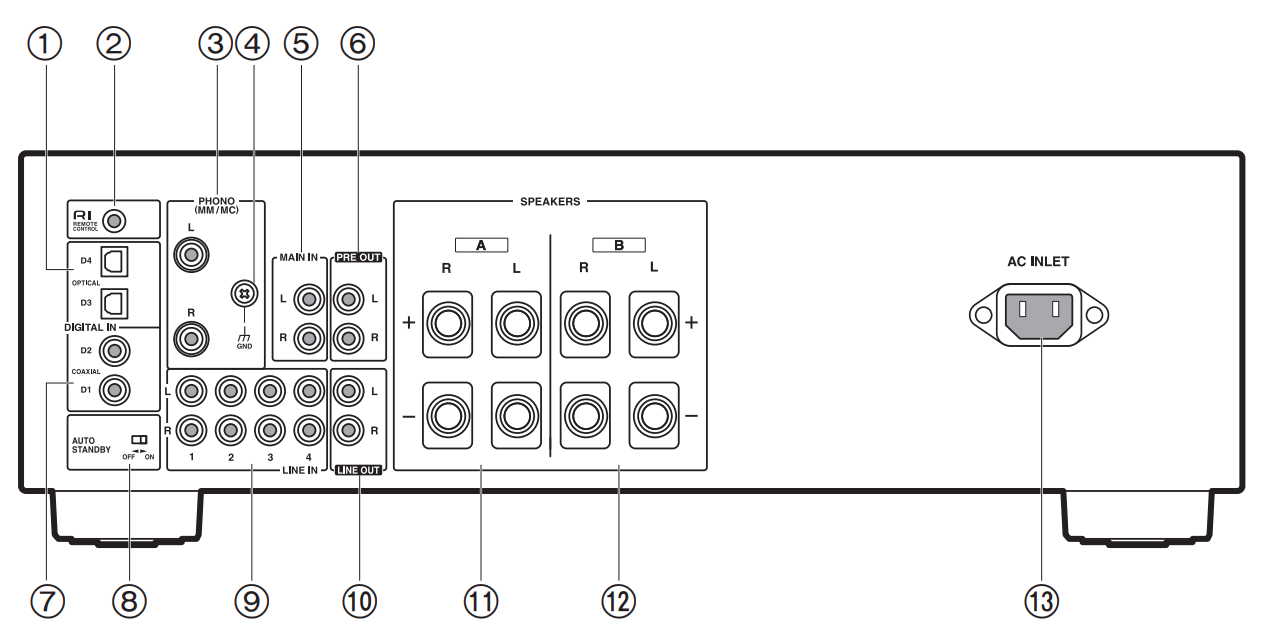

A-9150-Rear Panel


  1. DIGITAL IN OPTICAL D3/D4 Jack
    Connects components such as CD players with optical digital audio output.

  2. REMOTE CONTROL Jack
    Connect Onkyo components such as Network Audio Player, Onkyo Docks, CD Players, or Tuner with (Remote Interactive) jacks.

  3. PHONO (MM/MC) L/R Jacks
    Connect a turntable with analog audio output.

  4. GND screw
    Connects the turntable’s ground wire.

  5. MAIN IN L/R Jacks
    Connect a pre-amplifier when the integrated amplifier is used as a power amplifier.

  6. PRE OUT L/R Jacks
    Connect a power amplifier when the integrated amplifier is used as a preamplifier (Pre mode).

  7. DIGITAL IN COAXIAL D1/D2 Jacks
    Connect components such as CD players with coaxial digital audio output.

  8. AUTO STANDBY Selector
    Switch the auto standby function on or off.

  9. LINE IN 1/2/3/4 L/R Jacks
    Connect playback devices with analog audio output.

  10. LINE OUT L/R Jacks
    Connect components such as analog line-level sources. The input signals are output with no level adjustment.

  11. SPEAKERS A Terminals
    Connect Speakers A.

  12. SPEAKERS B Terminals
    Connect Speakers B.

  13. AC INLET
    Connects the supplied power cord. The other end of the power cord should be connected to a suitable wall outlet.
