1. POWER ON/STANDBY Button
2. PURE AUDIO Button/Indicator: Switches to the Pure Audio mode. The indicator lights when the
   mode is on.
3. HYBRID STANDBY Indicator: Lights up when any of the following functions is working or enabled in standby state of this unit. When this indicator is lighting, the power consumption in standby state increases, however, the increase in power consumption is minimized by entering the HYBRID STANDBY mode where only the essential circuits operate.

   HDMI CEC
   HDMI Standby Through
   USB Power Out at Standby
   Network Standby
   Bluetooth Wakeup


4. Remote control Sensor: Receives signals from the remote controller.

   The reception range of the remote controller is within a distance of approx. 16´/5 m, and
   an angle of 20° in vertical direction and 30° to right and left.


5. ZONE A/B Button: Selects an audio output destination.
6. INFO Button: Switches the information on the display.
7. QUICK MENU Button: Pressing this button during playback can make settings such as "HDMI" and "Audio" quickly on the TV screen while playing.
8. Display
9. SETUP Button: You can display advanced setting items on the TV and the display to have a more enjoyable experience with this unit.
10. Cursor buttons ( ^/v/</> ) and ENTER Button: Select an item with the cursors, and press ENTER to confirm your selection. When using TUNER, use them to tune in to stations.
11. RETURN Button: Returns the display to the previous state while setting
12. MASTER VOLUME



13. PHONES Jack: Connect headphones with a standard plug (ø1/4″/6.3 mm).
14. LISTENING MODE Button: Switches the listening mode by pressing "MOVIE/TV", "MUSIC" and "GAME" repeatedly.
15. Input selector Buttons: Switches the input to be played.
16. TONE CONTROL Button: Adjusts the sound quality. Press </> of "TREBLE", "VOCAL" or "BASS" respectively.
17. SETUP MIC Jack: Connect the supplied speaker setup microphone.

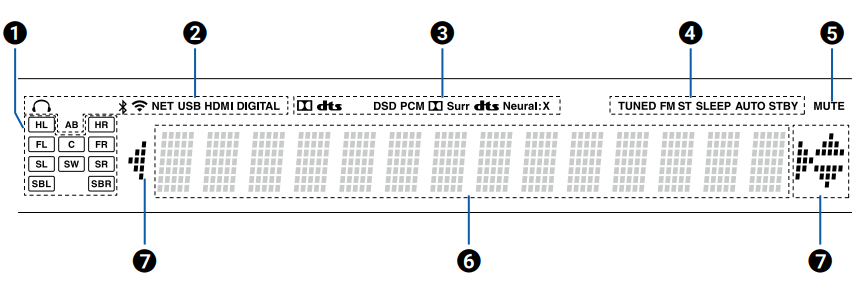

Display

1. Speaker/Channel display: Displays the output channel that corresponds to the selected listening mode.
2. Lights in the following conditions.
   : Headphones are connected.
   : Connected by BLUETOOTH.
   : Connected by Wi-Fi.
   NET: Lights when connected to the network with the "NET" input selector. It will blink if incorrectly
   connected to the network.
   USB: Lights when the "NET" input selector is selected, a USB device is connected and the USB input is selected. It will blink if the USB device is not properly connected.
   HDMI: HDMI signals are input and the HDMI input is selected.
   DIGITAL: Digital signals are input and the digital input is selected.
   A: Audio is output only to ZONE A.
   B: Audio is output only to ZONE B.
   AB: Audio is output to both ZONE A and ZONE B.


3. Lights according to the type of input digital audio signal and the listening mode.
4. Lights in the following conditions:
   TUNED: Receiving AM/FM radio.
   FM ST: Receiving FM stereo.
   SLEEP: Sleep timer is set.
   AUTO STBY: Auto Standby is set.
5. Blinks when muting is on.
6. Displays various information of the input signals.
7. Cursors ( ^/v/</> ): These may light when performing operations while "NET" is selected with the input selector. ^/v light when there are multiple folders or files that are available to be selected. </> light when text information does not fit with the range provided by "6".
