TX-NR5100 - Playback-Basic Operations

You can play the audio from AV components, such as Blu-ray disc players through this unit.

• When a TV is connected to the HDMI OUT SUB jack, use the HDMI MAIN/SUB button or "Quick Menu" to switch between MAIN and SUB.

Perform the following procedure when this unit is on.

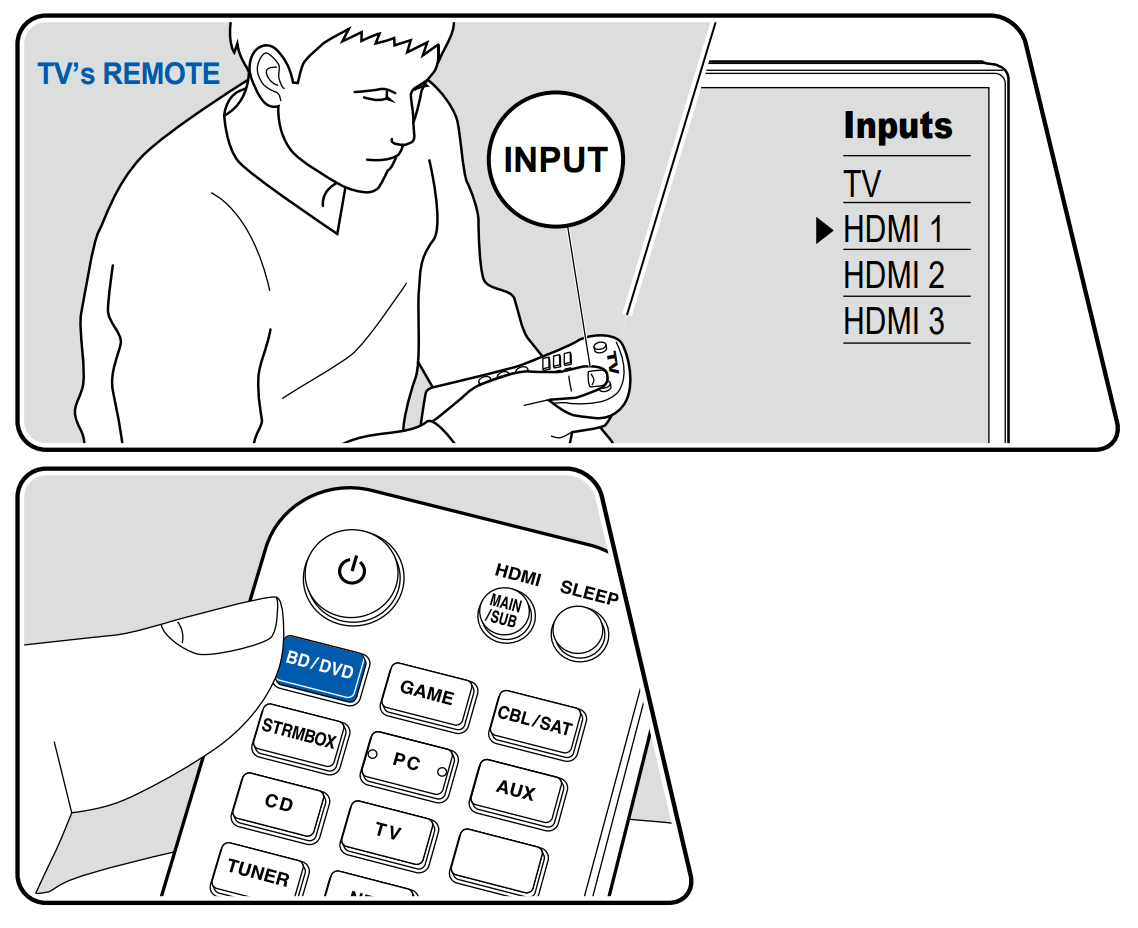

1. Switch the input on the TV to the input connected to the unit.

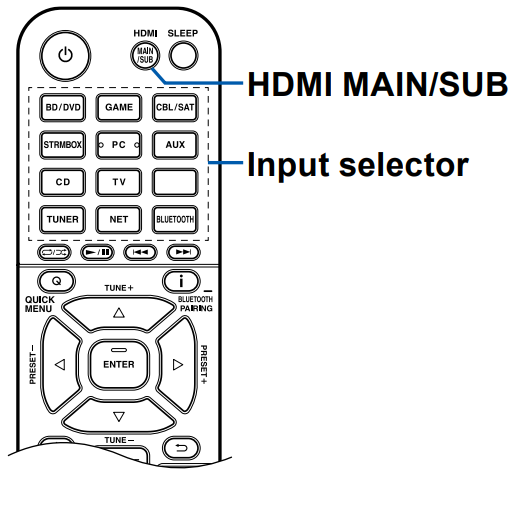

2. Press the input selector whose name is the same as that of the jack to which the player is connected.

   For example, press BD/DVD to play the player connected to the BD/DVD jack. Press TV to listen to the sound of the TV.

   When the CEC link function works, the input switches automatically when a CEC compliant TV or player is connected to this unit using HDMI connection.


3. Start play on the AV component.
