Multiplex/Mono

Change the settings of multiplex audio playback.

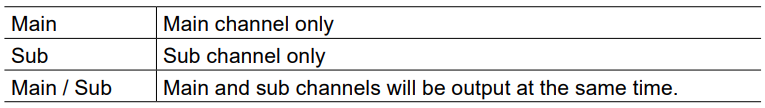

Multiplex Input Channel

Default Value: Main

Set the audio channel or language to be output when playing multiplex audio or multilingual broadcasts, etc.

• For multiplex audio broadcasts, pressing the button on the remote controller will display "1+1" on the main unit’s display

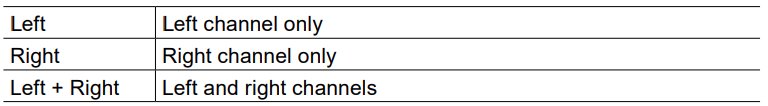

Mono Input Channel

Default Value: Left + Right

Set the input channel when playing back analog or 2 ch PCM signals in the Mono listening mode.

Dolby

Change the setting of when Dolby signals are input.

Loudness Management

Default Value: Off

When playing Dolby TrueHD, enable the dialog normalization function which keeps the volume of dialog at a certain level. Note that when this setting is Off, the Late Night function that allows you to enjoy surround at low volumes is fixed to off when playing Dolby Digital Plus/Dolby TrueHD.

Center Spread

Default Value:  Off

Adjust the width of the front sound field created when playing back with the Dolby Audio - Surr listening mode.

• Depending on the speaker settings, "Off" is applied.

DTS

Change the setting of when DTS signals are input.

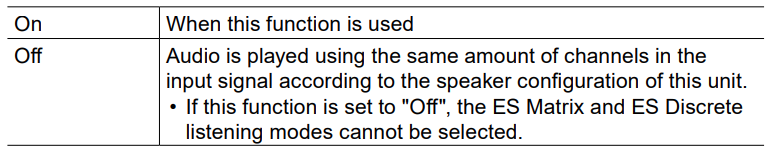

DTS Auto Surround

When inputting DTS signals that include extended channel information, the optimum listening mode is automatically selected according to the extended information contained in the input signal and the speaker configuration of this unit when playing in the straight decoding listening mode.

Dialog Control

Default Value: 0 dB

You can increase the volume of dialog portion of the audio up to 6 dB by 1 dB step so that you can hear the dialog easily in noisy atmosphere.

• This cannot be set for content other than DTS:X.
• Depending on the content, this function may not be selected.

LFE Level

Set the low-frequency effect (LFE) level for Dolby Digital series, DTS series, Multichannel PCM, and DSD signals.

LFE Level

Default Value: 0 dB

Select the low-frequency effect (LFE) level of each signal from "0 dB" to "-∞ dB". If the low-frequency effect sound is too strong, select "-20 dB" or "-∞ dB".

Volume

Change the Volume settings.

Mute Level

Default Value: -∞ dB

Set the volume lowered from the listening volume when muting is on. Select a value from "-∞ dB", "-40 dB", and "-20 dB".

Maximum Volume

Default Value: Off

Set the maximum value to prevent the volume from becoming too loud. Select a value from "Off", and "50" to "99".

Power On Volume

Default Value: Last

Set the volume level of when the power is turned on. Select a value from "Last" (Volume level before entering standby mode), "Min", "0.5" to "99.5" and "Max".

• You cannot set a higher value than that of "Maximum Volume".

Headphone Level

Default Value: 0.0 dB
Adjust the output level of headphones. Select a value between "-12.0 dB" and "+12.0 dB".
