GX-10DB- Basic Operations

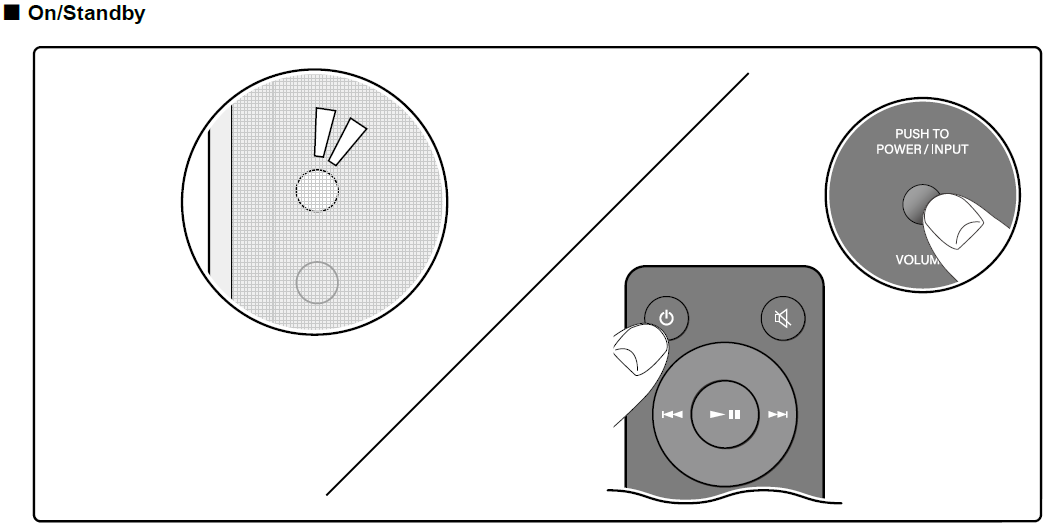

When operating with the remote controller
Press the ON/STANDBY button.
When operating with the main unit
On : Press the POWER/INPUT switch.
Standby : Press and hold the POWER/INPUT switch for three seconds.
Tips
When no signal is detected for 15 minutes or longer, the unit automatically enters the standby mode.

When operating with the remote controller
Press any of the input selector buttons.
When operating with the main unit
Press the POWER/INPUT switch repeatedly.
The color of the LED Source Indicator changes depending on the selected input source.
BLUETOOTH : Blue
USB : White
OPTICAL : Yellow
RCA : Pink

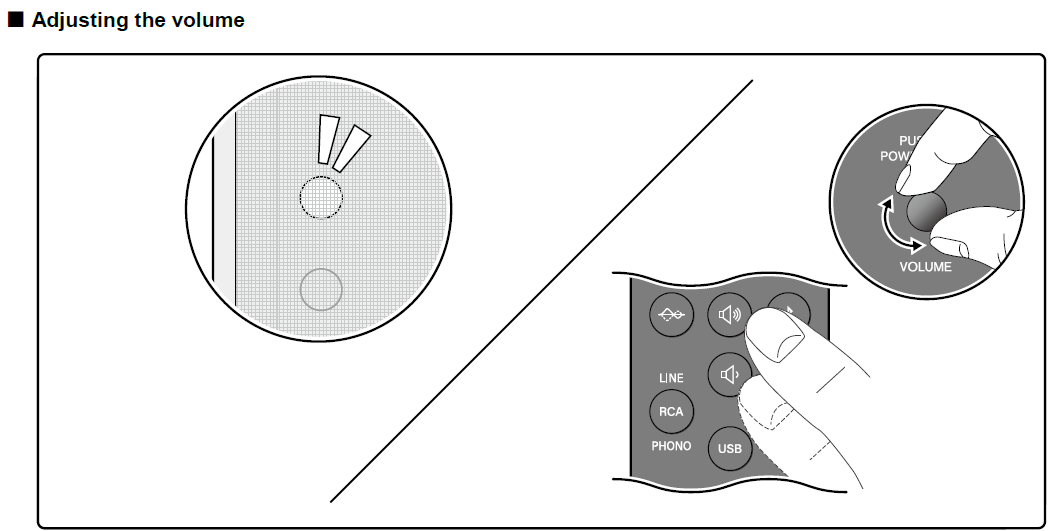

When operating with the remote controller
Press the Volume UP/DOWN buttons.
When operating with the main unit
Turn the VOLUME dial.

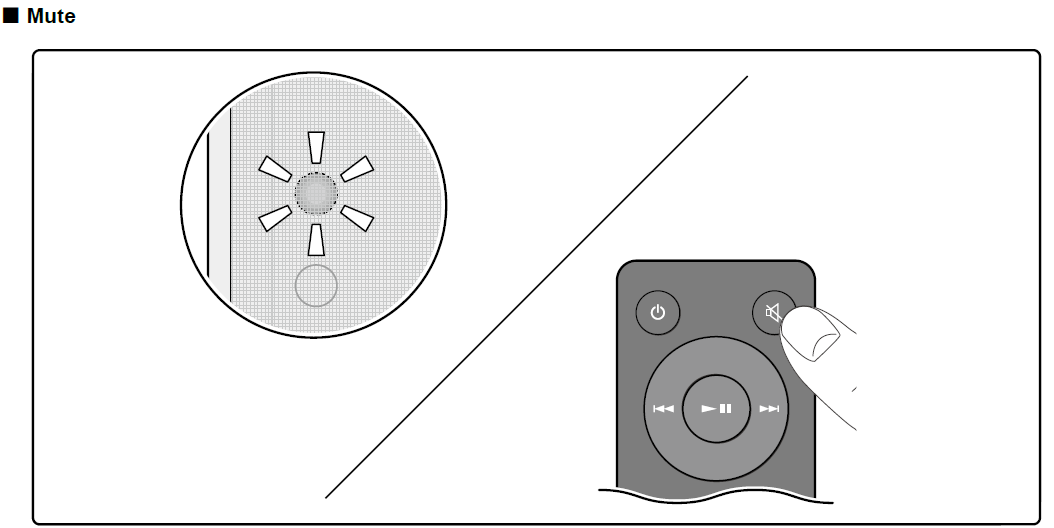

Press the Mute button.
In the mute state, the LED Source Indicator blinks in red.
