GX-30ARC Connections

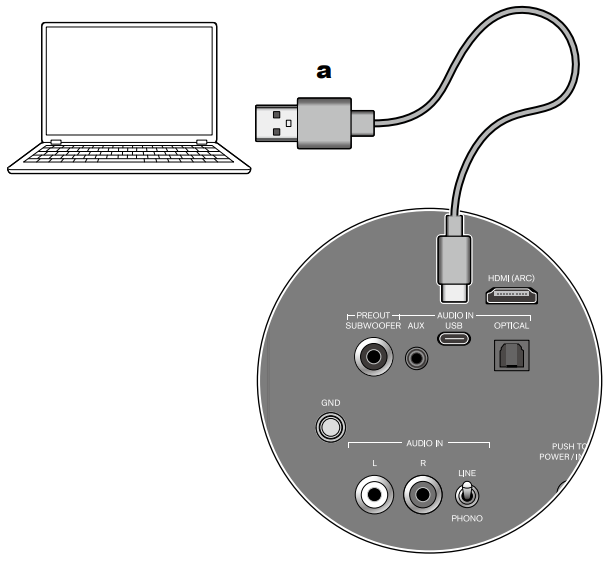

Connecting a PC

a USB cable

Connection location
This unit: AUDIO IN USB terminal (USB Type-C terminal)
Tips
Supported OS: Windows10 or later

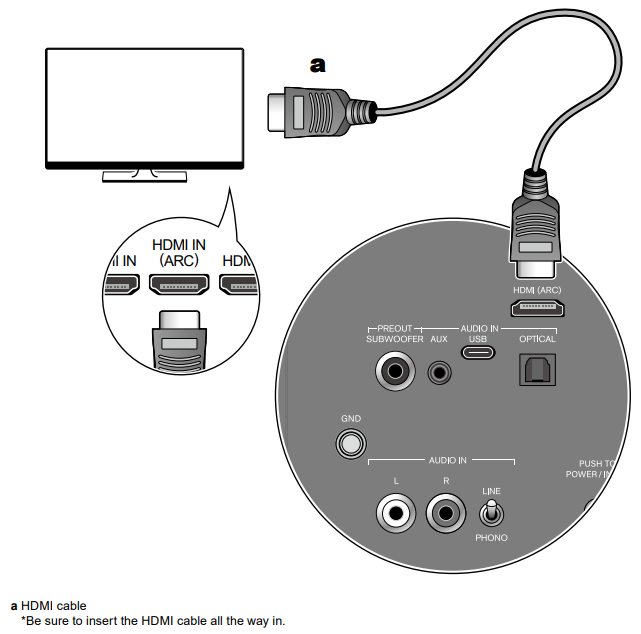

Connecting an ARC-supported TV

Connection location
This unit: HDMI (ARC) terminal
TV: HDMI (ARC) terminal
Tips
The HDMI (ARC) terminal of this unit supports 2-ch PCM signals only. Set the digital audio output setting of the TV to "PCM".

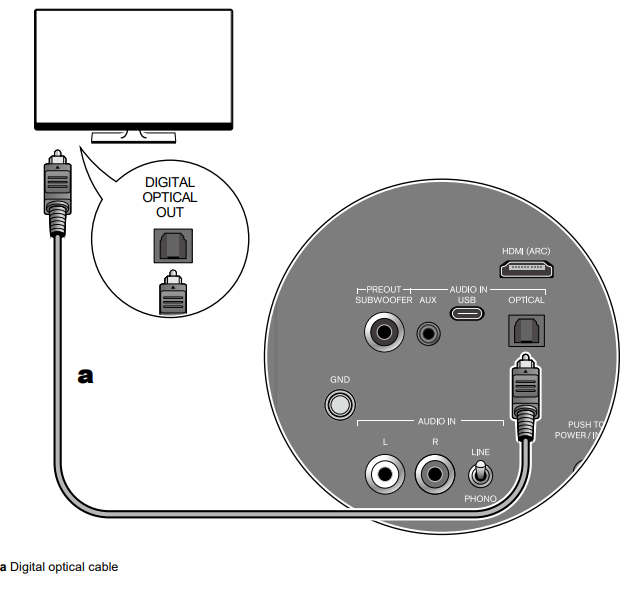

Connecting an ARC-unsupported TV

Connection location
This unit: AUDIO IN OPTICAL terminal
TV: Optical digital output terminal
Tips
The AUDIO IN OPTICAL terminal of this unit supports 2-ch PCM signals only. Set the digital audio output setting of the TV to "PCM".

Connecting a Turntable

Connection location
This unit: AUDIO IN LR terminals (RCA stereo terminals)
*1 When the turntable has a ground wire, connect it to the GND terminal.
*2 When connecting a turntable that does not have a built-in phono equalizer, set the LINE/PHONO selector switch to "PHONO".

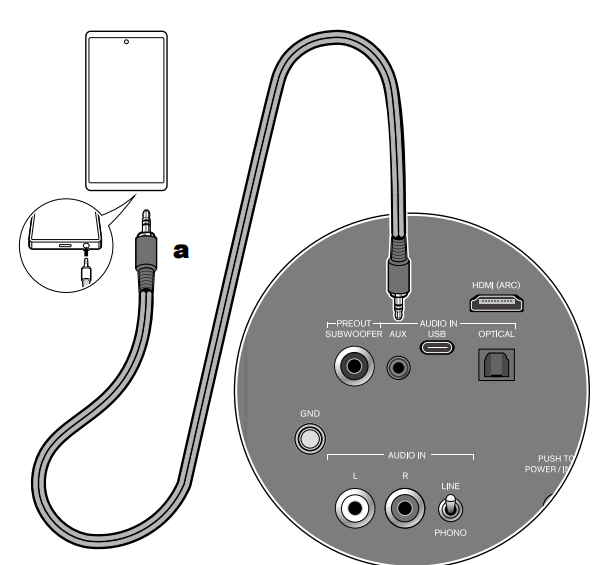

Connecting Devices Using a Stereo Mini Plug Cable

Connection location
This unit: AUDIO IN AUX terminal (φ3.5mm stereo mini plug terminal)
External devices: Headphone terminals of smartphone, PC, digital audio player, etc.

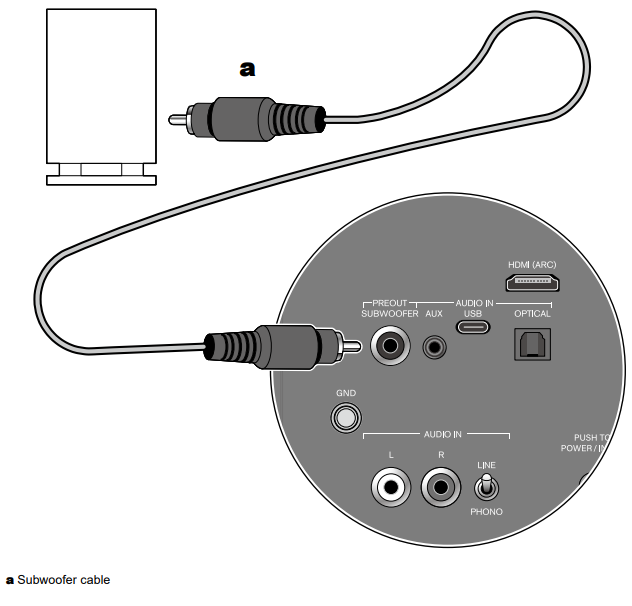

Connecting a Subwoofer

Connection location
This unit: PREOUT SUBWOOFER terminal (RCA monaural terminal)
