GX-30ARC Basic Operations

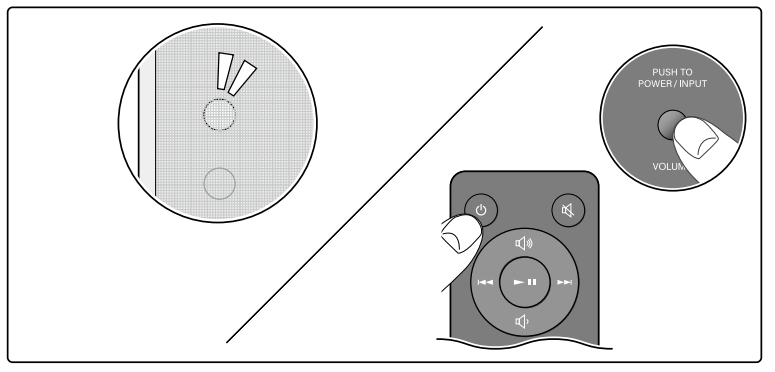

■ On/Standby

When operating with the remote controller
Press the ON/STANDBY button.
When operating with the main unit
On : Press the POWER/INPUT switch.
Standby : Press and hold the POWER/INPUT switch for three seconds.
Tips
When no signal is detected for 15 minutes or longer, the unit automatically enters the standby mode.

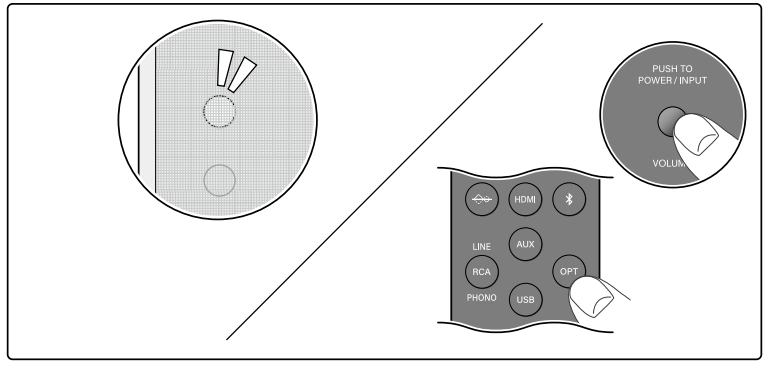

■ Switching the input source

When operating with the remote controller
Press any of the input selector buttons.
When operating with the main unit
Press the POWER/INPUT switch repeatedly.
The color of the LED Source Indicator changes depending on the selected input source.
BLUETOOTH : Blue
HDMI : Green
USB : White
AUX : Amber
OPTICAL : Yellow
RCA : Pink : Green

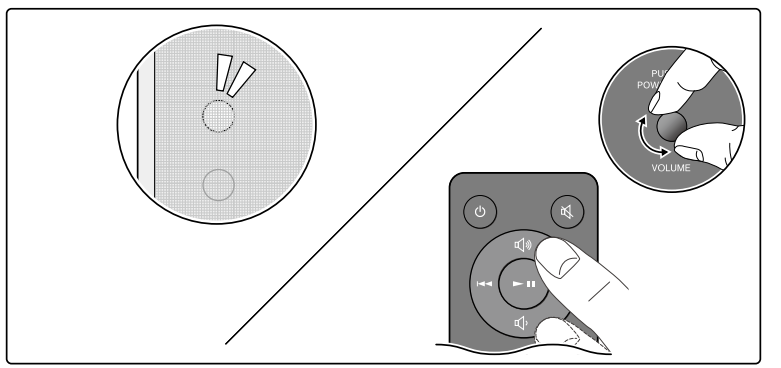

■ Adjusting the volume

When operating with the remote controller
Press the Volume UP/DOWN buttons.
When operating with the main unit
Turn the VOLUME dial.

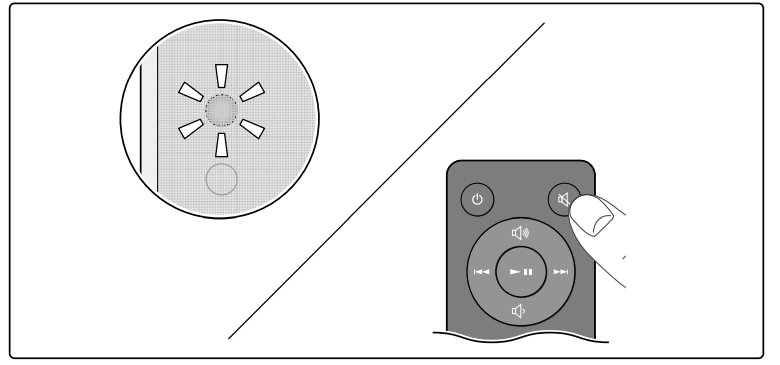

■ Mute

Press the Mute button.
In the mute state, the LED Source Indicator blinks in red.
