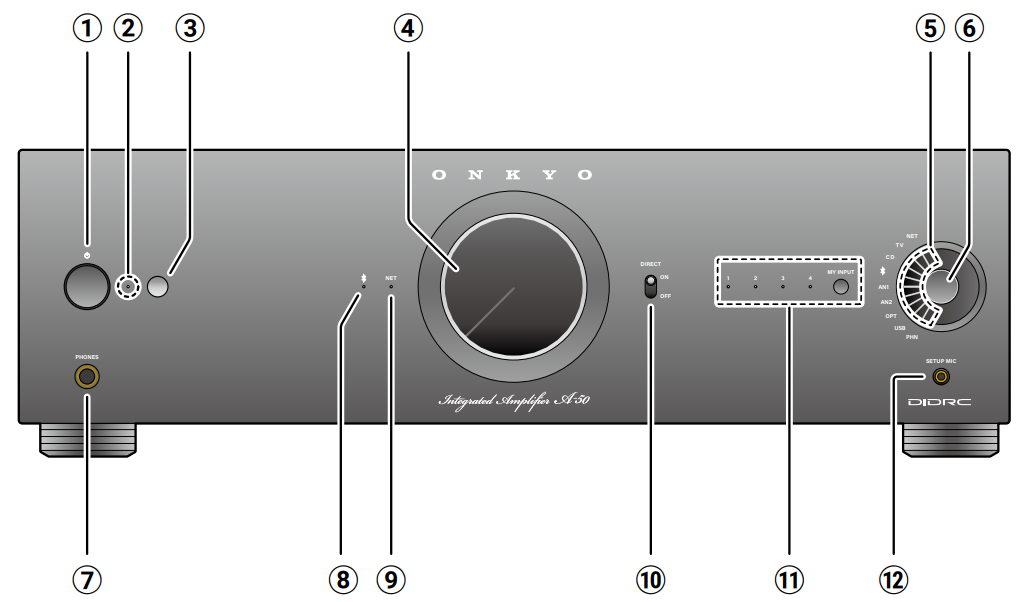

A-50 Front Panel

ON/STANDBY button ( →p17)

Power indicator

Remote control sensor

MASTER VOLUME ( →p18)

Selector indicator

Selector knob ( →p17)

PHONES jack ( →p24)

BLUETOOTH indicator ( →p21)

NET indicator

     ・ When the main unit is connected to the network, the status of this indicator                 changes from blinking to lighting. When the network standby function ( →p38) is             enabled, this indicator is lit even in the standby mode.

DIRECT switch ( →p20)

MY INPUT indicator (→p22)

      MY INPUT button (→p22)

SETUP MIC jack ( →p35)
