A-50 Network settings

Preparation

• First, search for the main unit using the Bluetooth function. Turn on the Bluetooth function of the mobile device.

• The screen of the app and operation procedure may change depending on the version.

1. Turn on the power of the main unit, and wait for approx. 10 seconds until the system starts up completely.

2. Start up Onkyo Controller.

3. Tap "Device Management".

4. Tap the search icon (a) to start searching. When the main unit is found, tap and select it.

5. Enter the password of the wireless LAN router, and tap "Next".

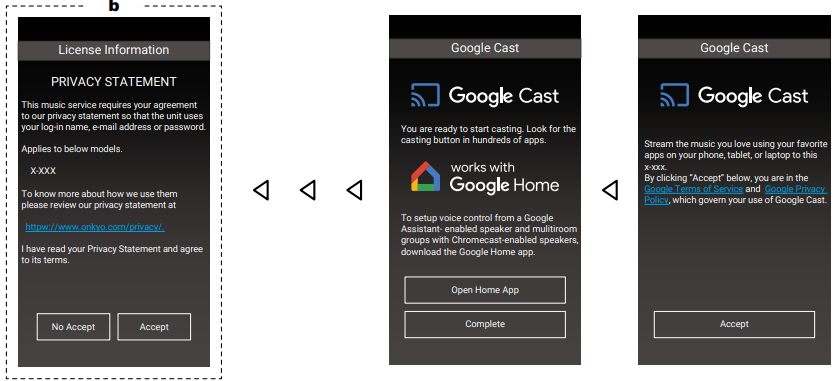

6. After successfully connecting to the wireless LAN router, “Google Cast” will appear. Tap “Accept” to complete the network setup.

Next, you will configure settings such as Google Home and Level Calibration ( →p36).

・At the end of setup, the Privacy Policy (b) will be displayed. To use all services, you must agree to the Privacy Policy.

・To switch between wireless LAN and wired LAN after the initial setup, configure the settings via “Web Setup” – “Network Setting” ( →p41).
