A-50 Connecting Your Speakers

・This unit supports low impedance speakers with impedances of 4Ω to 16Ω.

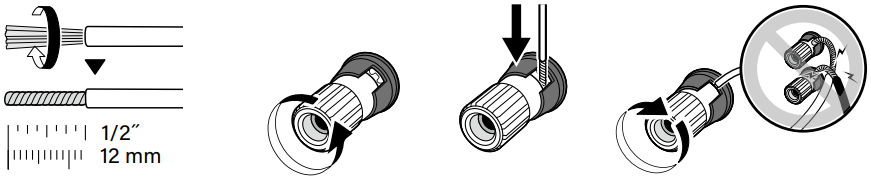

・Firmly twist the core wire of the speaker cable, and insert it to the speaker terminal of     this unit.

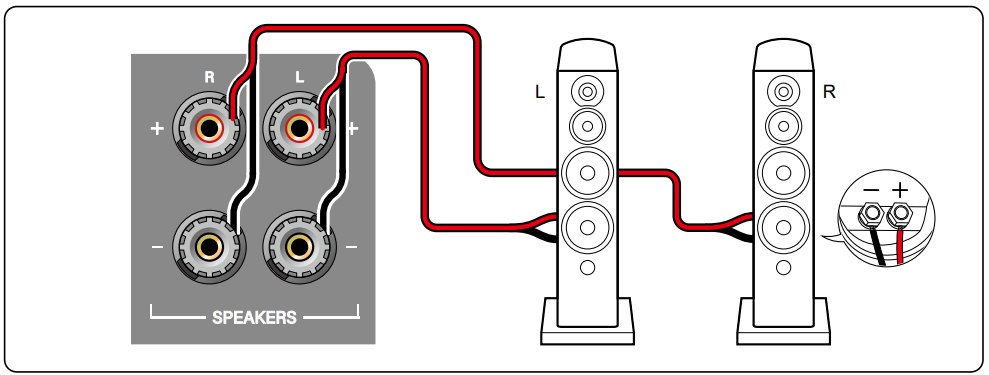

General connection method

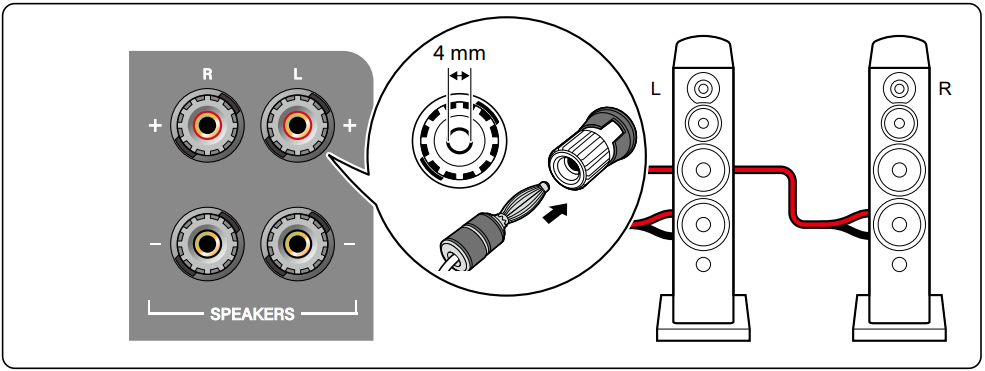

The North America model and Japan model also support connection using banana plugs in addition to the general connection method.
