A-50 Connecting a CD player

Connect a CD player using an analog cable or digital cable (digital optical cable or digital coaxial cable).

Note

DAC (Digital Analog converter) to be used differs depending on the connection method. DAC is an electronic circuit that converts digital signals to analog signals (audio).

■ Analog Connection Connect the CD Player to either of the following jacks: AUDIO IN (CD, ANALOG 1,  ANALOG 2).

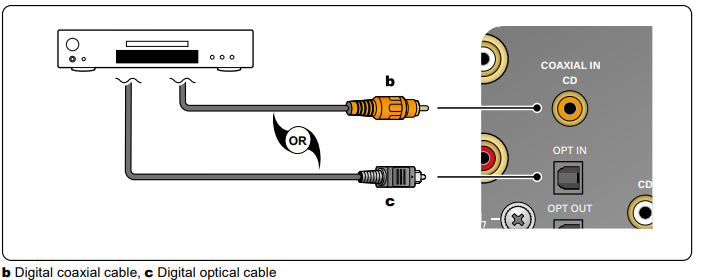

■ Digital Connection (Coaxial or Optical)

・ When audio is input into the AUDIO IN COAXIAL CD jack, the audio of the AUDIO IN CD jack is turned off.
