A-50 Adjusting the Bass, Treble and Balance

You can adjust the bass, treble and left/right output balance respectively.

TREBLE: Enhance or moderate the high pitched range.

BASS: Enhance or moderate the low pitched range.

BALANCE: Adjust the balance of the sounds output from the left and right speakers.

    ・When the DIRECT function ( →p20) is turned on, "TREBLE" and "BASS" are disabled.

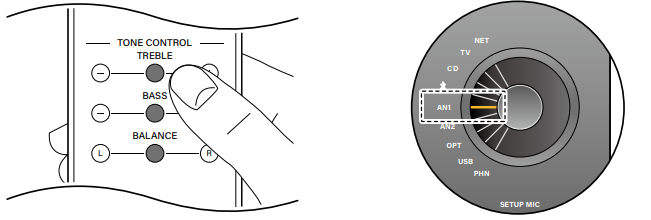

1. Press the TONE CONTROL button ("TREBLE" or "BASS" or "BALANCE") of the remote controller once.

    ・When the adjustment is made for the first time, the indicator of "AN 1" as the point of origin (±0) blinks.

2. Press the "＋/－" button or "L/R" button to adjust the level.

   The level can be adjusted in 10 stages. TREBLE and BASS can be adjusted up to +10 or -10. BALANCE can be        adjusted up to +10 on the R side, or +10 on the L side. When the level adjustment reaches the upper limit, all        displayed indicators blink.

TREBLE, BASS, and BALANCE can also be set using the following operation.

         – Using the Onkyo Controller ( →p33)
